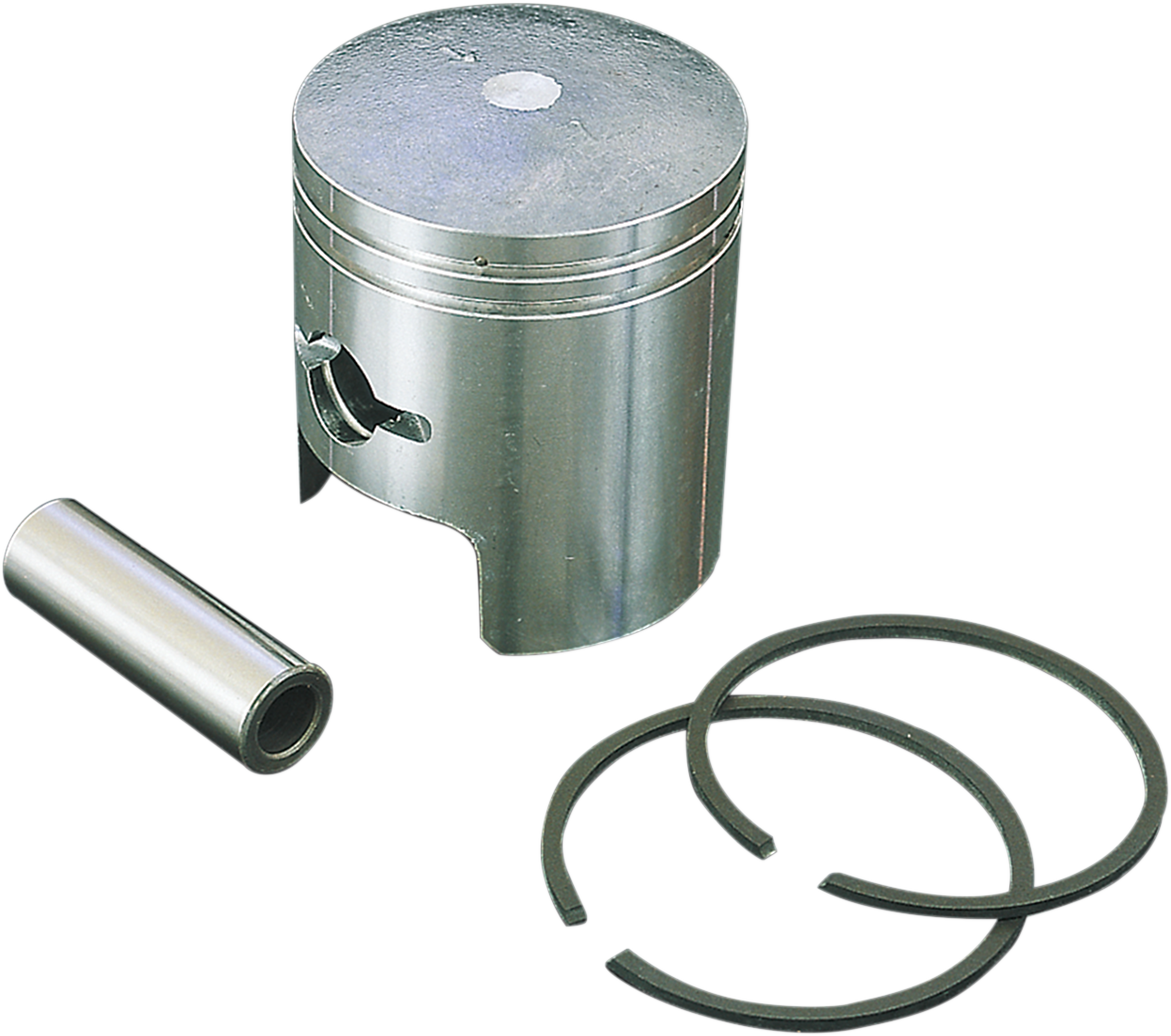

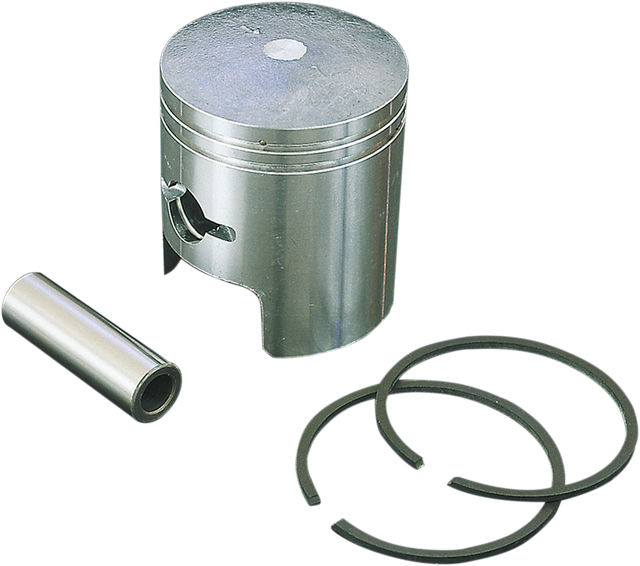

Piston Kit - Standard - Polaris/Fuji 1988 - 2006

SKU: K09-711
$99.99
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

High performance, long life, die-cast pistons

Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls

All pistons, rings, pins and circlips are manufactured to OEM specifications

All individual components will interchange with original parts

PTFE coated to create the least amount of friction during break-in period

All pistons are priced with ring(s), wrist pins and circlips

Chrome plated rings cannot be used in chrome plated or electrofusion liners.

Specification
Bore - Oversize Standard
Bore Oversize Standard
Bore Size 72.00 mm
Displacement 488 cc
Engine Type 2-Stroke
Piston Material Aluminum / Cast
Product Name Piston Kit
Riding Style Snow / ATV
Skirt Coating PTFE
Stroke Length 60.00 mm
Style High Performance
Units Kit

Fitment
MakeModelYear
PolarisIndy 500 Classic1989-2002
PolarisIndy 500 Classic Touring1993-1994
PolarisIndy 500 Classic Touring2001-2003
PolarisIndy 500 EFI1993-1997
PolarisIndy 500 SKS1989-1991
PolarisIndy 500 SKS1995-1997
PolarisIndy 500 SP1989-1992
PolarisIndy 5001989-1991
PolarisIndy 5001995-2000
PolarisTrail Boss 250 4x21988
PolarisIndy 500 Edge2001-2006
PolarisIndy 500 RMK1996-1997
PolarisIndy 500 SKS EFI1992-1996
PolarisIndy 500 SP EFI1992
PolarisIndy 6501989
PolarisIndy 500 Carb1992
PolarisIndy 500 RMK EFI1996
PolarisIndy 650 SKS1989
PolarisTrail Boss 250 R1988

Package Info

PropertyValue
Weight0.88
Height4.12
Length4.25
Width4.12
