ANDREWS

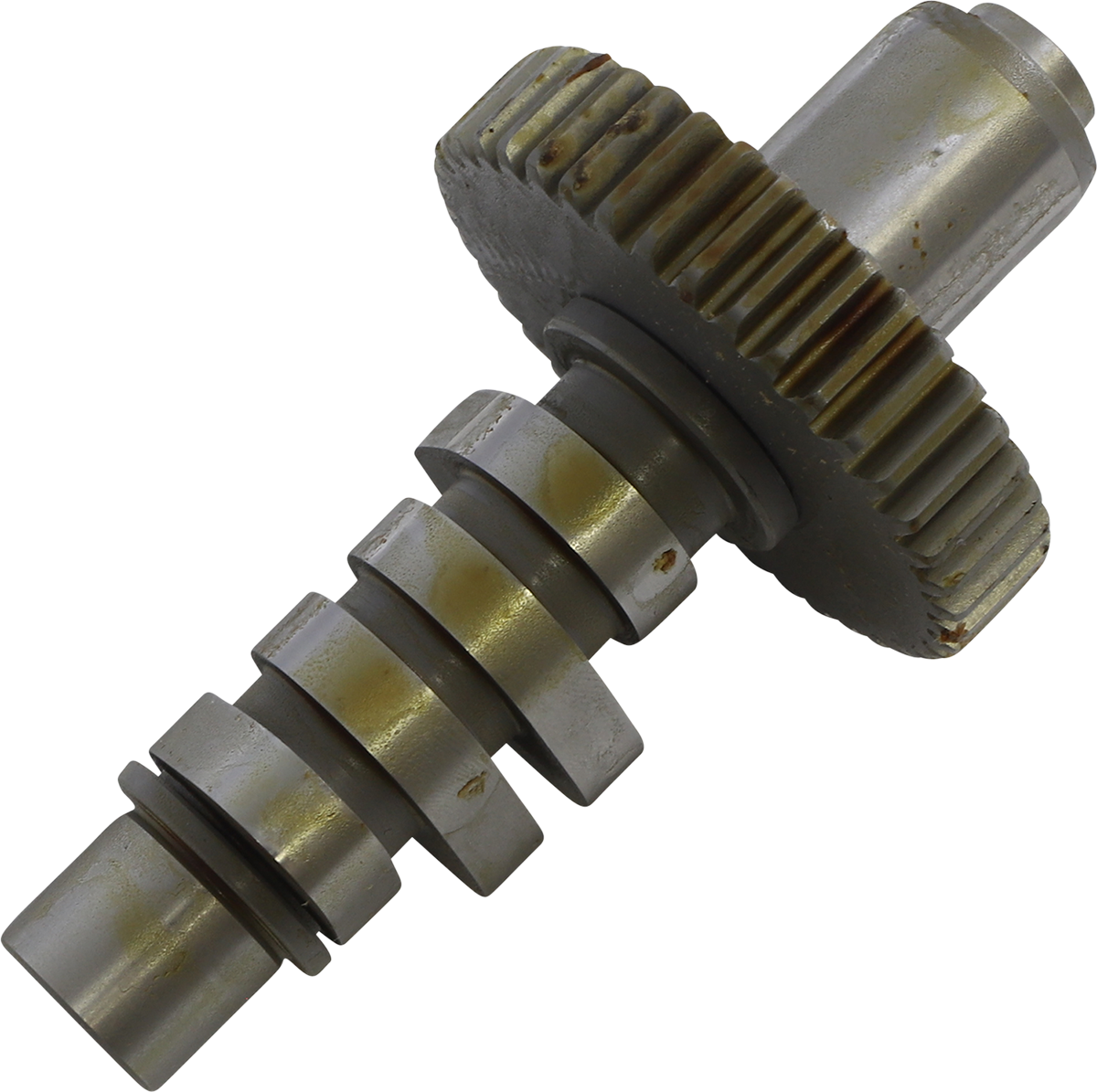

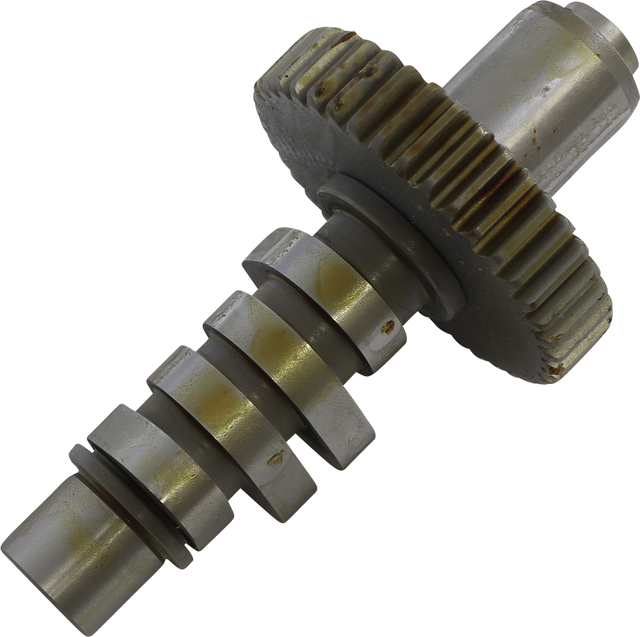

Low-Compression Cam - #2 Grind - Shovelhead 1978 - 1984

SKU: DS-199326
$242.95
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range

Designed for hydraulics, but could be run with solids

Grind #2 offers more power through the rpm range for engines with low-compression pistons; the low-compression sister to a \"B\" grind cam

Made in the USA

On late \'77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late \'77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

Specification
Application Exhaust / Intake
Exhaust Close 15°
Exhaust Duration 230°
Exhaust Lift at TDC Shovel: 0.133\" Pan: 0.133\"
Exhaust Lift Shovel: 0.490\" Pan: 0.512\"
Exhaust Open 35°
Grind #2
Intake Close 35°
Intake Duration 230°
Intake Lift at TDC Shovel: 0.133\" Pan: 0.133\"
Intake Lift Shovel: 0.490\" Pan: 0.512
Intake Open 15°
Product Name Cam
Riding Style Street
Units Each

Fitment
MakeModelYear
Harley-DavidsonSport Glide FXRT1983
Harley-DavidsonSuper Glide II FXR1982-1983
Harley-DavidsonSuper Glide II FXRS1982-1983
Harley-DavidsonTour Glide FLT1980-1983
Harley-DavidsonElectra Glide Sport FLHS1980-1982
Harley-DavidsonTour Glide Classic FLTC1980-1983
Harley-DavidsonLow Rider FXSB1983-1984
Harley-DavidsonLow Rider FXS1979-1982
Harley-DavidsonWide Glide FXWG1980-1984
Harley-DavidsonElectra Glide FLH1978-1984
Harley-Davidson1200 Super Glide FX1978
Harley-Davidson1200 Electra Glide FLH1980
Harley-DavidsonFat Bob FXEF1979-1981
Harley-DavidsonSturgis FXB1980-1982
Harley-Davidson1200 Super Glide FXE1978-1980
Harley-DavidsonSuper Glide 80 FXE1979-1984
Harley-DavidsonElectra Glide Heritage FLH1981
Harley-Davidson1200 Low Rider FXS1978-1979
Harley-DavidsonDisc Glide FXDG1983
Harley-DavidsonElectra Glide FL1978-1980
Harley-DavidsonElectra Glide Classic FLH1981-1982
Harley-Davidson1200 Fat Bob FXEF1979-1980
Harley-DavidsonElectra Glide Special FLHX1984
Harley-DavidsonElectra Glide Classic FLHTC1983
Harley-DavidsonElectra Glide Standard FLHT1983

Package Info

PropertyValue
Weight1.9
Height3.28
Length6.13
Width3.8
