Hi-Load Trailer Harness 2009 - 2013
SKU: 3902-0083Select a vehicle to ensure fitment.
Hi-Load Trailer Harness 2009 - 2013 is backordered and will ship as soon as it is back in stock.
Free shipping over $50!
Free shipping over $50!
free shipping to all orders over $50 to USA 48 states only.
Check if you qualify for the GIVE-AWAY !
Check if you qualify for the GIVE-AWAY !
On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More
USA based customer service
USA based customer service
Call : 551-341-9472
PRODUCT DETAILS
Description
Description

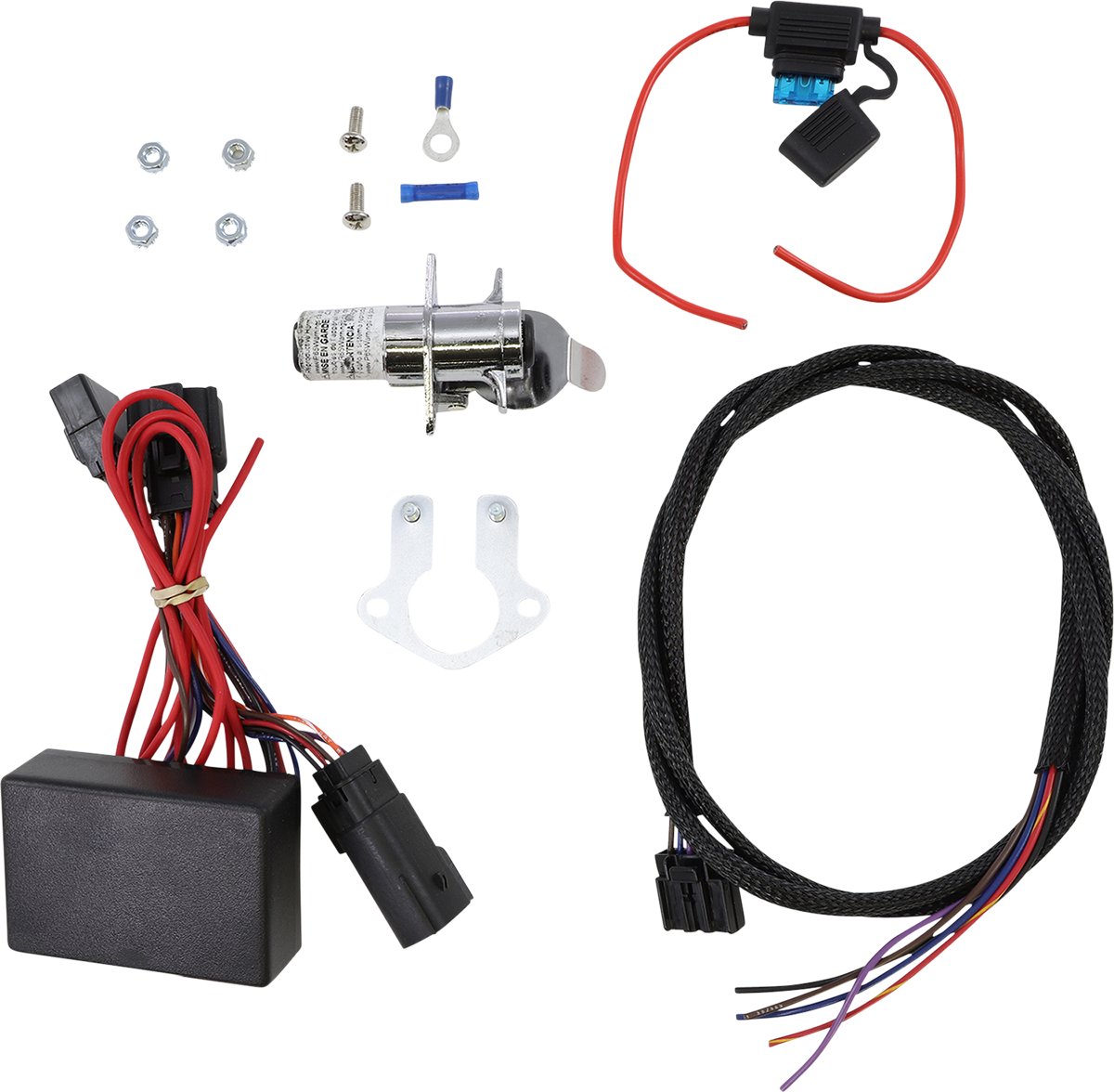

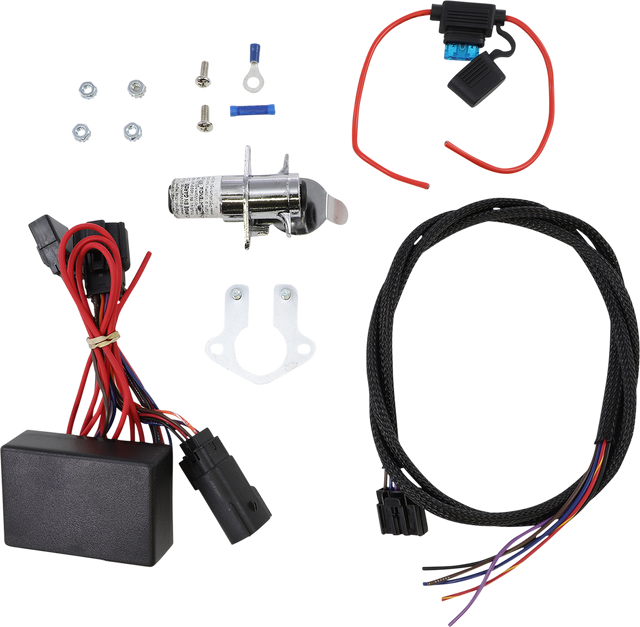

To be used with current Khrome Werks trailer hitches
Plug-and-play 56\" wiring harness features an isolator module with a fused, separate circuit from battery positive to power the trailer lighting; works through built-in relays and prevents overloading of factory-lighting circuit
5-pin, die-cast, automotive style connector
Mounts using mounting bracket that bolts directly to the safety chain bracket on current production Khrome Werks trailer hitches
An isolator is a must for \'09 and later Harleys pulling trailers with conventional incandescent lighting (higher amperage requirements than trailers with LED lighting)
Made in the U.S.A.
AMP Multilock plugs
15 amp fuse/holder, butt connector and ring terminal
Specification
Specification
Fitment
Fitment
| Make | Model | Year |
|---|---|---|
| Harley-Davidson | CVO Road Glide Custom FLTRXSE | 2012 |
| Harley-Davidson | CVO Street Glide FLHXSE3 | 2012 |
| Harley-Davidson | CVO Road Glide FLTRSE3 | 2009 |
| Harley-Davidson | CVO Street Glide FLHXSE | 2010 |
| Harley-Davidson | CVO Street Glide FLHXSE2 | 2011 |
| Harley-Davidson | CVO Road Glide Custom FLTRXSE2 | 2013 |
Package Info
Package Info
| Property | Value |
|---|---|
| Weight | 1.35 |
| Height | 3.34 |
| Length | 9.05 |
| Width | 6.53 |
