Vented Dipstick - Polished 2006 - 2017

Billet dipsticks vent/breathe excessive crank case pressure from the oil tank through a PCV style breather, consisting of an oil separator system, perforated disc, replaceable filter element and umbrella flapper valve

Screws into the factory oil fill spout as a stock replacement part

Blowby is pressure that is forced past the rings and cylinders, pushed into the crankcase and then forced into the oil tank

Fueling test results show a decrease in engine oil sump levels, more freely/smoothe revving engine and increased MPG and decreased blowby

Removes unwanted build-up of blow by pressure in the oil tank

There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) Full Hot Stand or the bike upright and level (FHU) Full Hot Upright

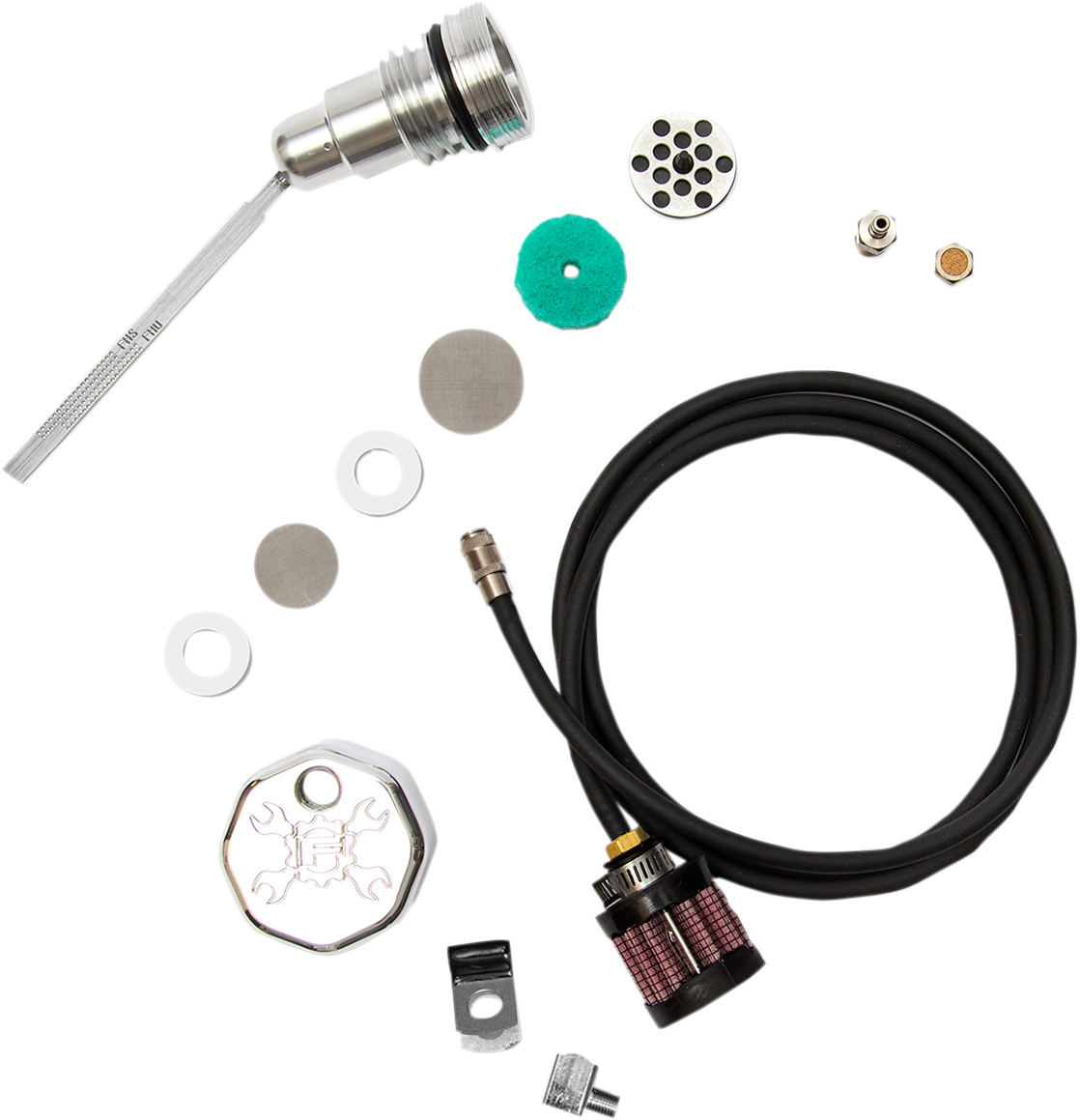

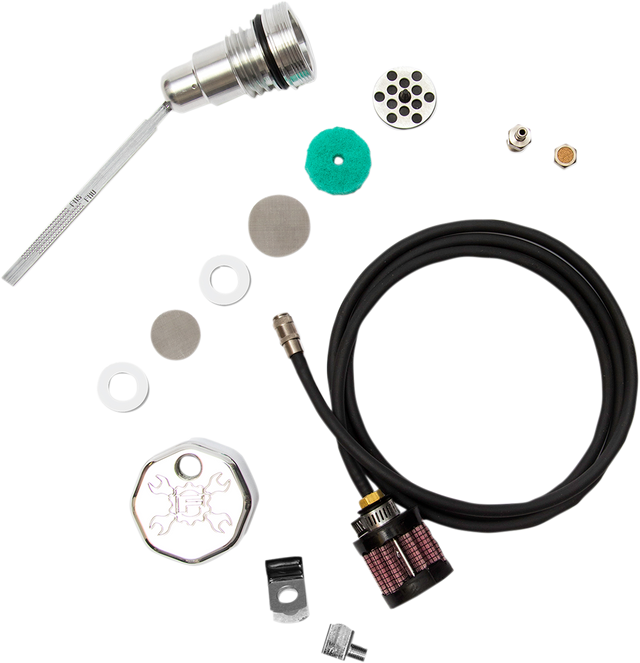

Includes 2 different venting style options for installing the dipstick: option 1 - 1/8 NPT breather vent fitting with internal porous filter element, option 2 - quick disconnect coupler fitting with rubber hose and filter element

It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot

The oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank

Made in the USA

This dipstick does get hot, use a glove when checking oil level.
