S&S CYCLE

Camshaft Kit - 583G - Gear Drive - Twin Cam 1999 - 2006

SKU: 0925-0744
$948.95
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

Reverses the rear cam\'s direction of rotation, providing additional operating clearance between cam lobes, making higher cam lifts possible

Increase valve timing accuracy by eliminating timing chain lash and loosely fit stock chain

Provides strong low end torque and horsepower

Strongest from 1500-5000 rpm

Material must be removed from inner surface of the stock gear cover to install

A hydraulic press and other professional level tools are required for installation

Cam bearings and gaskets must be replaced

S&S recommends that adjustable pushrod/cover kit be used (sold separately)

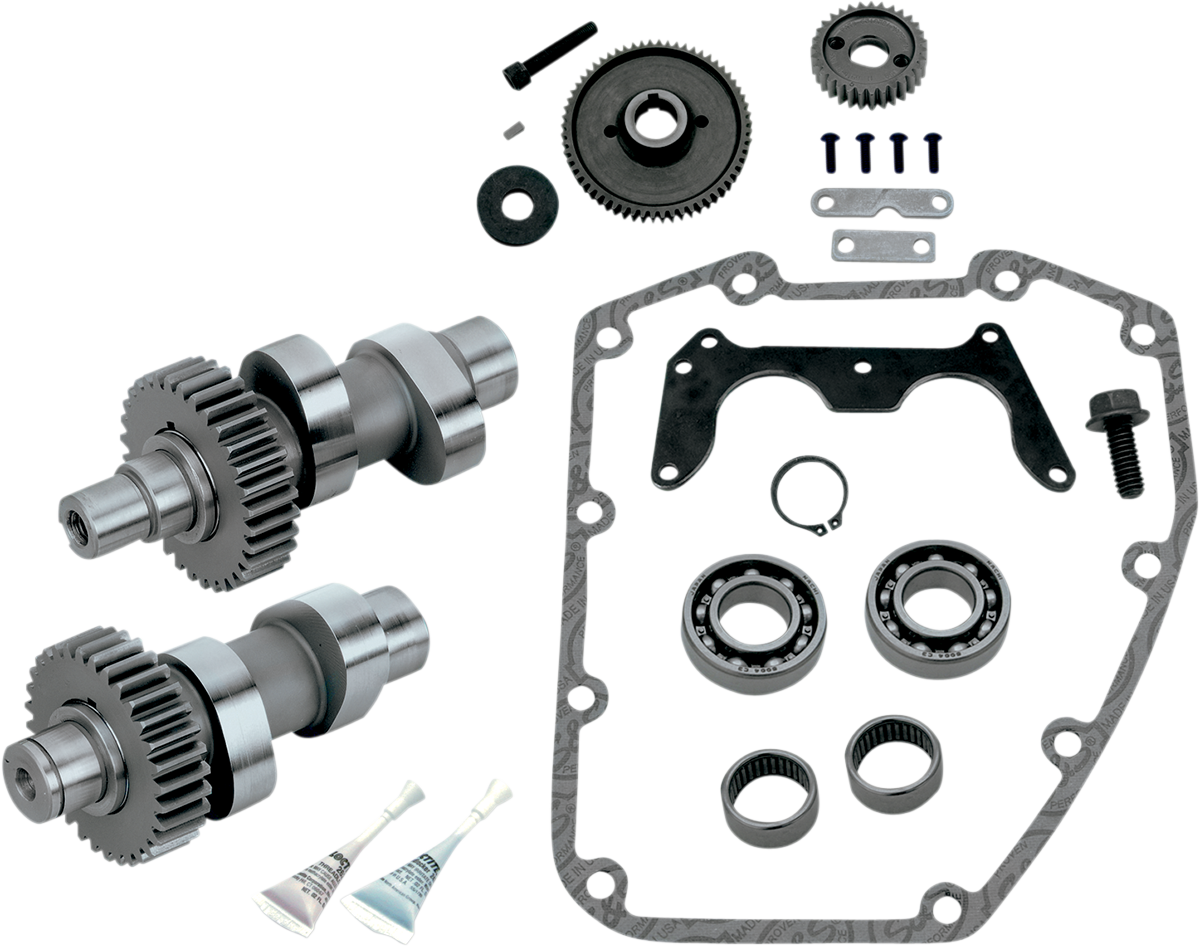

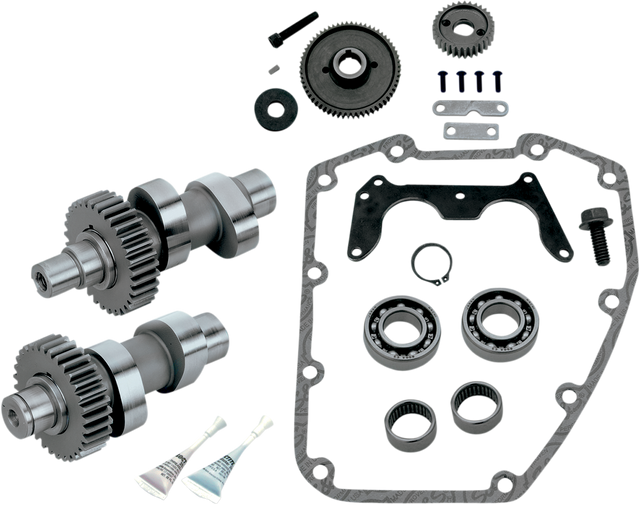

Kit includes camshafts, inner gears, outer drive gears, inner, outer bearings, gasket and instructions

Made in the USA

Due to inherent characteristics of gear drives, more valve train noise maybe heard.

Installer must check coil bind, valve to valve clearance and valve to piston clearance.

Not recommended for engines having compression ratios greater the 10.1:1

Specification
Application Intake / Exhaust
Exhaust Close 24°
Exhaust Duration 262°
Exhaust Lift at TDC 0.206\"
Exhaust Lift 0.583\"
Exhaust Lobe Centerline 107°
Exhaust Open 58°
Grind 583 Series
Intake Close 18°
Intake Duration 203°
Intake Lift at TDC 0.113\"
Intake Lift 0.583\"
Intake Lobe Centerline 96.5°
Intake Open 5°
Product Name Camshaft Kit
Riding Style Street
Type Gear
Units Kit

Fitment
MakeModelYear
Harley-DavidsonSoftail Heritage Classic EFI FLSTCI2004-2006
Harley-DavidsonSoftail Heritage Classic EFI FLSTCI2001
Harley-DavidsonSoftail Heritage Classic EFI FLSTCI2003
Harley-DavidsonSoftail Heritage Classic EFI FLSTCI2002
Harley-DavidsonElectra Glide Classic EFI FLHTCI2000
Harley-DavidsonElectra Glide Classic EFI FLHTCI1999
Harley-DavidsonElectra Glide Classic EFI FLHTCI2002
Harley-DavidsonElectra Glide Classic EFI FLHTCI2005
Harley-DavidsonElectra Glide Classic EFI FLHTCI2004
Harley-DavidsonElectra Glide Classic EFI FLHTCI2001
Harley-DavidsonElectra Glide Classic EFI FLHTCI2006
Harley-DavidsonElectra Glide Classic EFI FLHTCI2003
Harley-DavidsonSuper Glide FXD2002
Harley-DavidsonSuper Glide FXD2001
Harley-DavidsonSuper Glide FXD2000
Harley-DavidsonSuper Glide FXD2005
Harley-DavidsonSuper Glide FXD2003-2004
Harley-DavidsonSuper Glide FXD1999
Harley-DavidsonElectra Glide Standard FLHT2000
Harley-DavidsonElectra Glide Standard FLHT2002
Harley-DavidsonElectra Glide Standard FLHT1999
Harley-DavidsonElectra Glide Standard FLHT2006
Harley-DavidsonElectra Glide Standard FLHT2003
Harley-DavidsonElectra Glide Standard FLHT2001
Harley-DavidsonElectra Glide Standard FLHT2005
Harley-DavidsonElectra Glide Standard FLHT2004
Harley-DavidsonSoftail Night Train FXSTB2005
Harley-DavidsonSoftail Night Train FXSTB2001
Harley-DavidsonSoftail Night Train FXSTB2004
Harley-DavidsonSoftail Night Train FXSTB2002
Harley-DavidsonSoftail Night Train FXSTB2006
Harley-DavidsonSoftail Night Train FXSTB2003
Harley-DavidsonSoftail Night Train FXSTB2000
Harley-DavidsonElectra Glide Classic FLHTC2004-2005
Harley-DavidsonElectra Glide Classic FLHTC2001-2003
Harley-DavidsonElectra Glide Classic FLHTC2000
Harley-DavidsonElectra Glide Classic FLHTC1999
Harley-DavidsonRoad King FLHR2002
Harley-DavidsonRoad King FLHR2001
Harley-DavidsonRoad King FLHR2005
Harley-DavidsonRoad King FLHR2003-2004
Harley-DavidsonRoad King FLHR2000
Harley-DavidsonRoad King FLHR2006
Harley-DavidsonRoad King FLHR1999
Harley-DavidsonRoad King Custom FLHRS2006
Harley-DavidsonRoad King Custom FLHRS2005
Harley-DavidsonRoad King Custom FLHRS2004
Harley-DavidsonSoftail Standard EFI FXSTI2004
Harley-DavidsonSoftail Standard EFI FXSTI2006
Harley-DavidsonSoftail Standard EFI FXSTI2001
Harley-DavidsonSoftail Standard EFI FXSTI2005
Harley-DavidsonSoftail Standard EFI FXSTI2002-2003
Harley-DavidsonSoftail Heritage EFI FLSTI2006
Harley-DavidsonSoftail Springer Classic FLSTSC2005-2006
Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI2006
Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI2003
Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI1999
Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI2004
Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI2002
Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI2001
Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI2005
Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI2000
Harley-DavidsonRoad Glide FLTR2000-2001
Harley-DavidsonRoad Glide FLTR1999
Harley-DavidsonRoad Glide FLTR2002
Harley-DavidsonSuper Glide Sport FXDX2002
Harley-DavidsonSuper Glide Sport FXDX2004
Harley-DavidsonSuper Glide Sport FXDX2001
Harley-DavidsonSuper Glide Sport FXDX2005
Harley-DavidsonSuper Glide Sport FXDX2003
Harley-DavidsonSuper Glide Sport FXDX2000
Harley-DavidsonSuper Glide Sport FXDX1999
Harley-DavidsonStreet Glide FLHX2006
Harley-DavidsonSoftail Night Train EFI FXSTBI2003
Harley-DavidsonSoftail Night Train EFI FXSTBI2005-2006
Harley-DavidsonSoftail Night Train EFI FXSTBI2001-2002
Harley-DavidsonSoftail Night Train EFI FXSTBI2004
Harley-DavidsonSuper Glide T-Sport FXDXT2001
Harley-DavidsonSuper Glide T-Sport FXDXT2003
Harley-DavidsonSuper Glide T-Sport FXDXT2002
Harley-DavidsonSoftail Springer EFI FXSTSI2006
Harley-DavidsonSoftail Springer EFI FXSTSI2002
Harley-DavidsonSoftail Springer EFI FXSTSI2001
Harley-DavidsonSoftail Springer EFI FXSTSI2004-2005
Harley-DavidsonSoftail Springer EFI FXSTSI2003
Harley-DavidsonSoftail Springer FXSTS2006
Harley-DavidsonSoftail Springer FXSTS2004
Harley-DavidsonSoftail Springer FXSTS2002
Harley-DavidsonSoftail Springer FXSTS2000
Harley-DavidsonSoftail Springer FXSTS2003
Harley-DavidsonSoftail Springer FXSTS2005
Harley-DavidsonSoftail Springer FXSTS2001
Harley-DavidsonWide Glide FXDWG2001
Harley-DavidsonWide Glide FXDWG2004
Harley-DavidsonWide Glide FXDWG2002
Harley-DavidsonWide Glide FXDWG2000
Harley-DavidsonWide Glide FXDWG2005
Harley-DavidsonWide Glide FXDWG2003
Harley-DavidsonWide Glide FXDWG1999
Harley-DavidsonRoad King Custom EFI FLHRS2006
Harley-DavidsonRoad King Custom EFI FLHRS2005
Harley-DavidsonRoad King Custom EFI FLHRS2004
Harley-DavidsonRoad King Classic EFI FLHRC2003
Harley-DavidsonRoad King Classic EFI FLHRC2006
Harley-DavidsonRoad King Classic EFI FLHRC2004
Harley-DavidsonRoad King Classic EFI FLHRC2000
Harley-DavidsonRoad King Classic EFI FLHRC2005
Harley-DavidsonRoad King Classic EFI FLHRC2001-2002
Harley-DavidsonRoad King Classic EFI FLHRC1999
Harley-DavidsonLow Rider FXDL2003
Harley-DavidsonLow Rider FXDL2000
Harley-DavidsonLow Rider FXDL2004
Harley-DavidsonLow Rider FXDL2001
Harley-DavidsonLow Rider FXDL2005
Harley-DavidsonLow Rider FXDL2002
Harley-DavidsonLow Rider FXDL1999
Harley-DavidsonSuper Glide EFI FXDI2004-2005
Harley-DavidsonDyna Convertible FXDS-CONV2000
Harley-DavidsonDyna Convertible FXDS-CONV1999
Harley-DavidsonSuper Glide Custom EFI FXDCI2005
Harley-DavidsonSuper Glide Sport EFI FXDXI2005
Harley-DavidsonSuper Glide Sport EFI FXDXI2004
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1999
Harley-DavidsonSoftail Standard FXST2001-2002
Harley-DavidsonSoftail Standard FXST2006
Harley-DavidsonSoftail Standard FXST2004
Harley-DavidsonSoftail Standard FXST2003
Harley-DavidsonSoftail Standard FXST2005
Harley-DavidsonSoftail Standard FXST2000
Harley-DavidsonSoftail Deuce FXSTD2005
Harley-DavidsonSoftail Deuce FXSTD2001-2004
Harley-DavidsonSoftail Deuce FXSTD2000
Harley-DavidsonSoftail Deuce FXSTD2006
Harley-DavidsonSoftail Heritage Classic FLSTC2001
Harley-DavidsonSoftail Heritage Classic FLSTC2000
Harley-DavidsonSoftail Heritage Classic FLSTC2003
Harley-DavidsonSoftail Heritage Classic FLSTC2006
Harley-DavidsonSoftail Heritage Classic FLSTC2004
Harley-DavidsonSoftail Heritage Classic FLSTC2002
Harley-DavidsonSoftail Heritage Classic FLSTC2005
Harley-DavidsonSoftail Fat Boy FLSTF2002
Harley-DavidsonSoftail Fat Boy FLSTF2005-2006
Harley-DavidsonSoftail Fat Boy FLSTF2004
Harley-DavidsonSoftail Fat Boy FLSTF2001
Harley-DavidsonSoftail Fat Boy FLSTF2000
Harley-DavidsonSoftail Fat Boy FLSTF2003
Harley-DavidsonSoftail Deuce EFI FXSTDI2004
Harley-DavidsonSoftail Deuce EFI FXSTDI2002-2003
Harley-DavidsonSoftail Deuce EFI FXSTDI2005-2006
Harley-DavidsonSoftail Deuce EFI FXSTDI2001
Harley-DavidsonRoad King EFI FLHR2002
Harley-DavidsonRoad King EFI FLHR2005
Harley-DavidsonRoad King EFI FLHR2004
Harley-DavidsonRoad King EFI FLHR2006
Harley-DavidsonRoad King EFI FLHR2003
Harley-DavidsonRoad King EFI FLHR2000-2001
Harley-DavidsonRoad King EFI FLHR1999
Harley-DavidsonSuper Glide Custom FXDC2005
Harley-DavidsonSoftail Heritage FLST2006
Harley-DavidsonSoftail Fat Boy EFI FLSTFI2004
Harley-DavidsonSoftail Fat Boy EFI FLSTFI2006
Harley-DavidsonSoftail Fat Boy EFI FLSTFI2005
Harley-DavidsonSoftail Fat Boy EFI FLSTFI2002-2003
Harley-DavidsonSoftail Springer Classic EFI FLSTSCI2005-2006
Harley-DavidsonSoftail Heritage Springer EFI FLSTSI2002
Harley-DavidsonSoftail Heritage Springer EFI FLSTSI2001
Harley-DavidsonSoftail Heritage Springer EFI FLSTSI2003
Harley-DavidsonSoftail Heritage Springer FLSTS2002
Harley-DavidsonSoftail Heritage Springer FLSTS2001
Harley-DavidsonSoftail Heritage Springer FLSTS2003
Harley-DavidsonSoftail Heritage Springer FLSTS2000
Harley-DavidsonSoftail Deluxe EFI FLSTNI2005-2006
Harley-DavidsonStreet Glide EFI FLHX2006
Harley-DavidsonWide Glide EFI FXDWGI2005
Harley-DavidsonWide Glide EFI FXDWGI2004
Harley-DavidsonSoftail Deluxe FLSTN2005-2006
Harley-DavidsonRoad Glide EFI FLTR2003
Harley-DavidsonRoad Glide EFI FLTR1999
Harley-DavidsonRoad Glide EFI FLTR2004
Harley-DavidsonRoad Glide EFI FLTR2000
Harley-DavidsonRoad Glide EFI FLTR2005
Harley-DavidsonRoad Glide EFI FLTR2001-2002
Harley-DavidsonRoad Glide EFI FLTR2006
Harley-DavidsonLow Rider EFI FXDL2004-2005
Harley-Davidson15th Anniversary Fat Boy FLSTF2005
Harley-DavidsonElectra Glide Standard EFI FLHTI2003
Harley-DavidsonElectra Glide Standard EFI FLHTI2005-2006
Harley-DavidsonElectra Glide Standard EFI FLHTI2004

Package Info

PropertyValue
Weight6.1
Height4.63
Length11.4
Width8.95
