S&S CYCLE

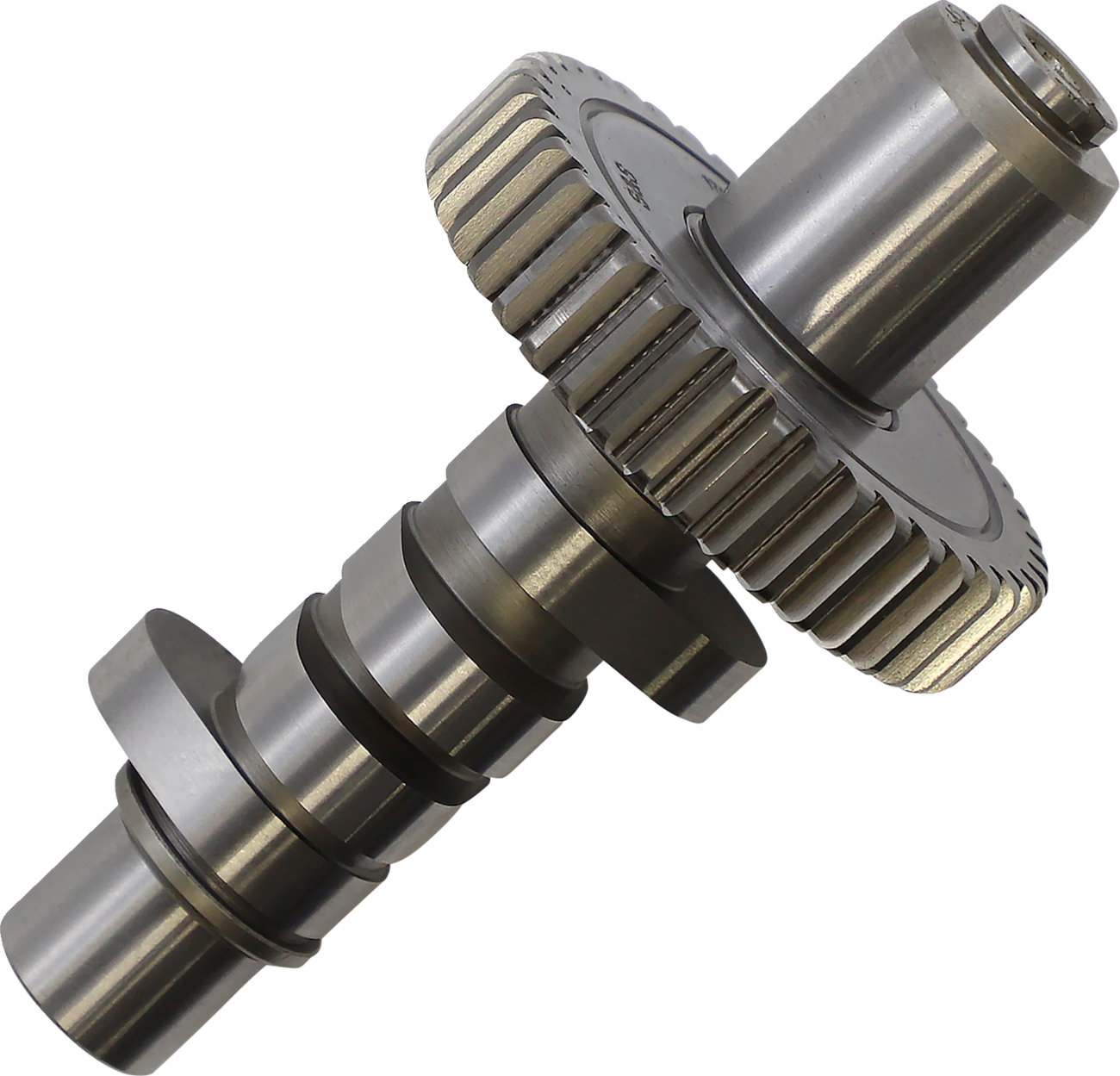

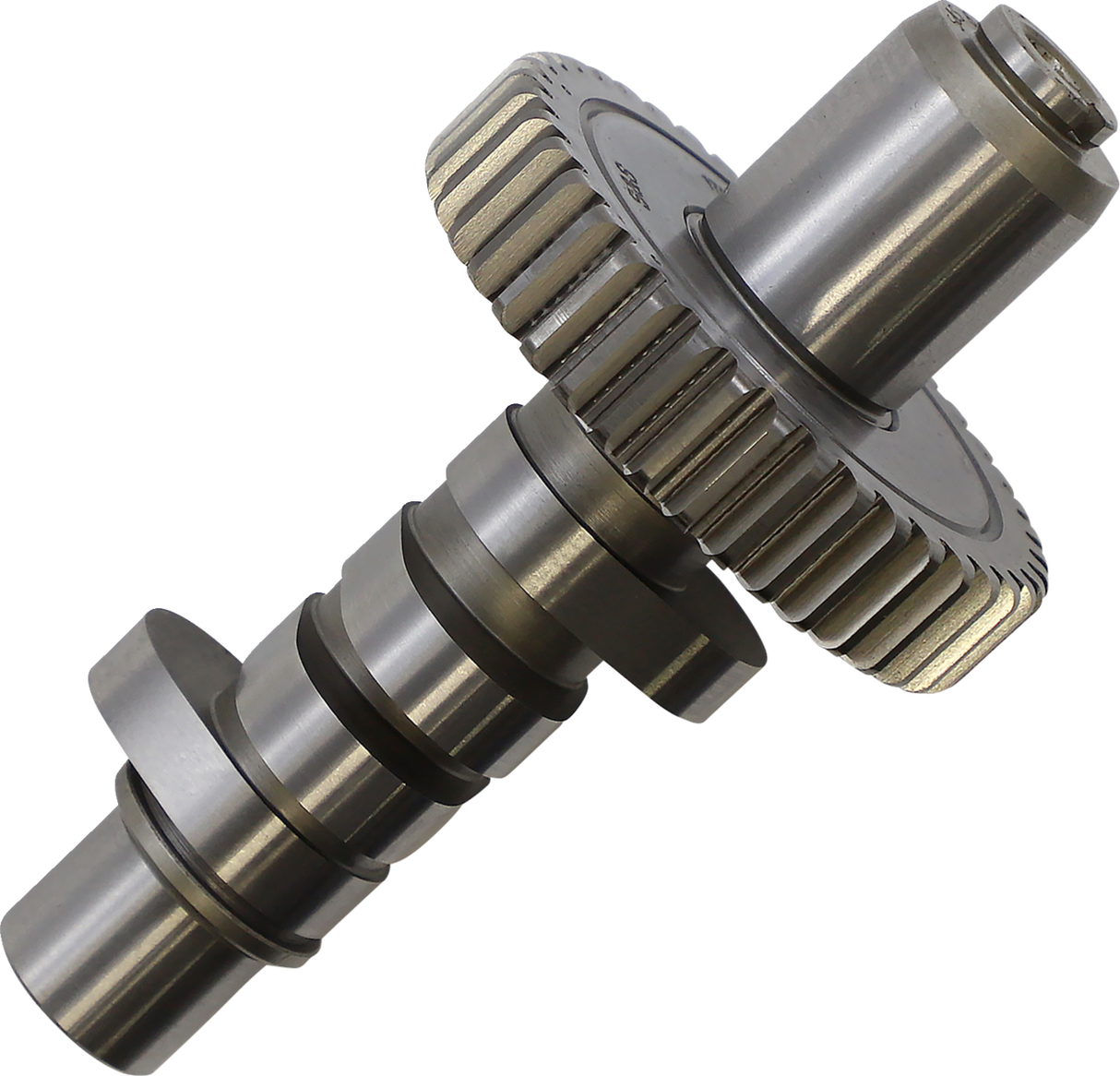

640 Cam - Evolution 1989 - 1998

SKU: 0925-0044
$299.95
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

S&S Cams are tested on the dyno, street and track before being offered to the public

With hundreds of hours of testing on each cam, you know you are getting the best cam S&S can produce

For large displacement engines (110\"+) with 10.5 to 11.5:1 compression and smaller engines (96-107\") with 11 to 12:1 compression

Requires high-lift springs

Less overlap and fast ramps build higher cylinder pressure

Lower TDC lift makes installation easier

Designed for use with hydraulic tappets

Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.

Made in the U.S.A.

Specification
Application Intake / Exhaust
Exhaust Close 20°
Exhaust Duration 265°
Exhaust Lift at TDC 0.192\"
Exhaust Lift 0.640\"
Exhaust Lobe Centerline 112.5\"
Exhaust Open 65°
Grind 640 Series
Intake Close 60°
Intake Duration 265°
Intake Lift at TDC 0.222\"
Intake Lift 0.640\"
Intake Lobe Centerline 107.5°
Intake Open 25°
Product Name Cam
Riding Style Street
Type Gear
Units Each

Fitment
MakeModelYear
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1990
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1994
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1989
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1995
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1998
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1991
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1993
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1996
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1992
Harley-DavidsonElectra Glide Ultra Classic FLHTCU1997
Harley-DavidsonElectra Glide Classic EFI FLHTCI1996
Harley-DavidsonElectra Glide Classic EFI FLHTCI1995
Harley-DavidsonElectra Glide Classic EFI FLHTCI1998
Harley-DavidsonElectra Glide Classic EFI FLHTCI1997

Package Info

PropertyValue
Weight1.95
Height3.18
Length5.9
Width3.38
