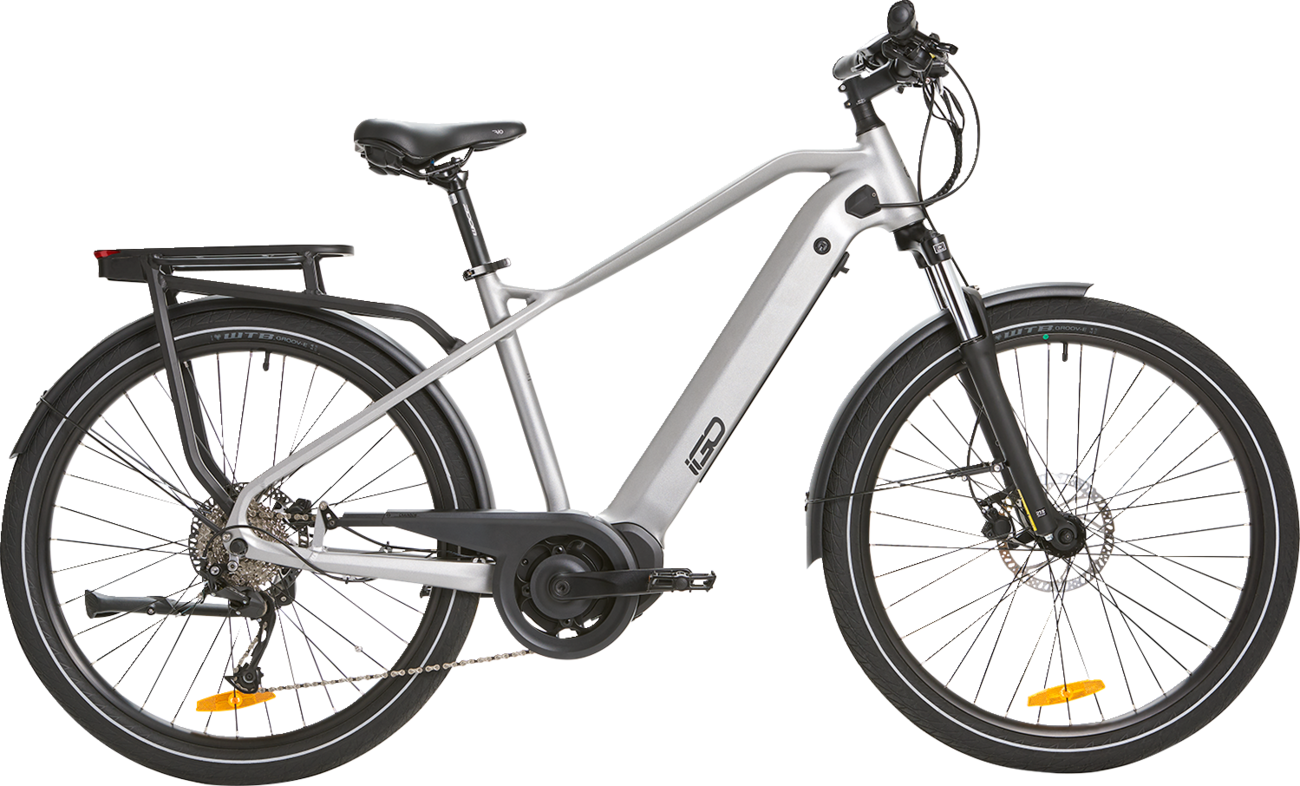

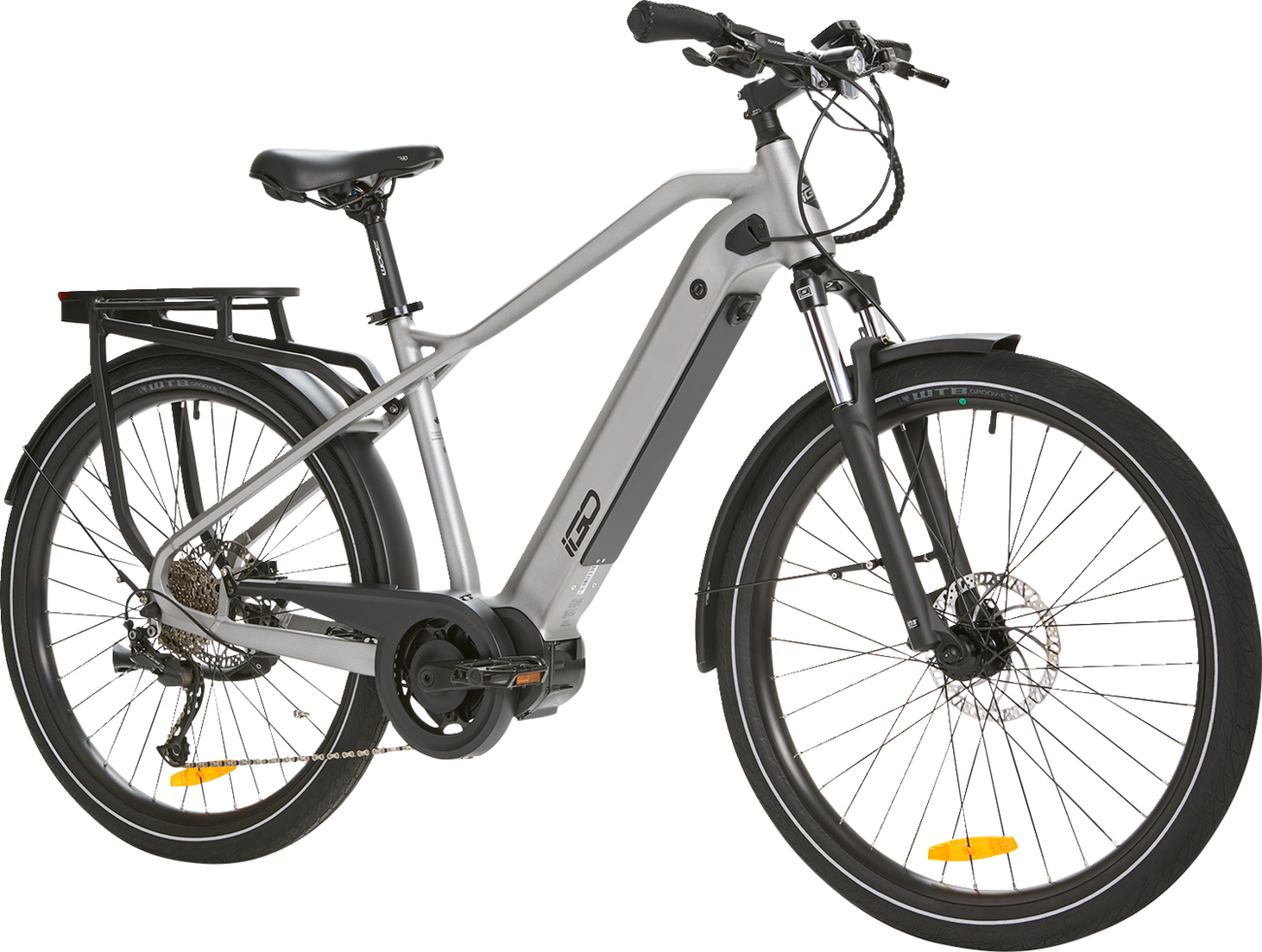

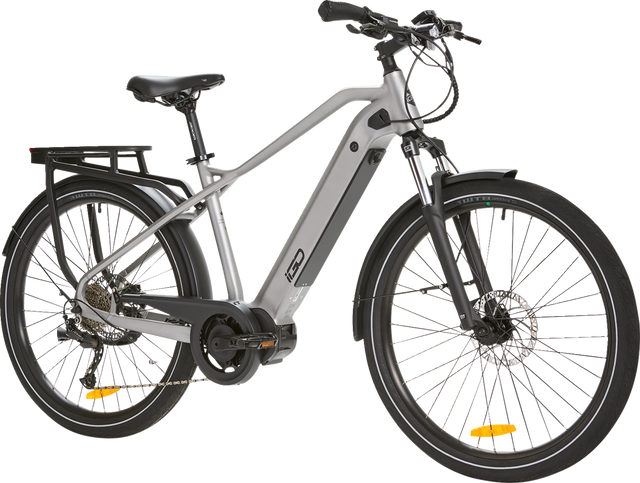

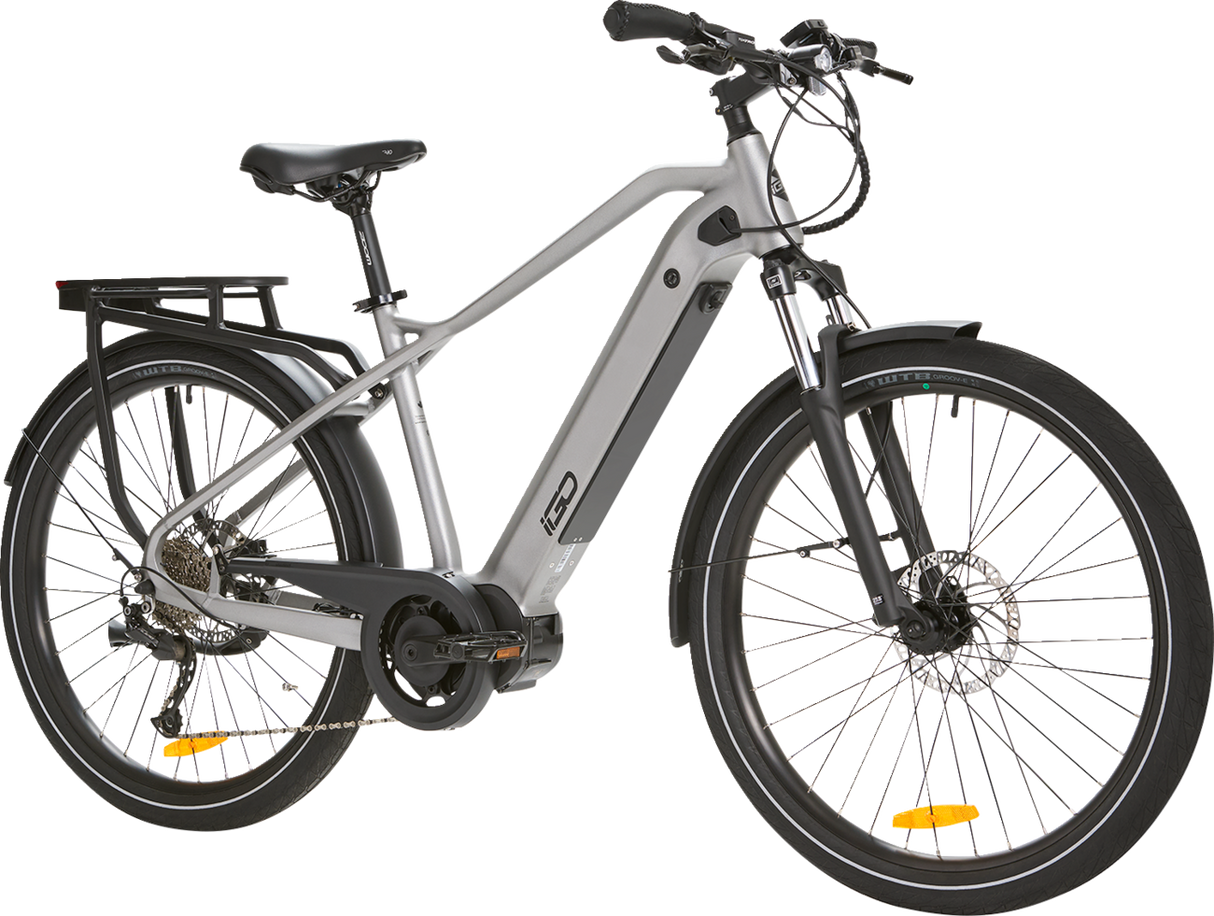

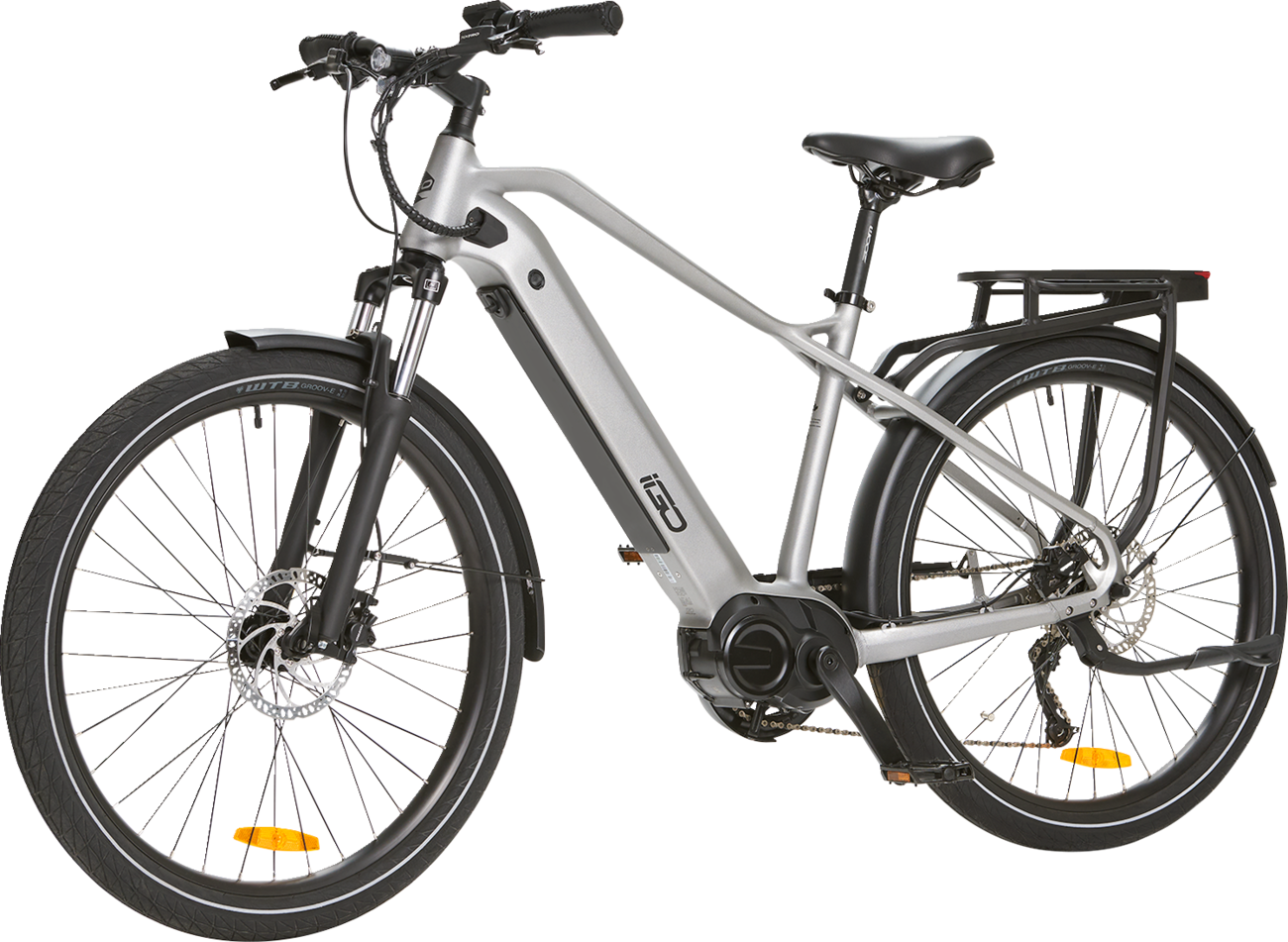

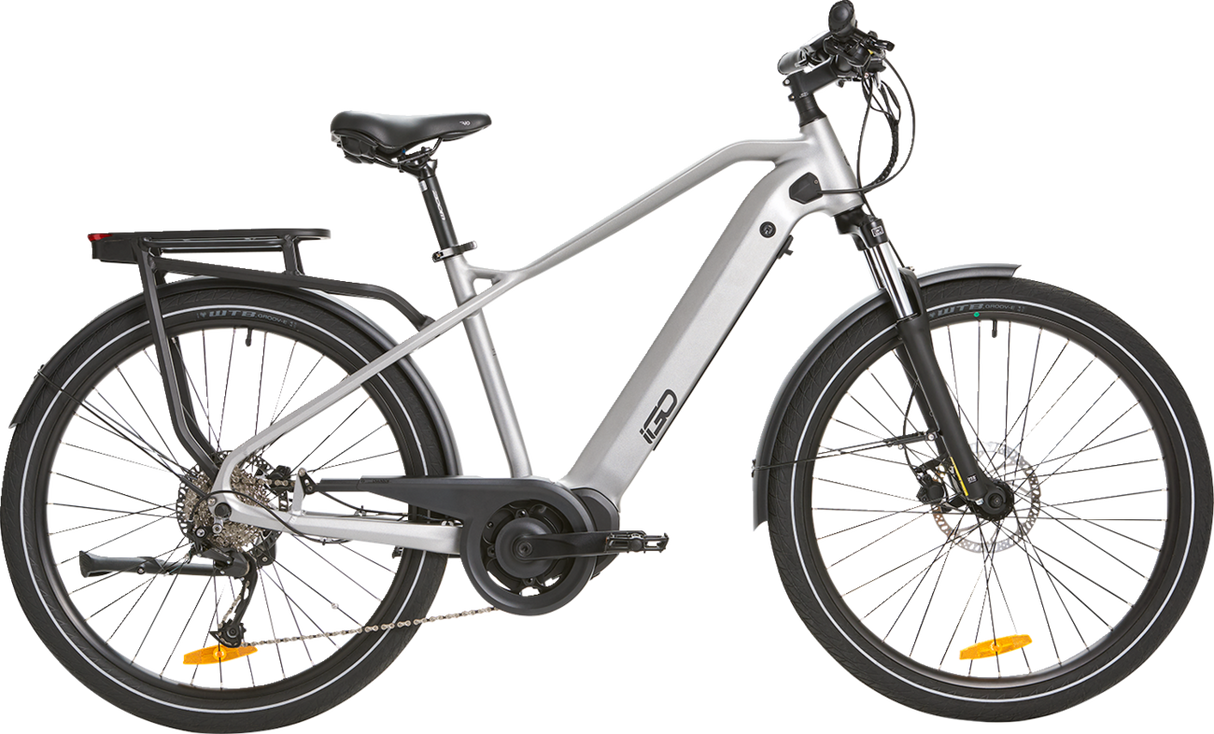

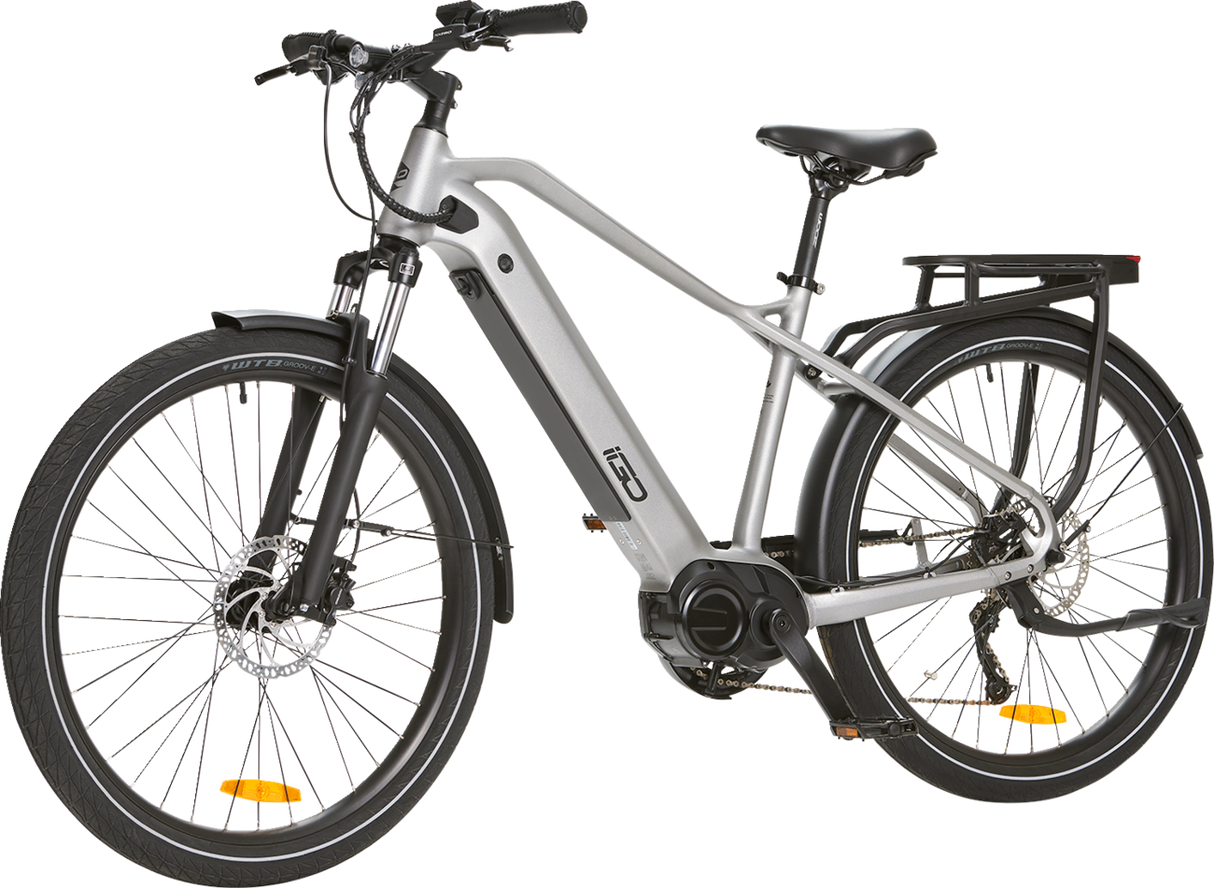

Discovery Yorkville LS E-Bike - Platinum - Hybrid

Programmed to be \'multi class switchable\', this #1 feature allows parameters to be instantly reconfigured at the touch of a button to conform to Class 1, 2, or 3 regulations

E-Bike with powerful, dynamic motor system delivering the advantages of electric assist to seamlessly enhance the traditional riding experience

Customizable assist settings to satisfy seasoned riders, enhanced safety features and serviceability built into the fabric or the bike for durability and peace of mind

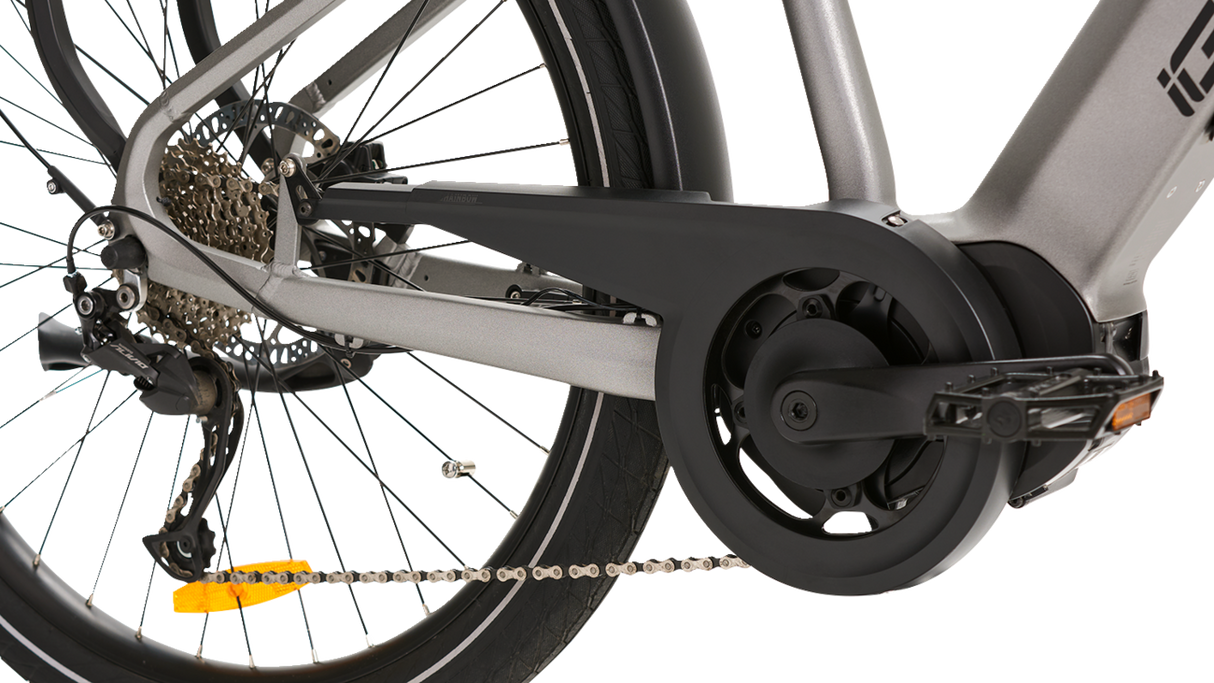

City tuned 80 Nm/350 W mid motor with Torque/Cadence sensing and throttle delivers a powerful and intuitive natural riding experience

720 Wh battery providing up to 56 mile* range—ready everyday with plug and play charging and all day range

Eco/Tour/Sport/Turbo/Boost user programmable and seamless intelligent riding experience

Frameset

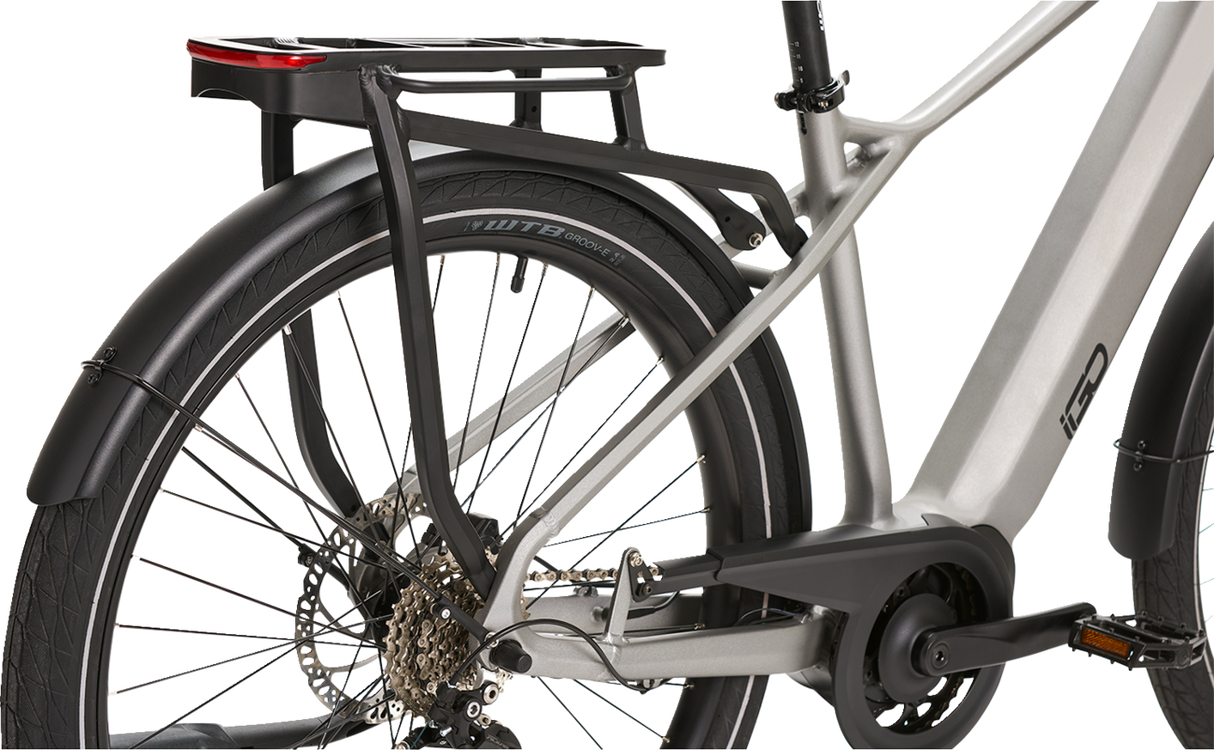

Frame — Hydroformed Alloy, 27.5\" frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack

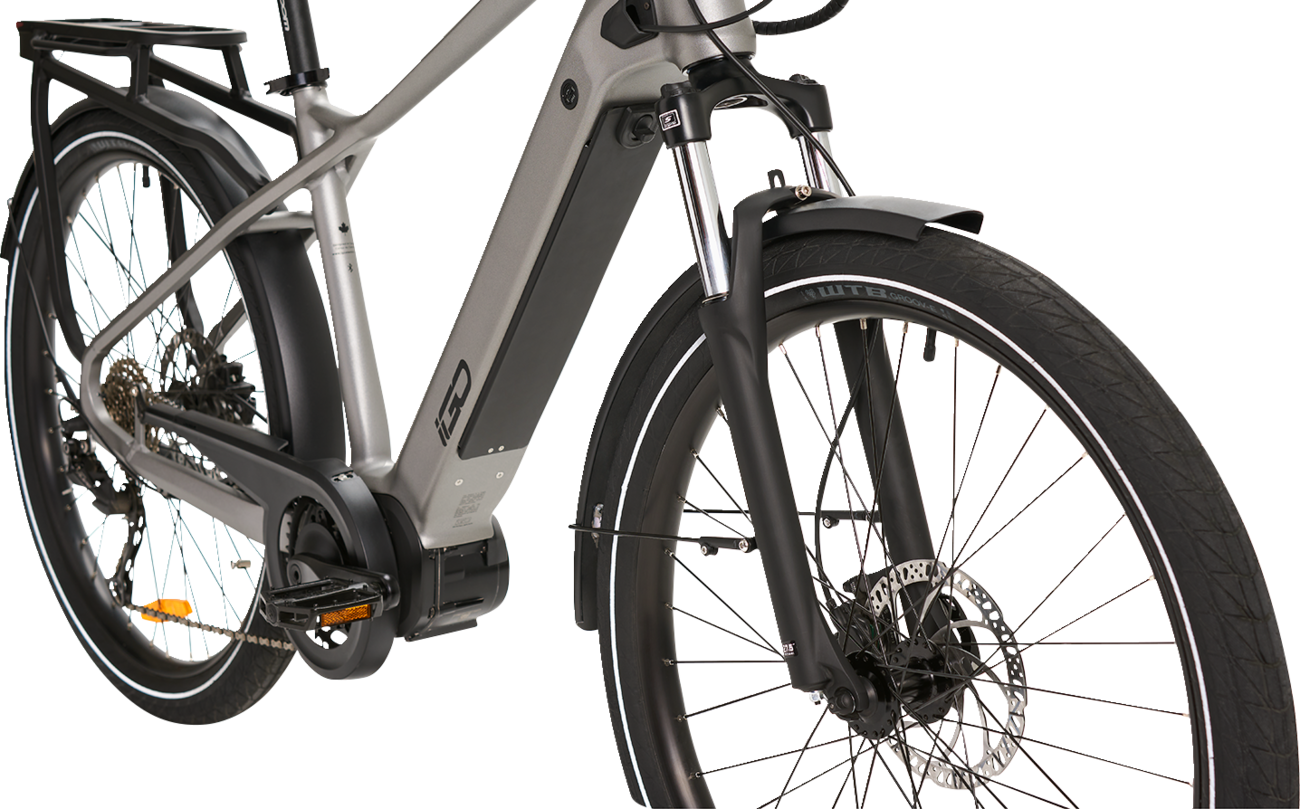

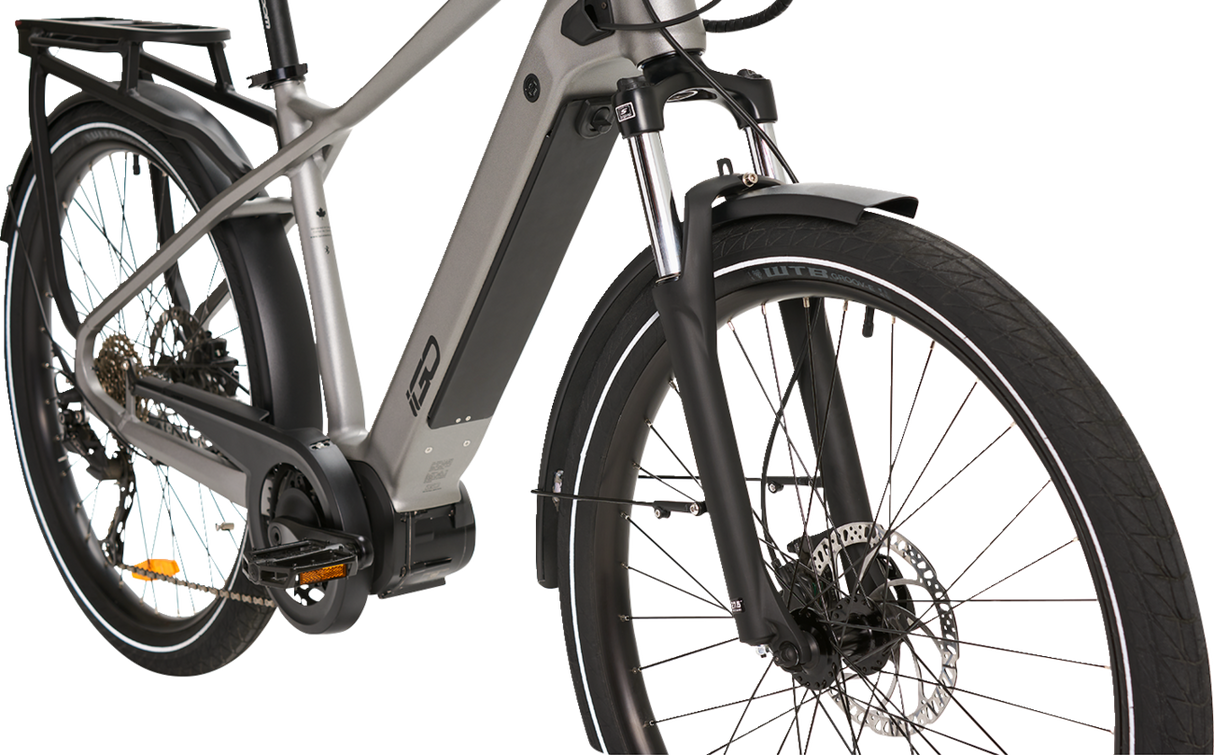

Fork — RST BLAZE-27.5TNL-15, 80 mm travel, lockout, Thru Axle

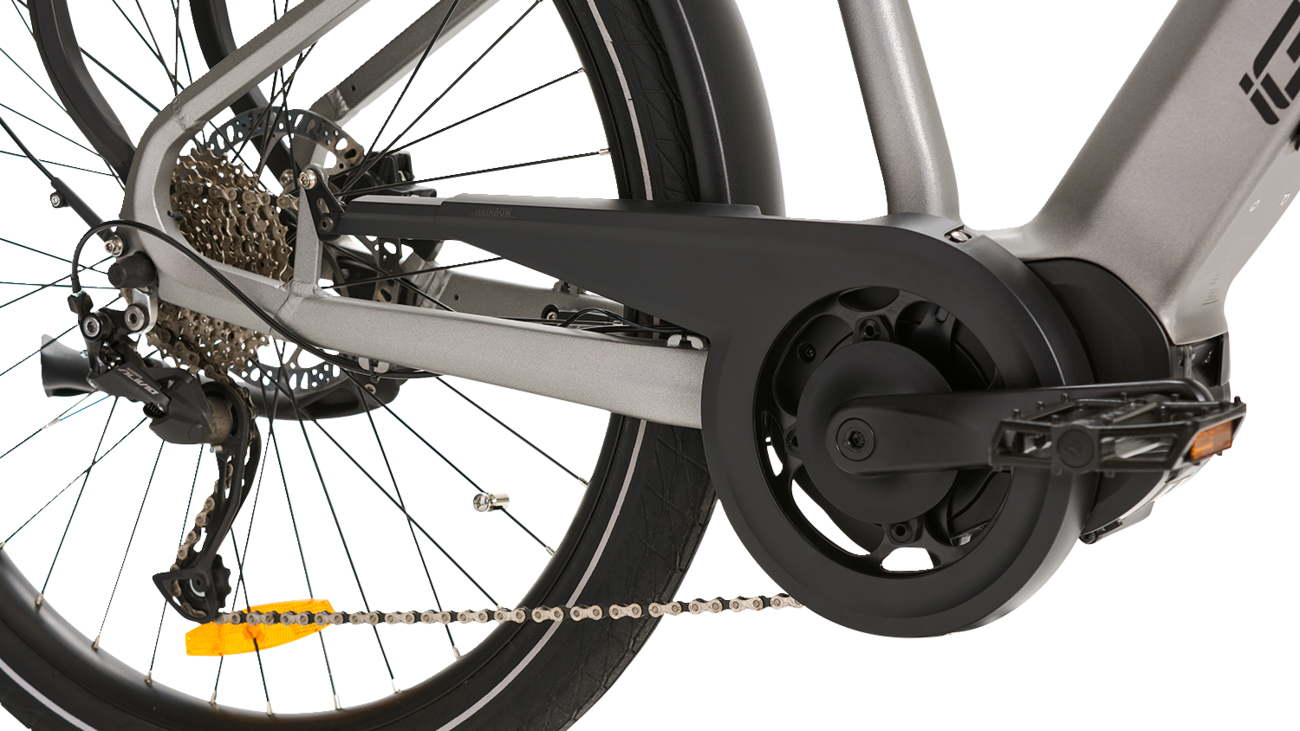

Drivetrain

Shifters — SHIMANO ALIVIO 9-speed Rapidfire Plus

Chainrings — 42T with Narrow Wide teeth

Chain — KMC E9-S

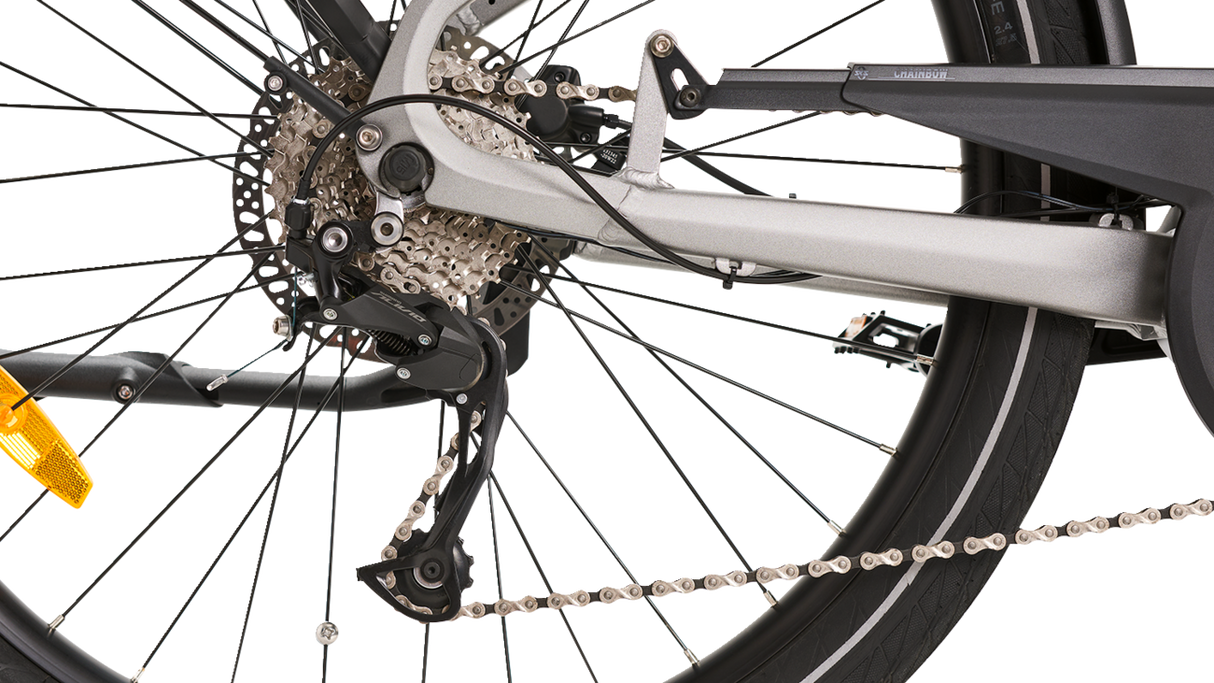

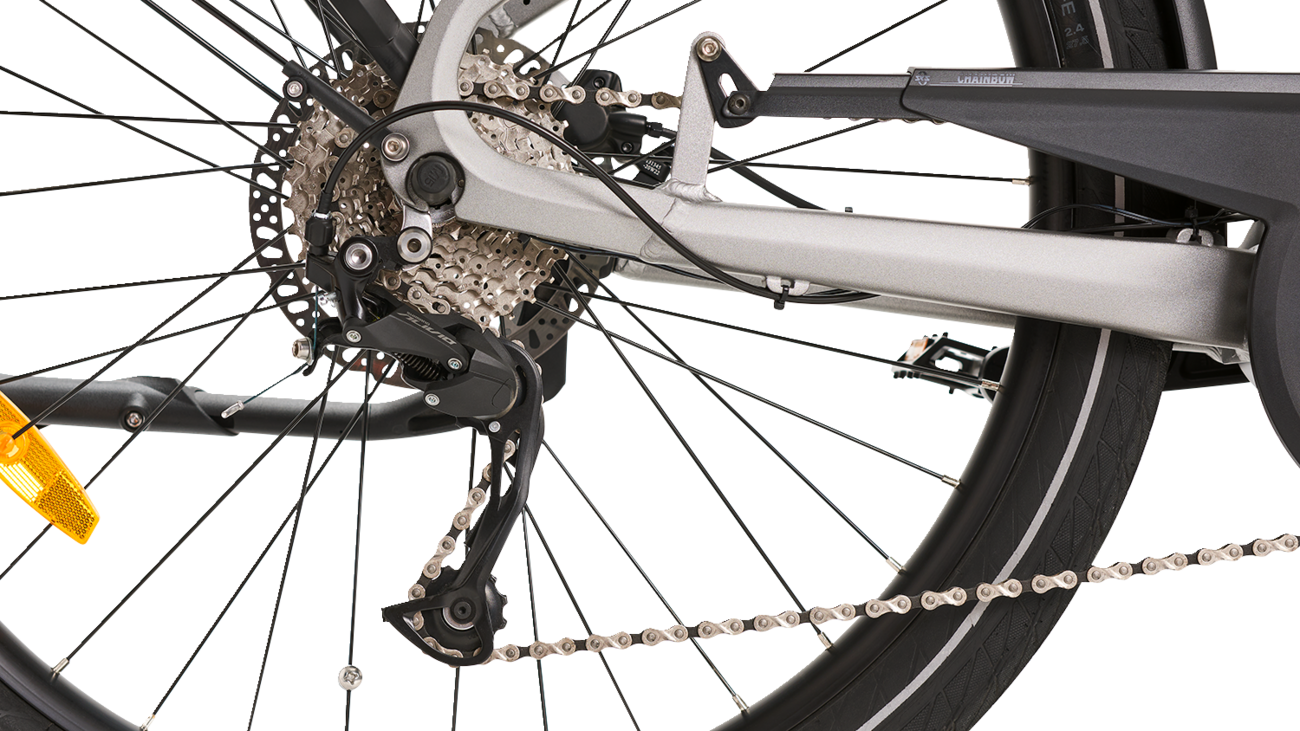

Rear Derailleur — SHIMANO ALIVIO 9-speed

Cassette — SHIMANO ALIVIO 9-speed 11-34T

Components

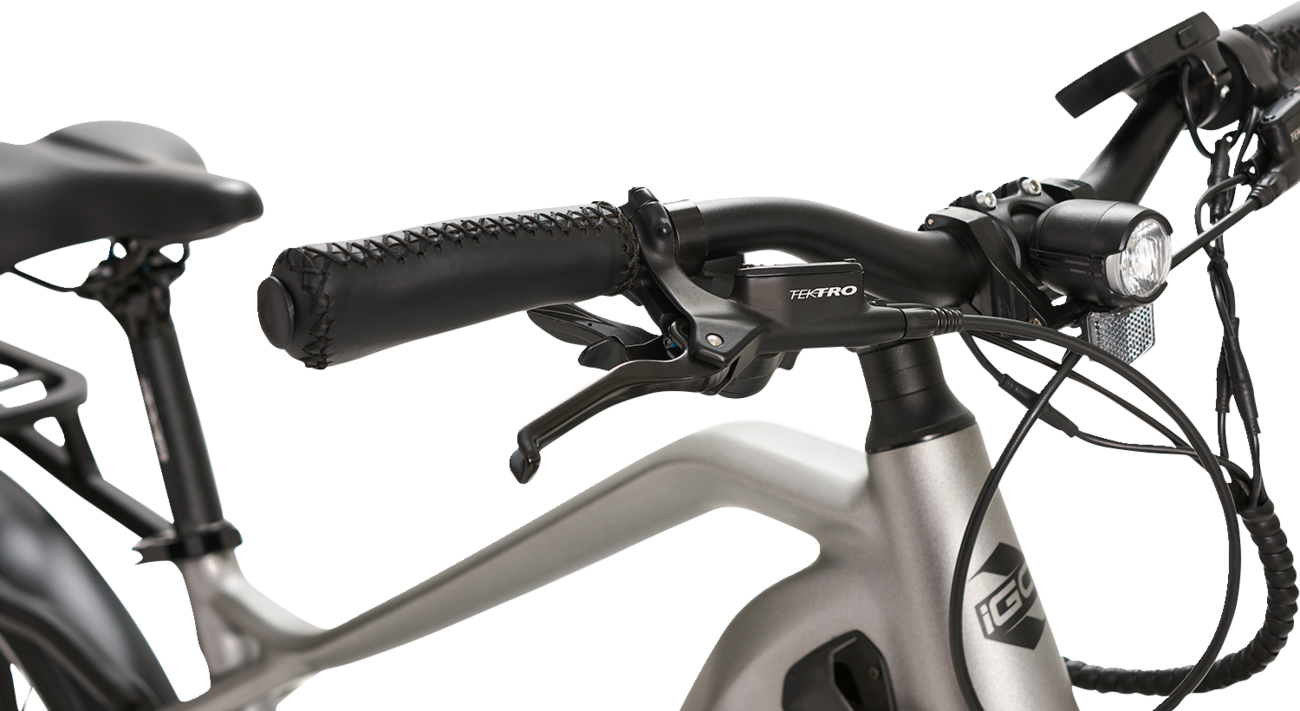

Handlebar — 640 mm, 45 mm rise, 31.8 mm diameter

Grips — VELO, Ergonomic, 135 mm

Stem — 80 mm with 7° rise

Seat Post — 31.6 mm (350 mm)

Saddle — SELLE ROYAL Rio

Brake Levers — TEKTRO HDE350 with power cut off switch

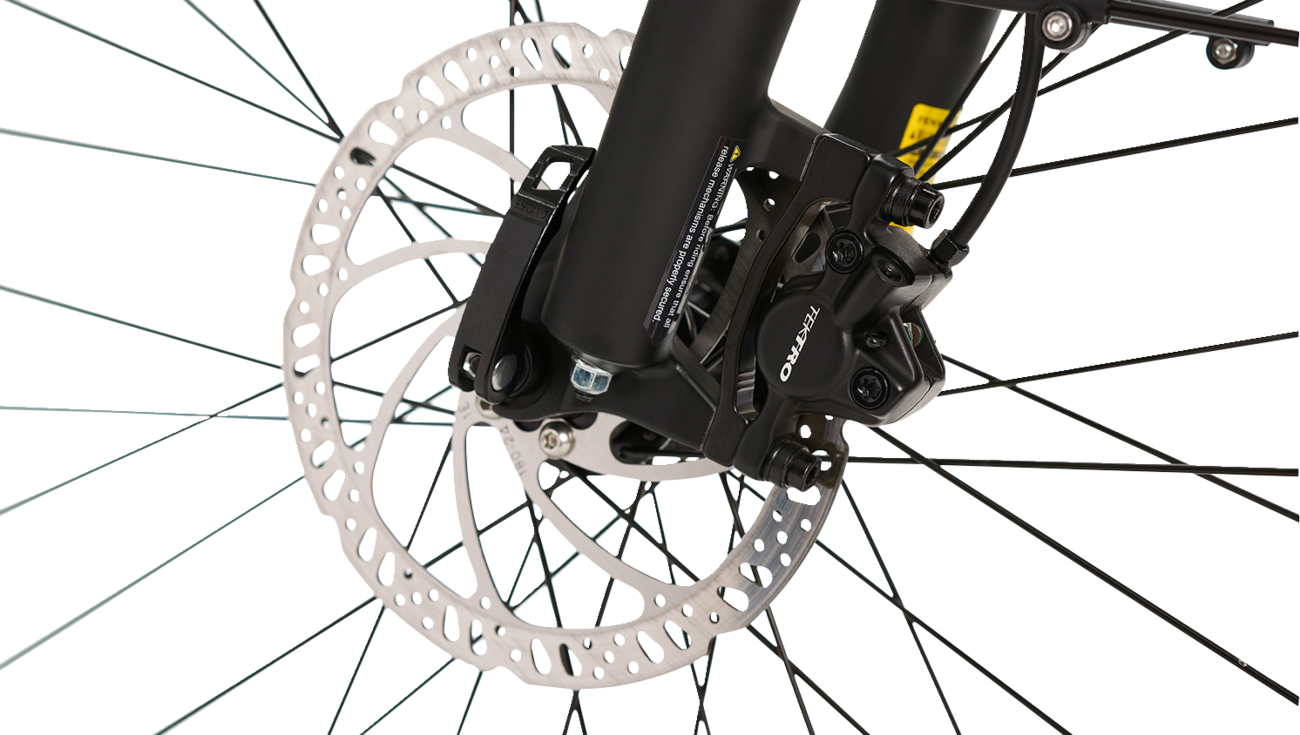

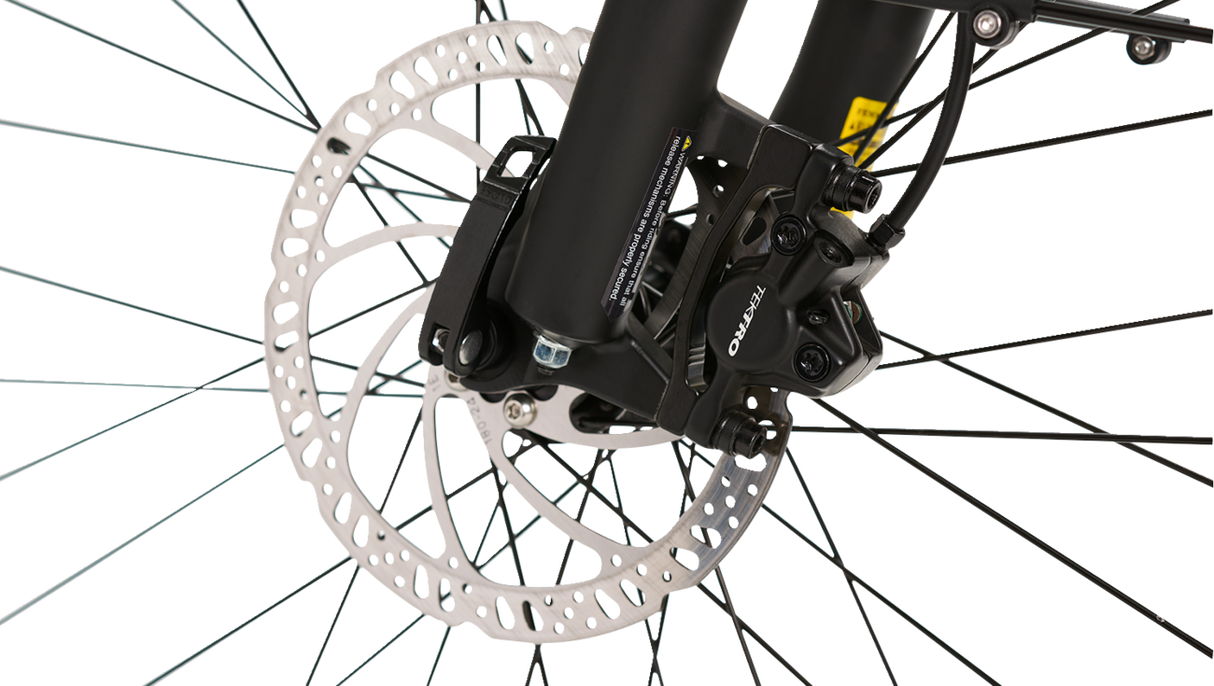

Brake Calipers — TEKTRO HDE350 Hydraulic Disc

Rotors — 180 mm

Wheels

Tires — WTB GROOV-E 27.5”x2.4”, 60tpi

Rims — 27.5”, Dual Wall Alloy, black

Electric Technology

Bluetooth — iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts.

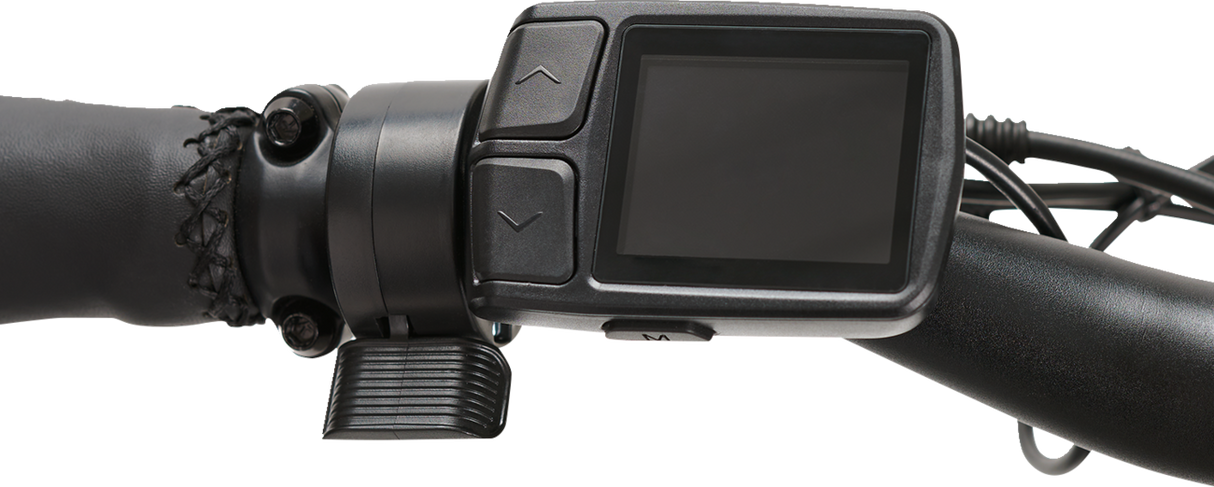

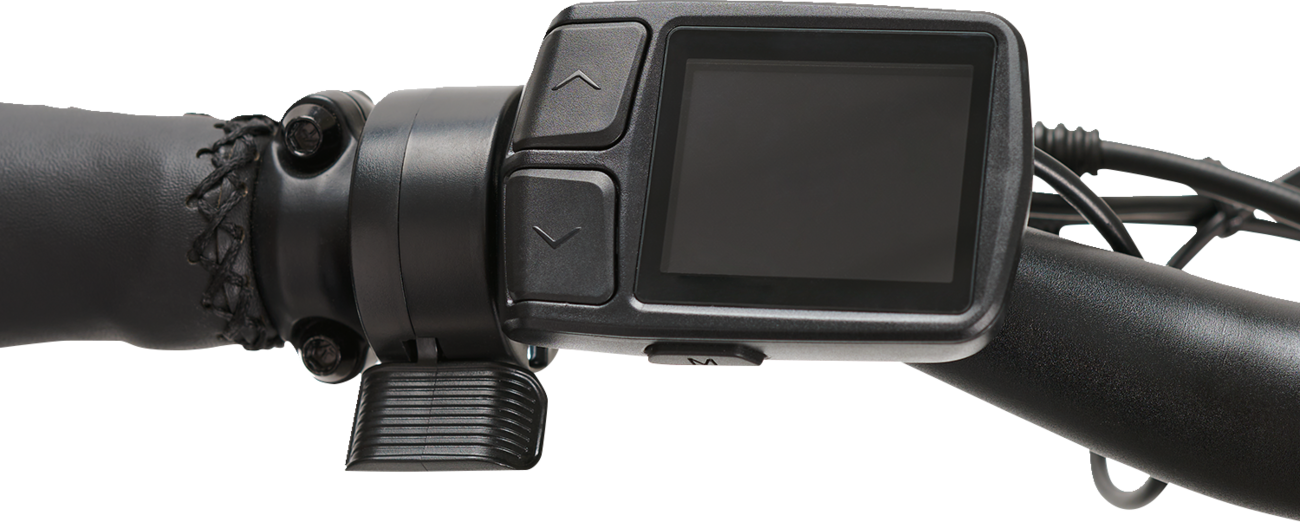

Display Unit — 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

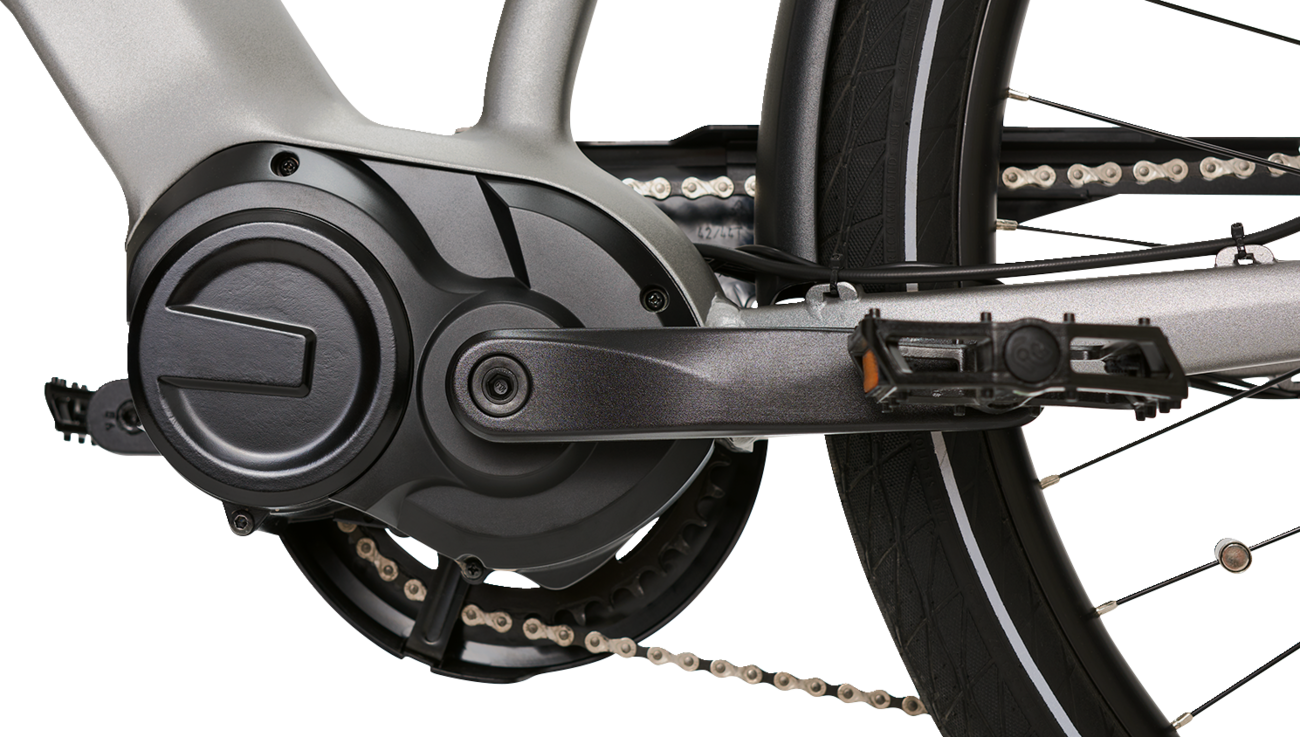

Motor — iGO DRIVE LS 350W mid motor, 48V

Torque — up to 100 Nm

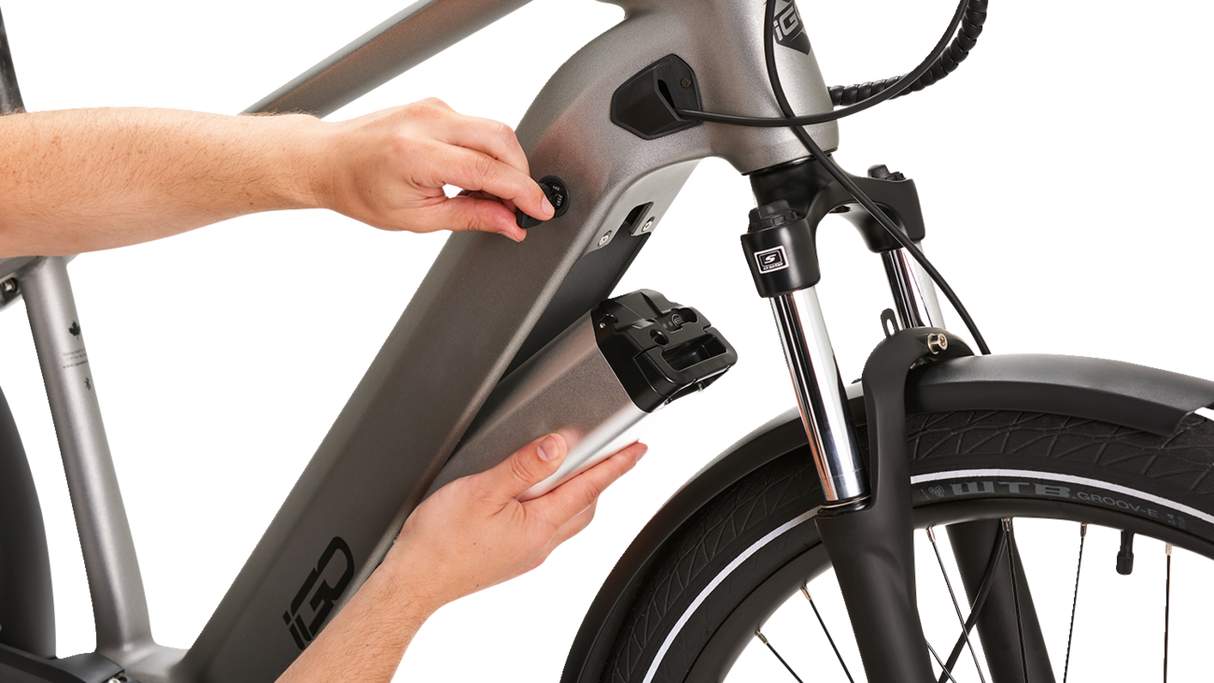

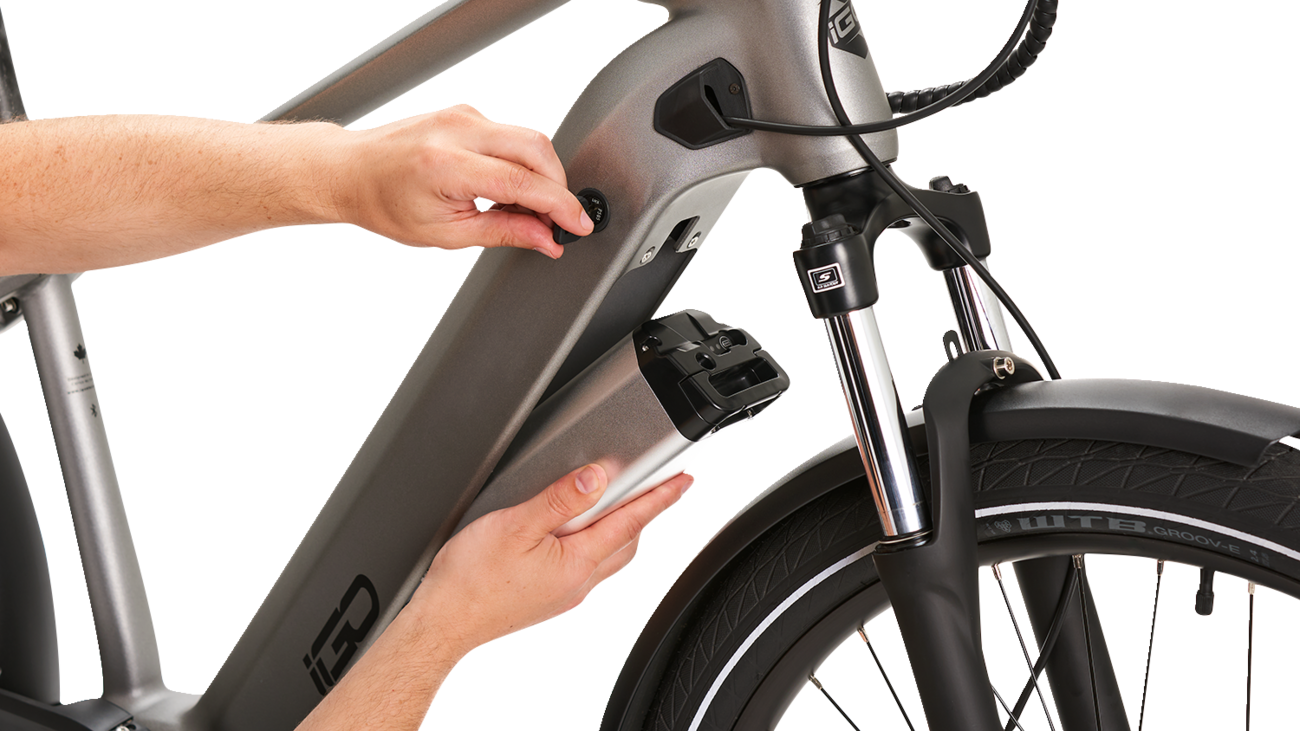

Battery — 5000mAh SAMSUNG cell, removable with security lock (48 V | 15 Ah | 720 Wh)

Range — 69 miles*

Pedal Assist System — Eco/Tour/Sport/Turbo/Boost color coded per PAS level

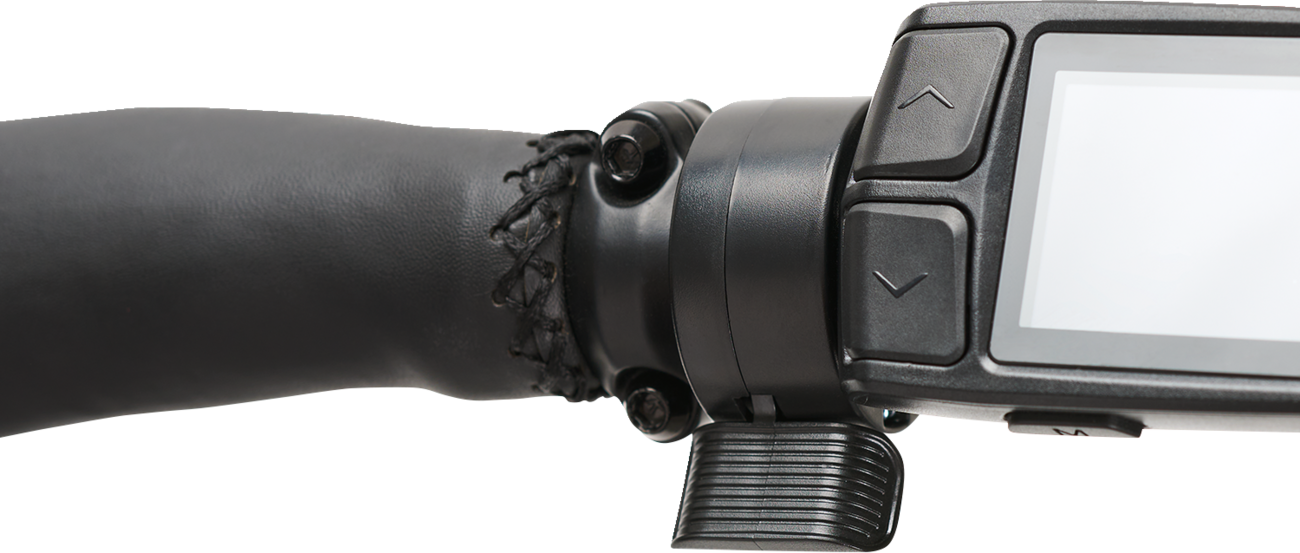

Throttle — On-Demand, Removable

Sensor — Internal Torque, Cadence, Speed

Class — Class 2 Model, configurable to Class 1 or Class 3 capable where permitted**

Accessories Included

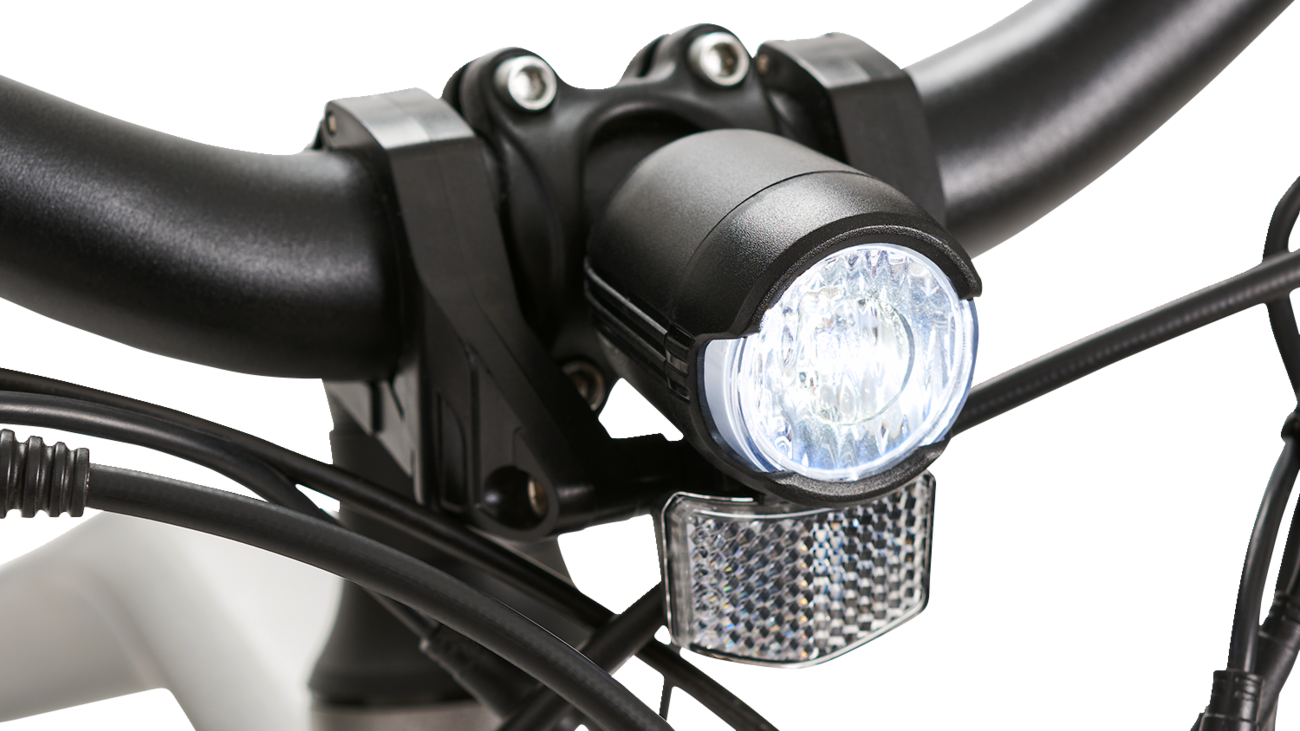

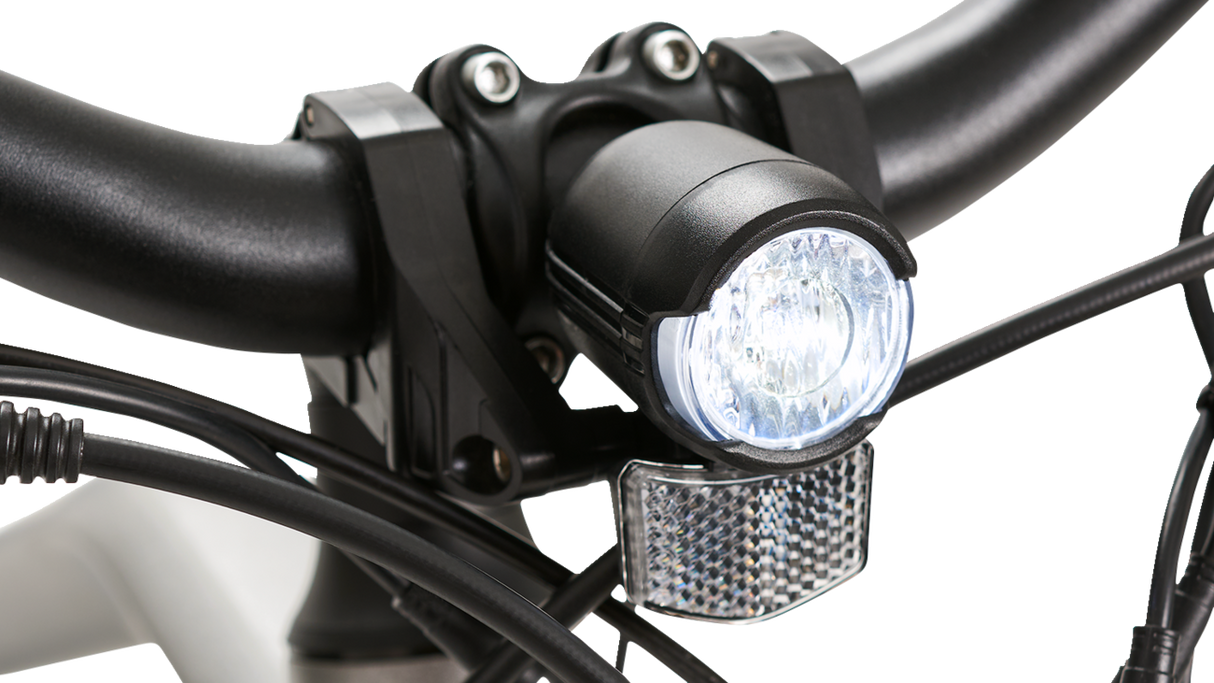

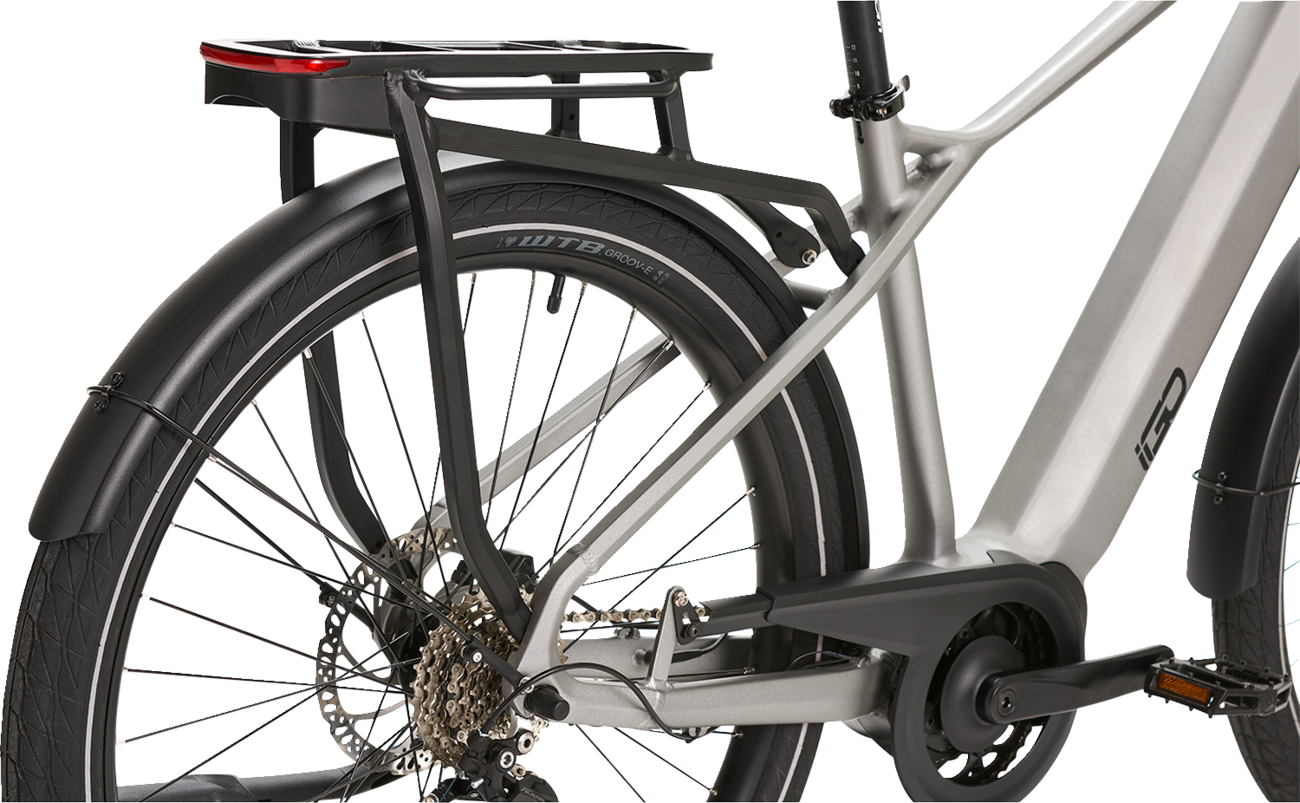

Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger

Notes

Battery Weight — 7.7 lb

Weight Capacity — 275 lb

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. Specifications subject to change.

**Class Regulations: Class 1 (Pedal assist motor with maximum assisted speed 20 mph, Class 2 (Pedal assist motor and throttle with maximum assisted speed 20 mph), Class 3 (Pedal assist motor with maximum assisted speed 28 mph. Throttle will work up to 20 mph).
