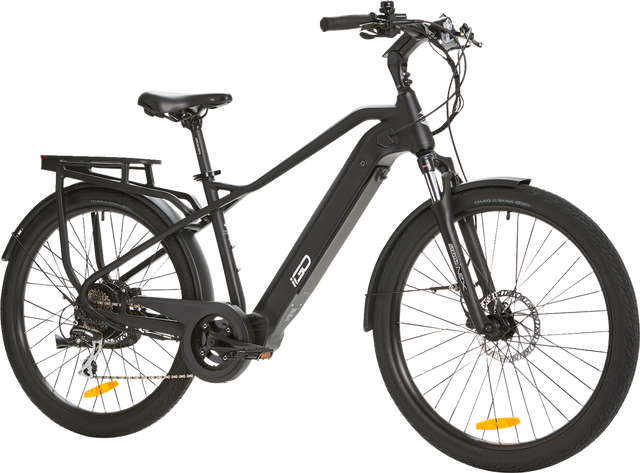

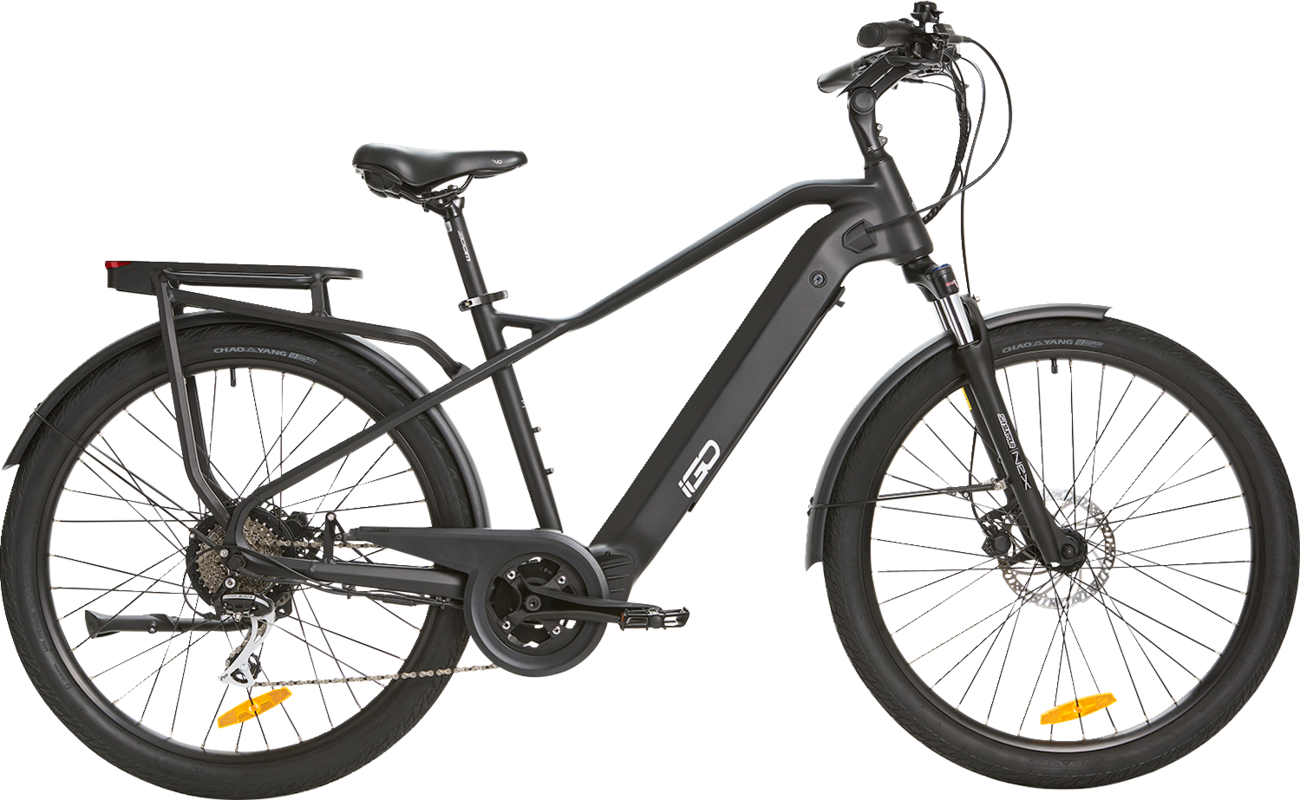

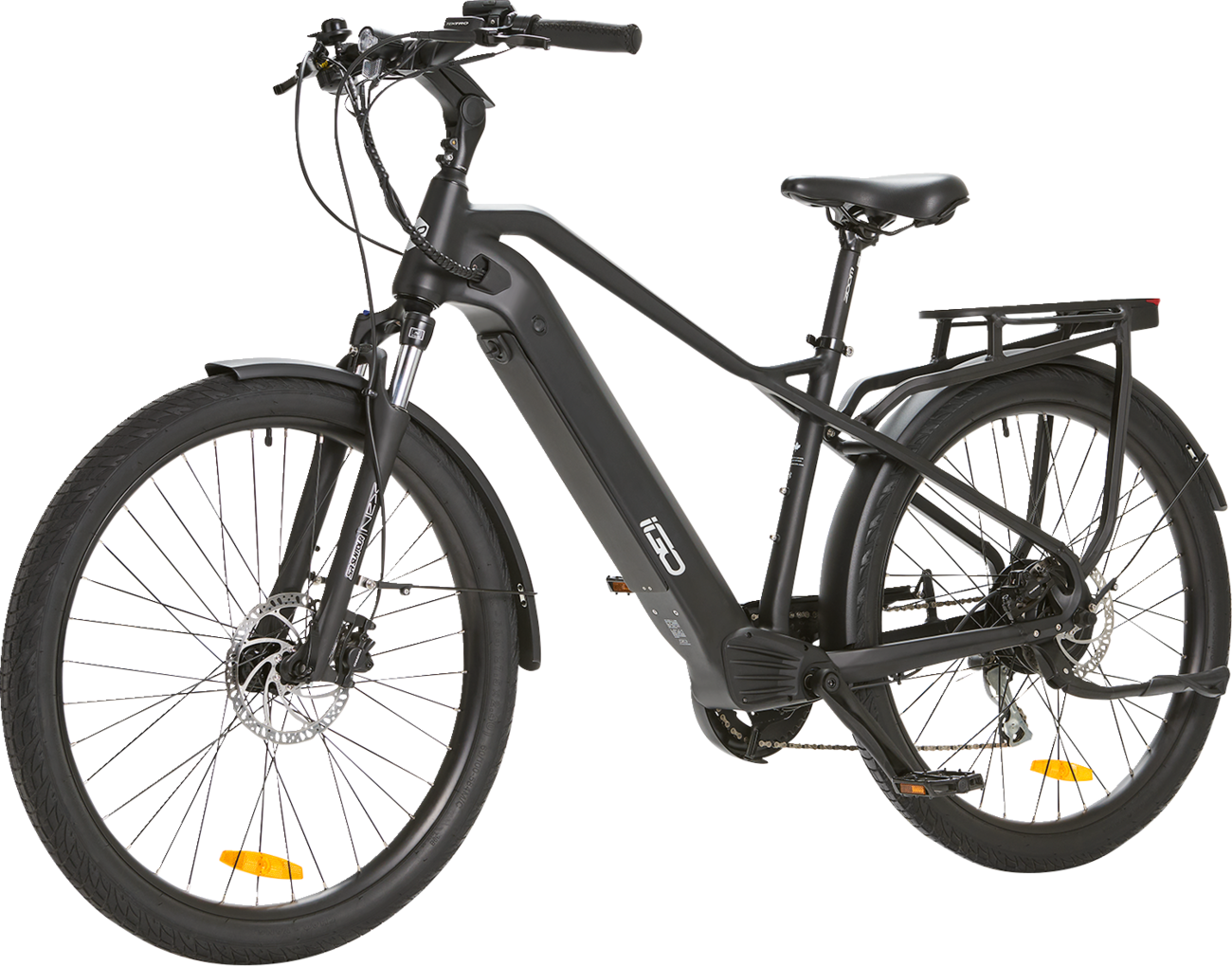

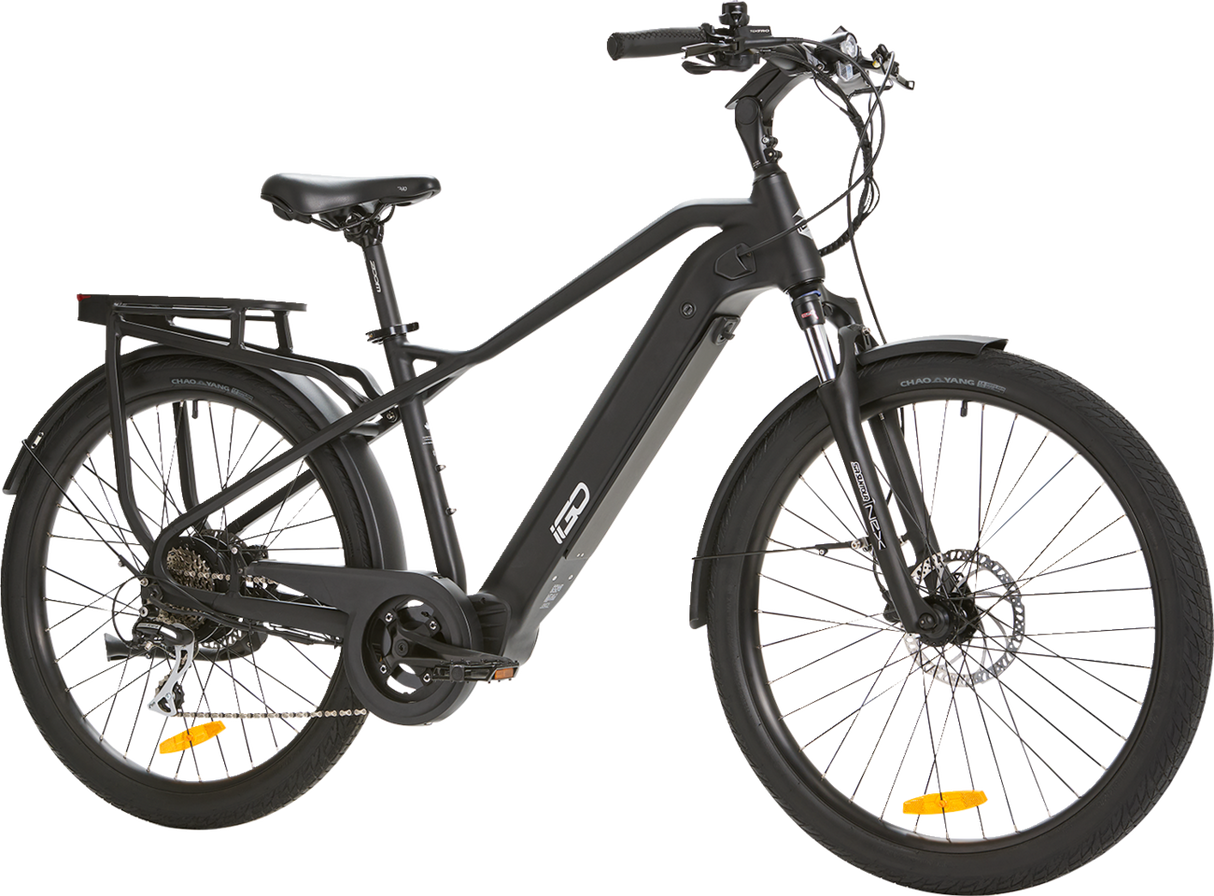

Discovery Yorkville LE E-Bike - Hybrid

Programmed to be \'multi class switchable\', this #1 feature allows parameters to be instantly reconfigured at the touch of a button to conform to Class 1, 2, or 3 regulations

Easy to mount frame with ERGOFIT design for maximum versatility and comfort

Effortless control and enhanced safety and security features allow freedom to simply enjoy the ride —perfect introduction to active transport, well suited for everyday use

With up to 55 Nm of torque, the 500 W throttle enabled motor system delivers a safe, consistent and dependable riding experience

720 Wh removable integrated battery with security lock providing up to 56 mi* range —ready everyday with plug and play charging and all day range

Pedal assist segments — Eco/Tour/Sport/Turbo/Boost user programmable and seamless intelligent riding experience

Frameset

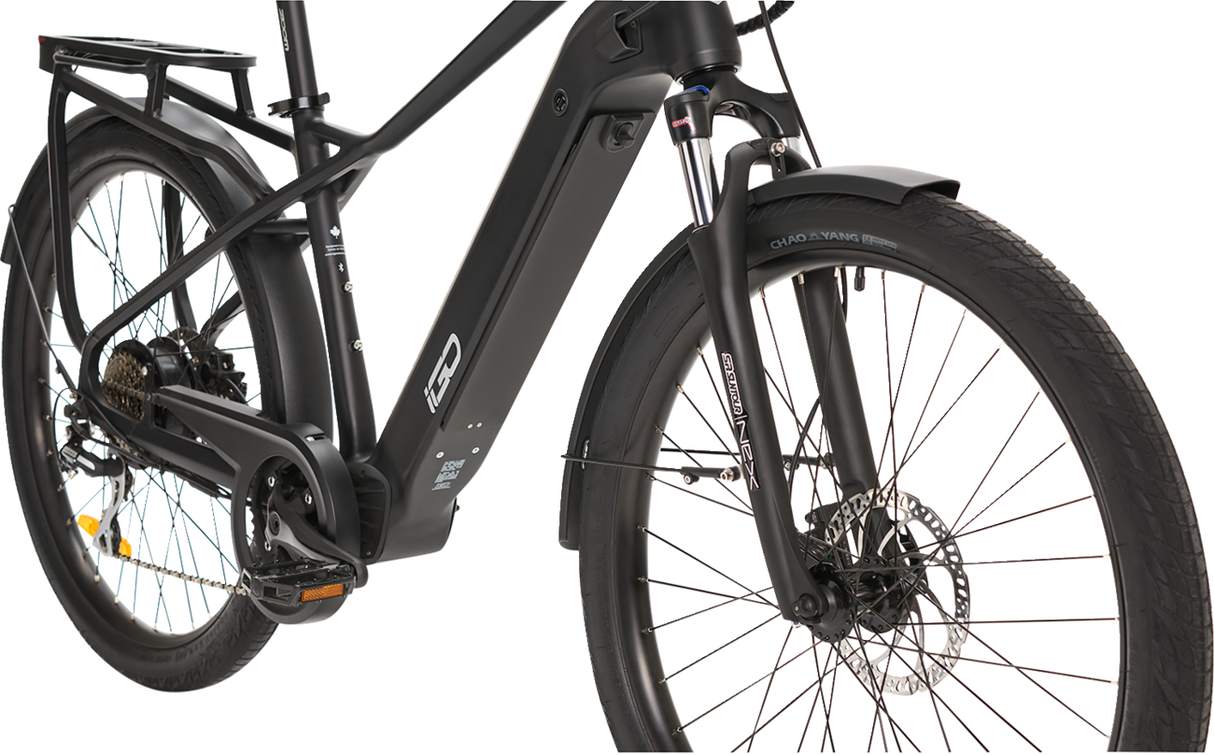

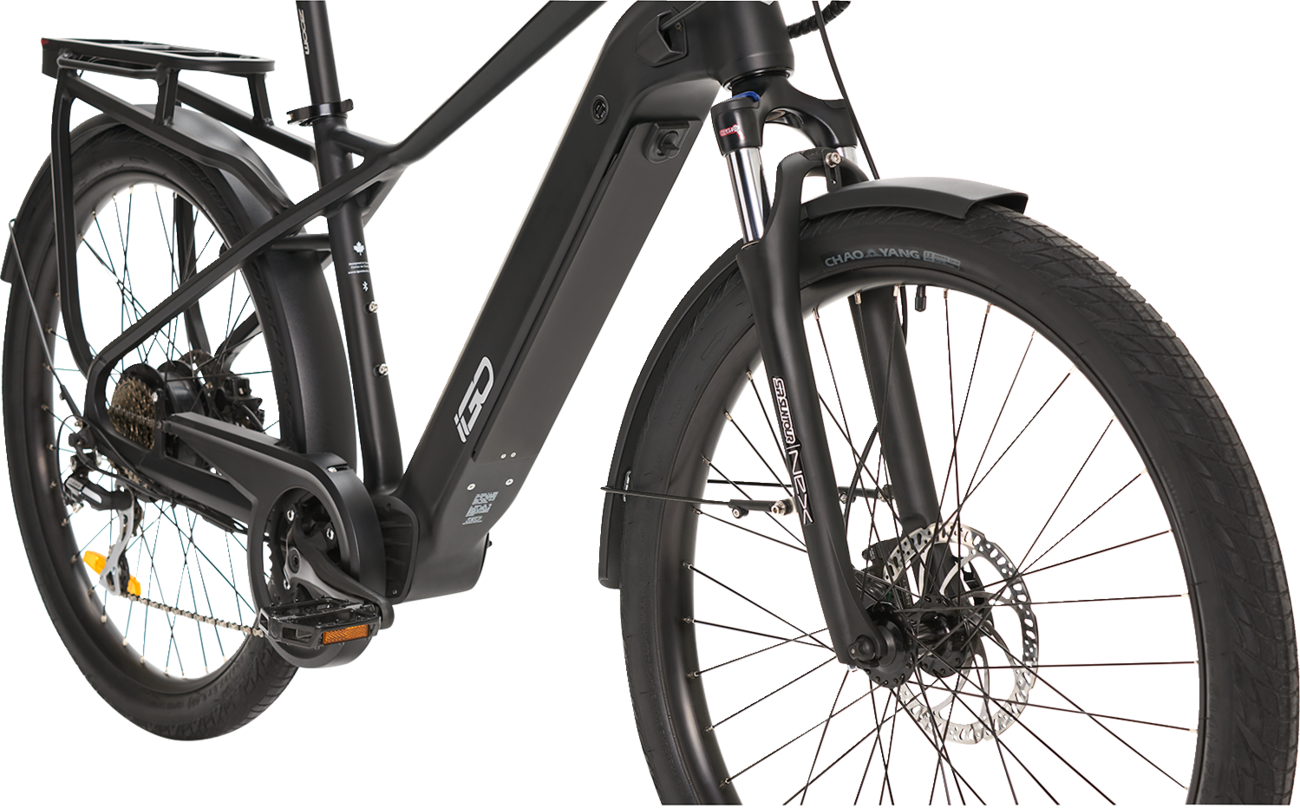

Frame — Hydroformed Alloy, 27.5\" ERGOFIT frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack

Fork — RST VOLANT 700C, 80 mm travel, lockout with quick release

Drivetrain

Shifters — SHIMANO ALTUS 8-speed

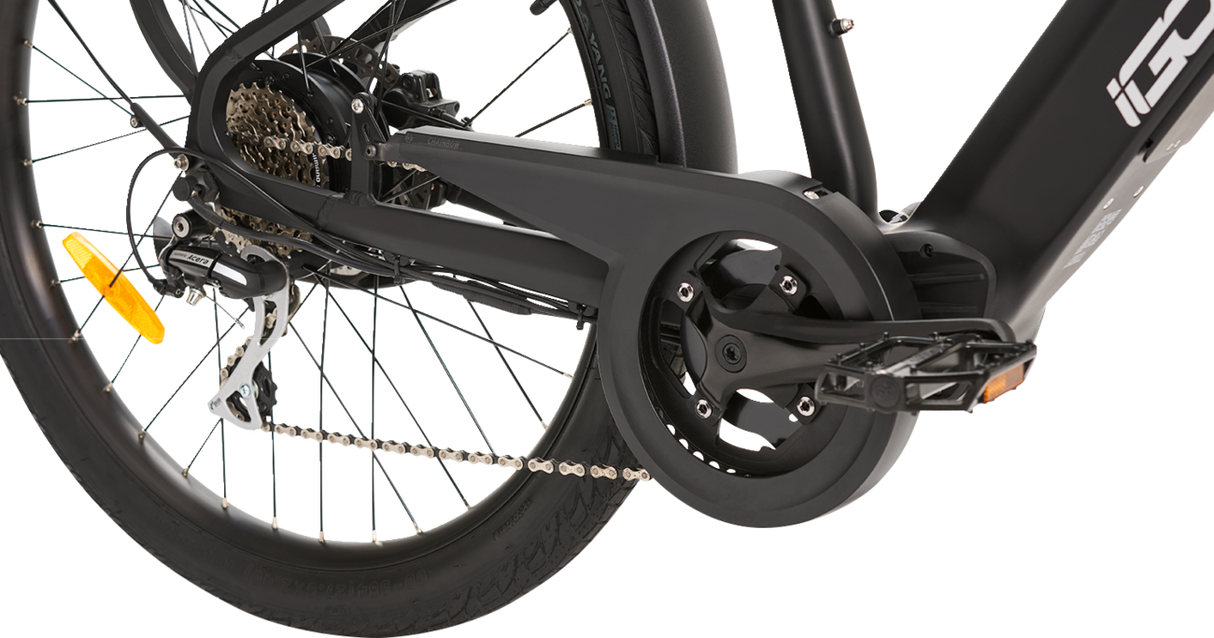

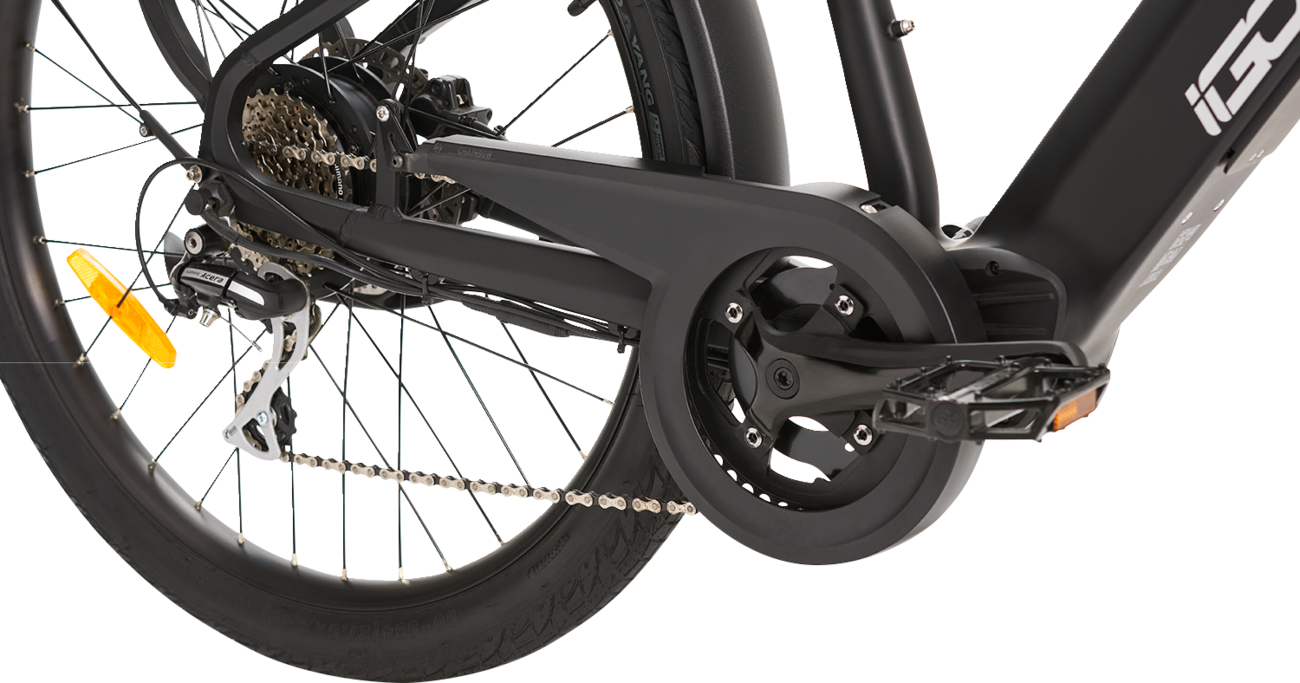

Chainrings — 42T with Narrow Wide teeth

Chain — KMC E8-S

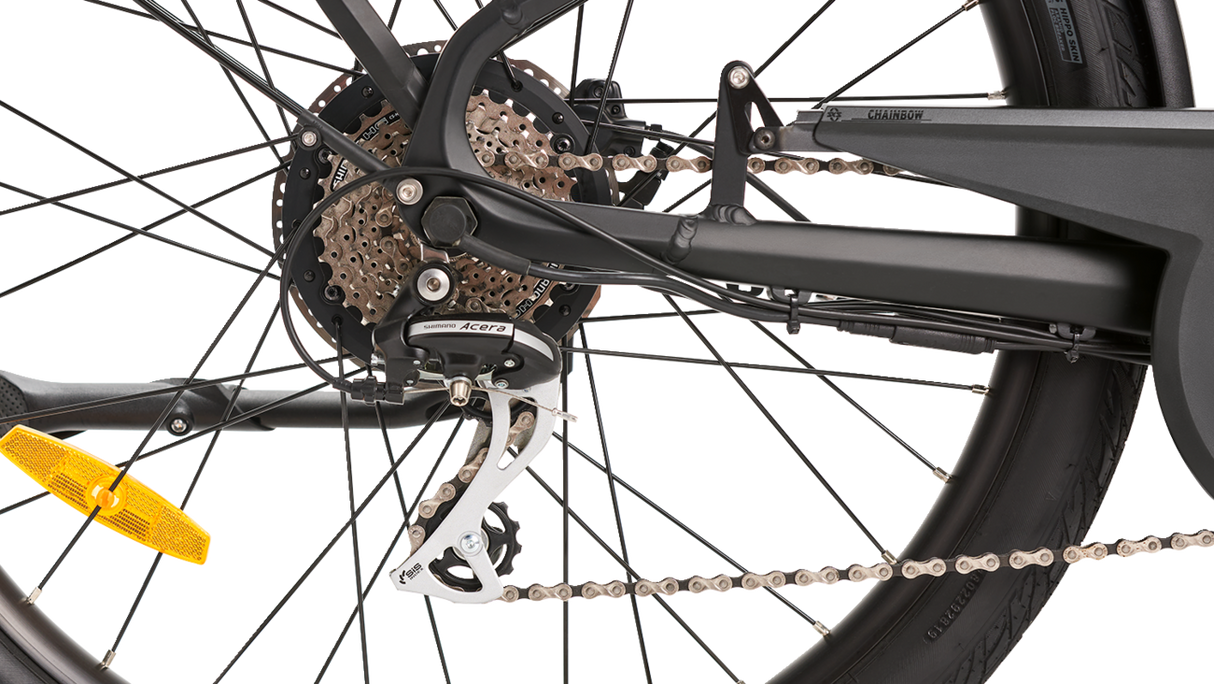

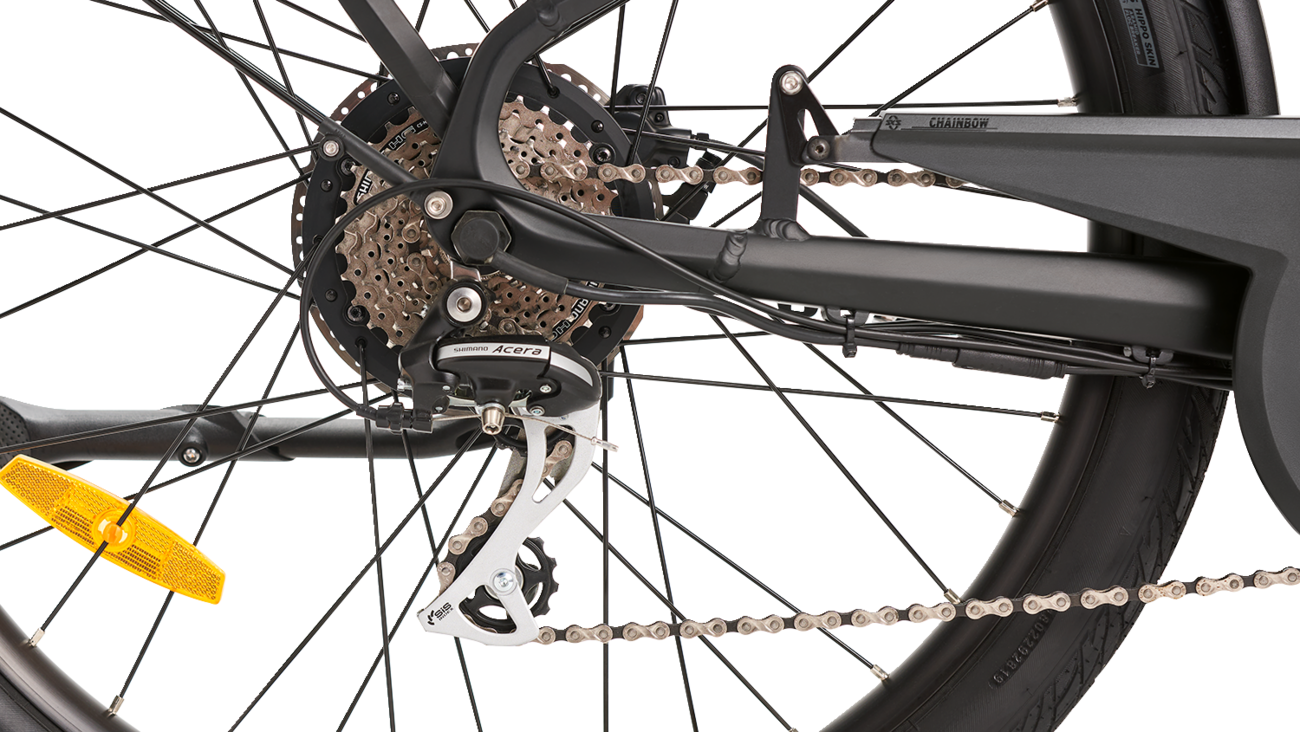

Rear Derailleur — SHIMANO ACERA 8-speed

Cassette — SHIMANO ACERA 8-speed 11-32T

Components

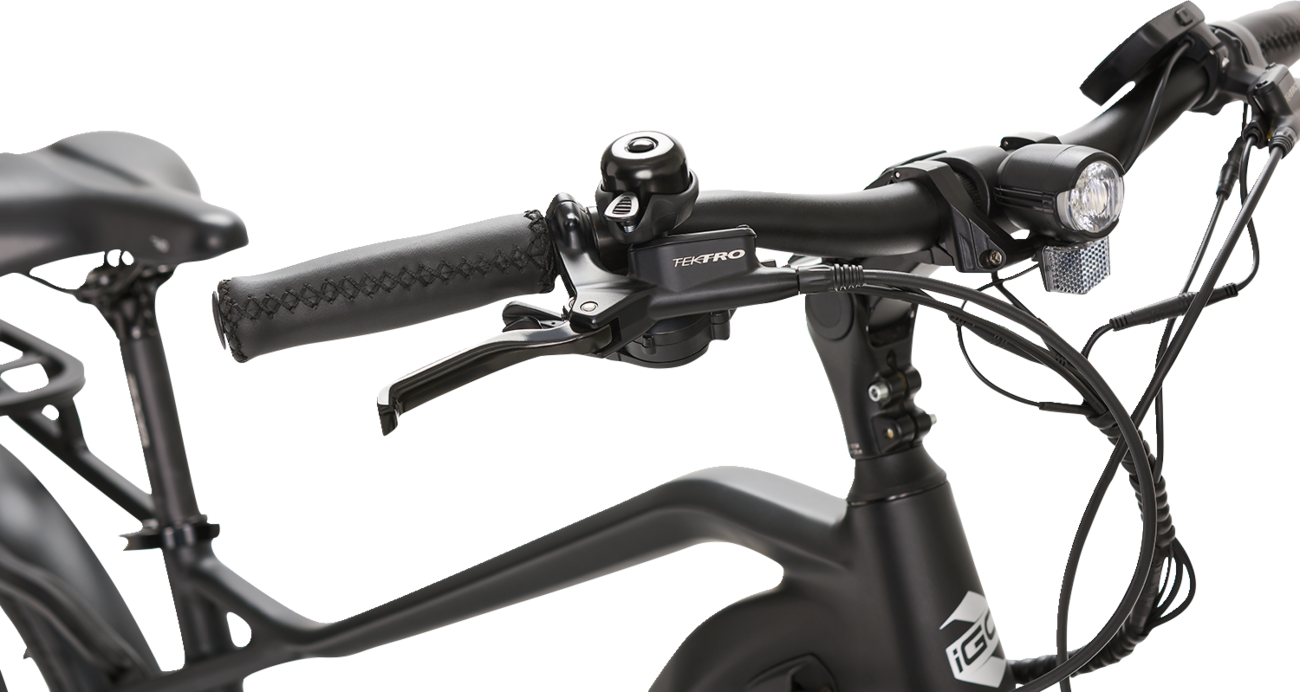

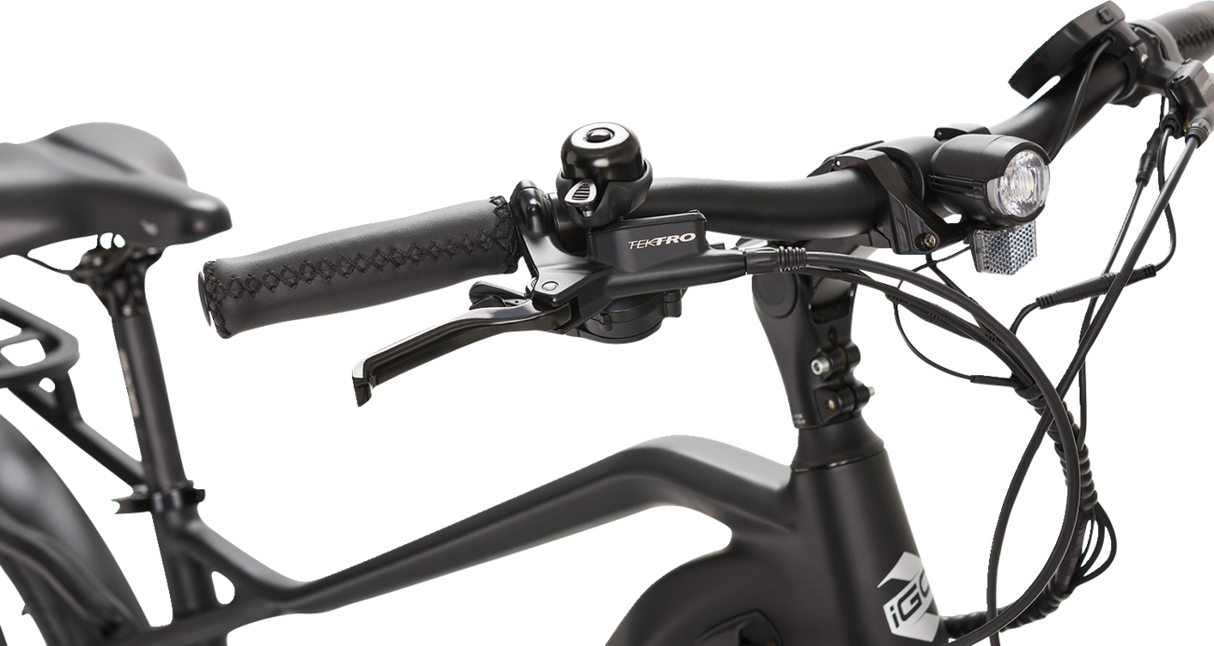

Handlebar — 630 mm, 21 mm rise, 31.8 mm diameter

Grips — VELO, Ergonomic, 135 mm

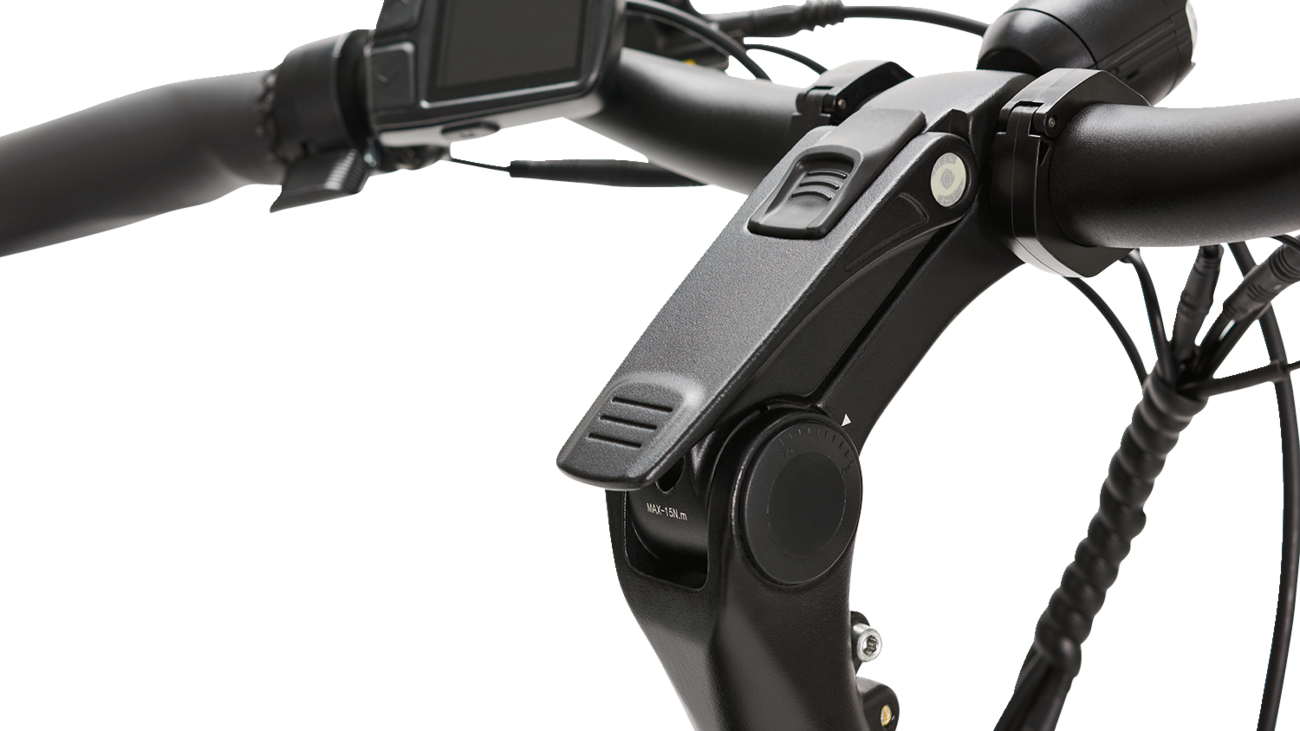

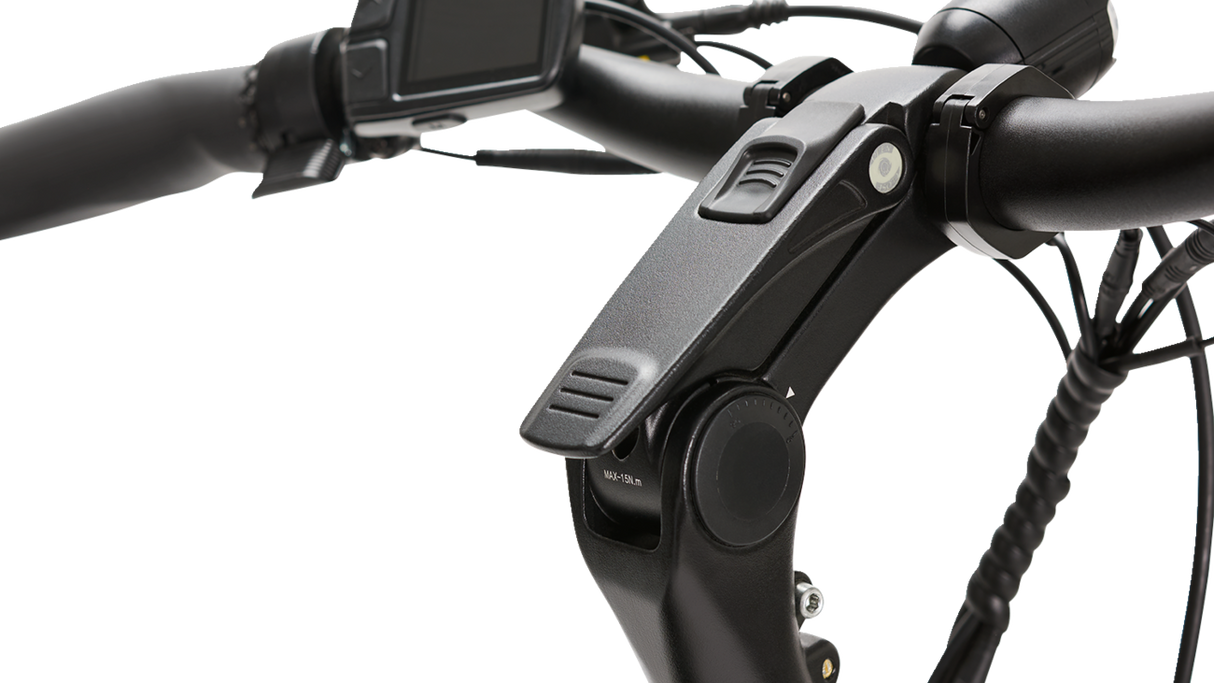

Stem — Toolless adjustable threadless with 0 to 90° rise

Seat Post — 31.6 mm (350 mm)

Saddle — SELLE ROYAL Rio

Brake Levers — TEKTRO HDE350 with power cut off switch

Brake Calipers — TEKTRO HDE350 Hydraulic Disc

Rotors — 180 mm

Wheels

Tires — CHAOYANG 27.5” x 2.4”

Rims — 27.5”, Dual Wall Alloy, black

Electric Technology

Bluetooth — iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts

Display Unit — 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

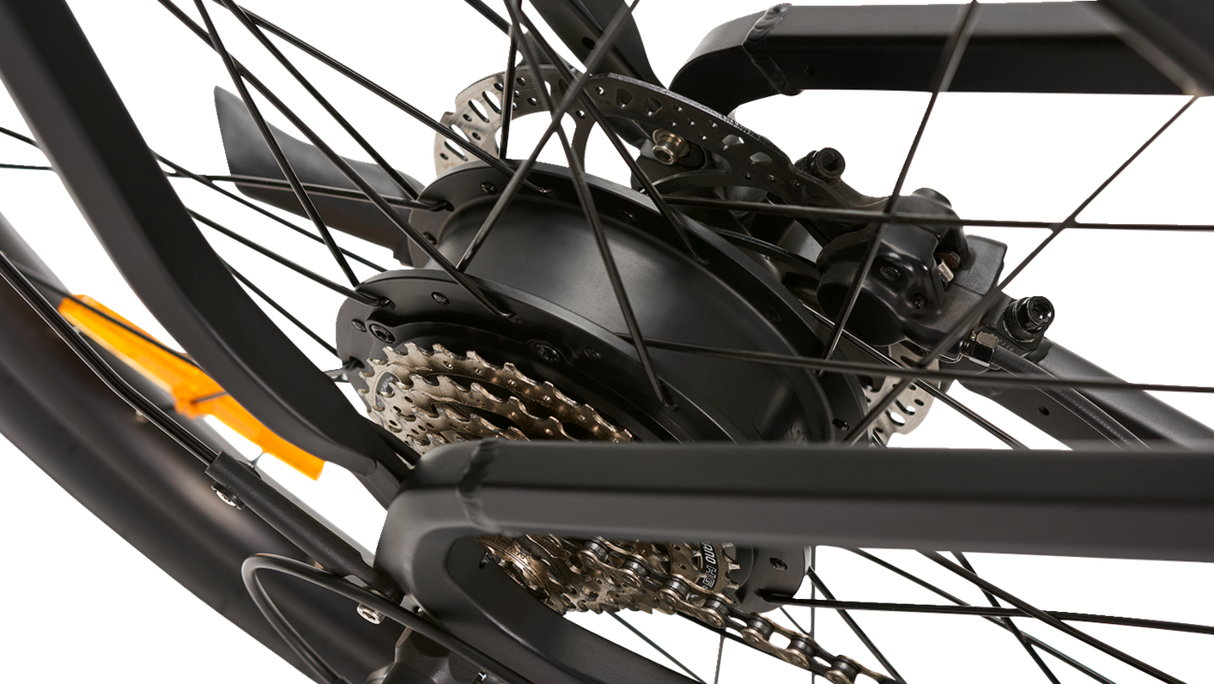

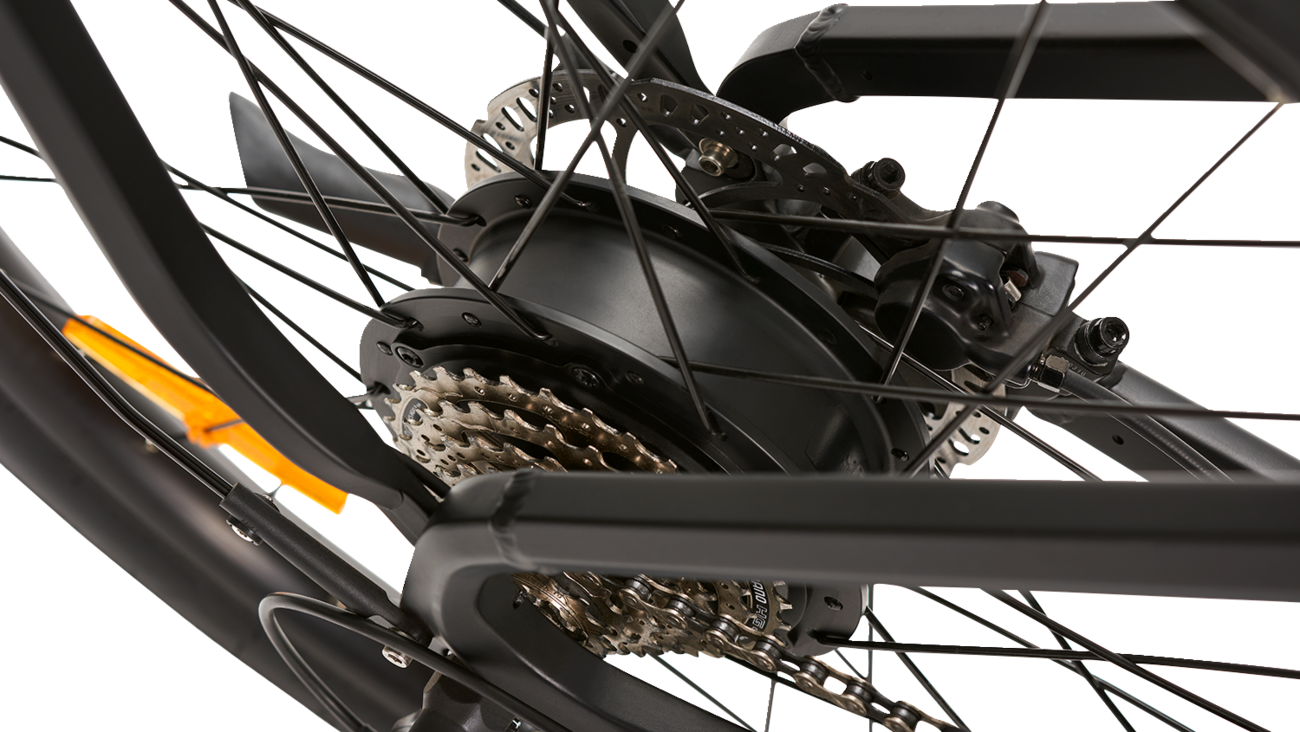

Motor — iGO DRIVE LE 500W geared rear hub motor, 48V

Torque — up to 55 Nm

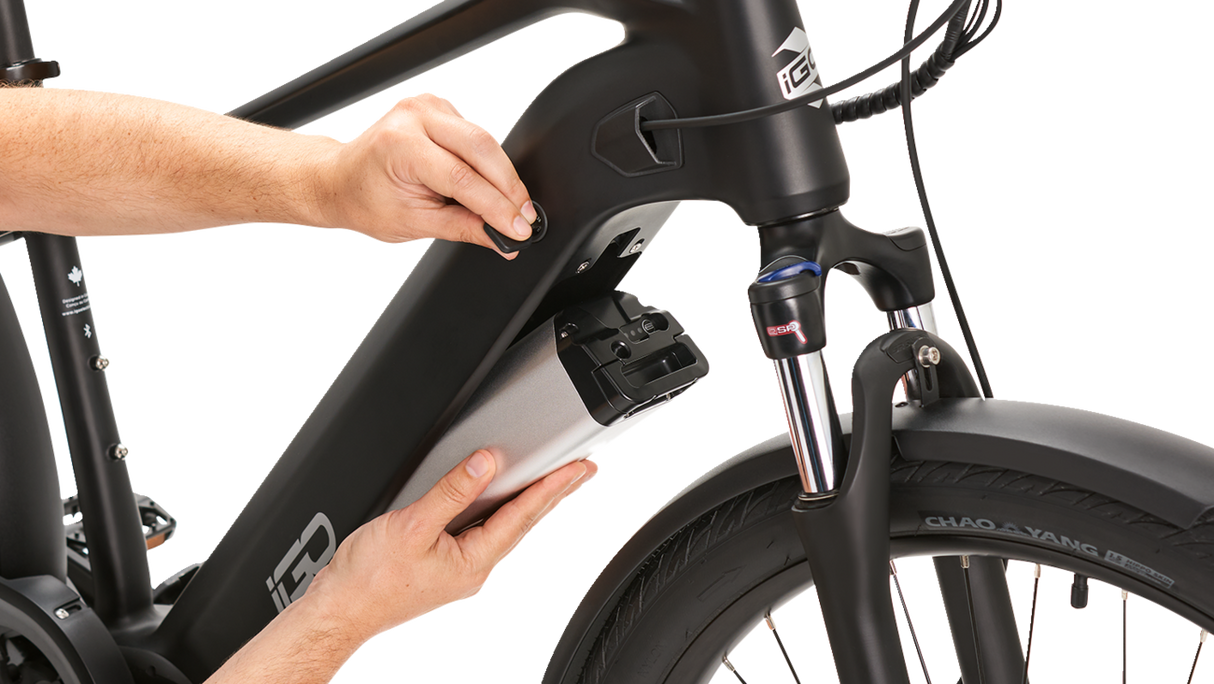

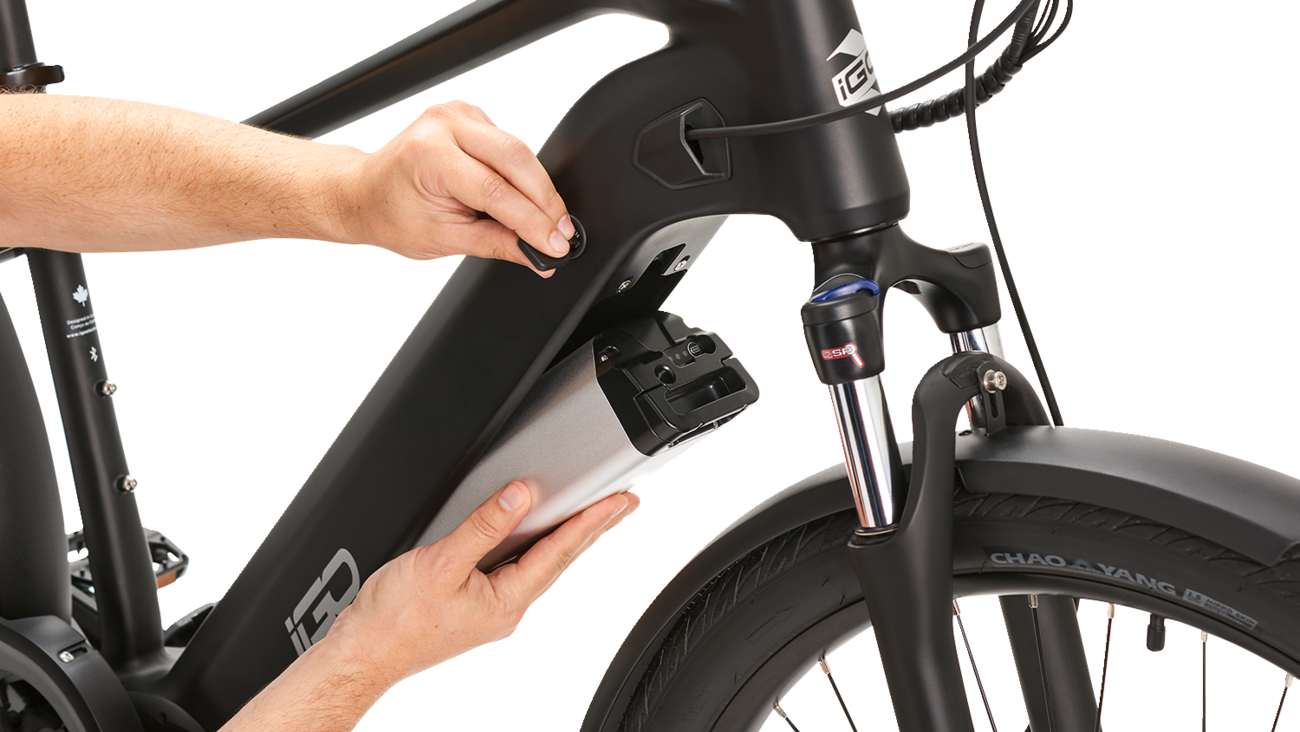

Battery — 5000mAh SAMSUNG cell, removable with security lock (48V | 15Ah | 720Wh)

Range — 69 mi*

Pedal Assist System — Eco/Tour/Sport/Turbo/Boost color coded per PAS level

Throttle — On-Demand, Removable

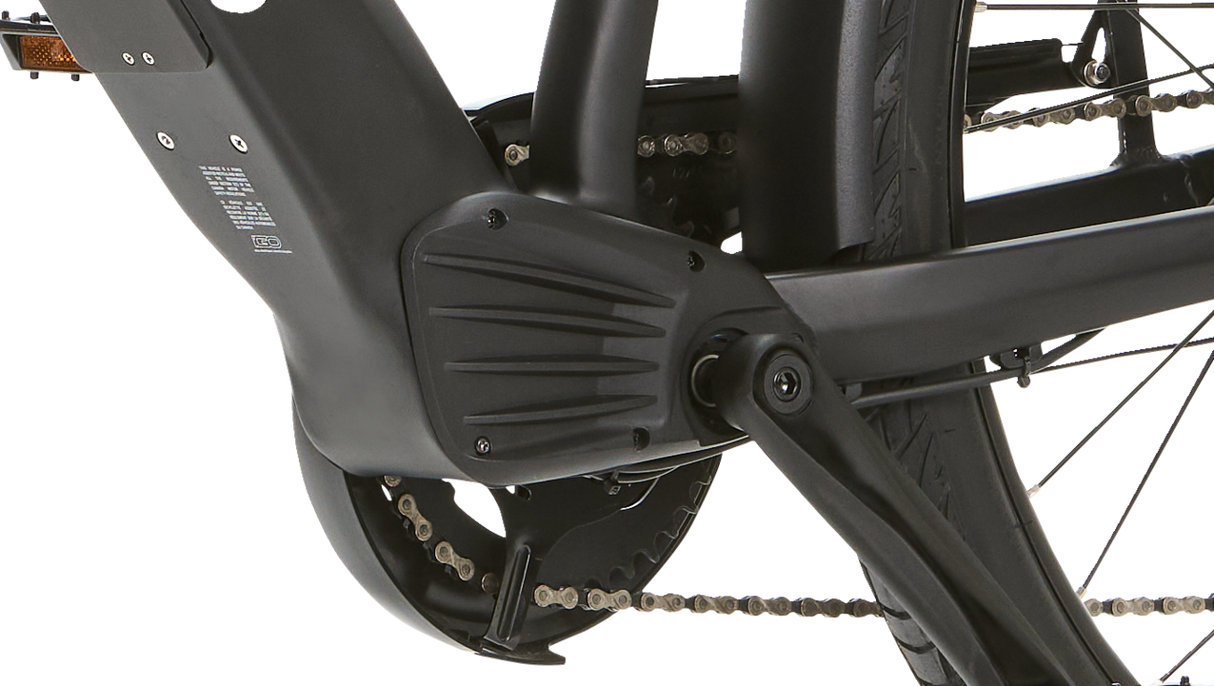

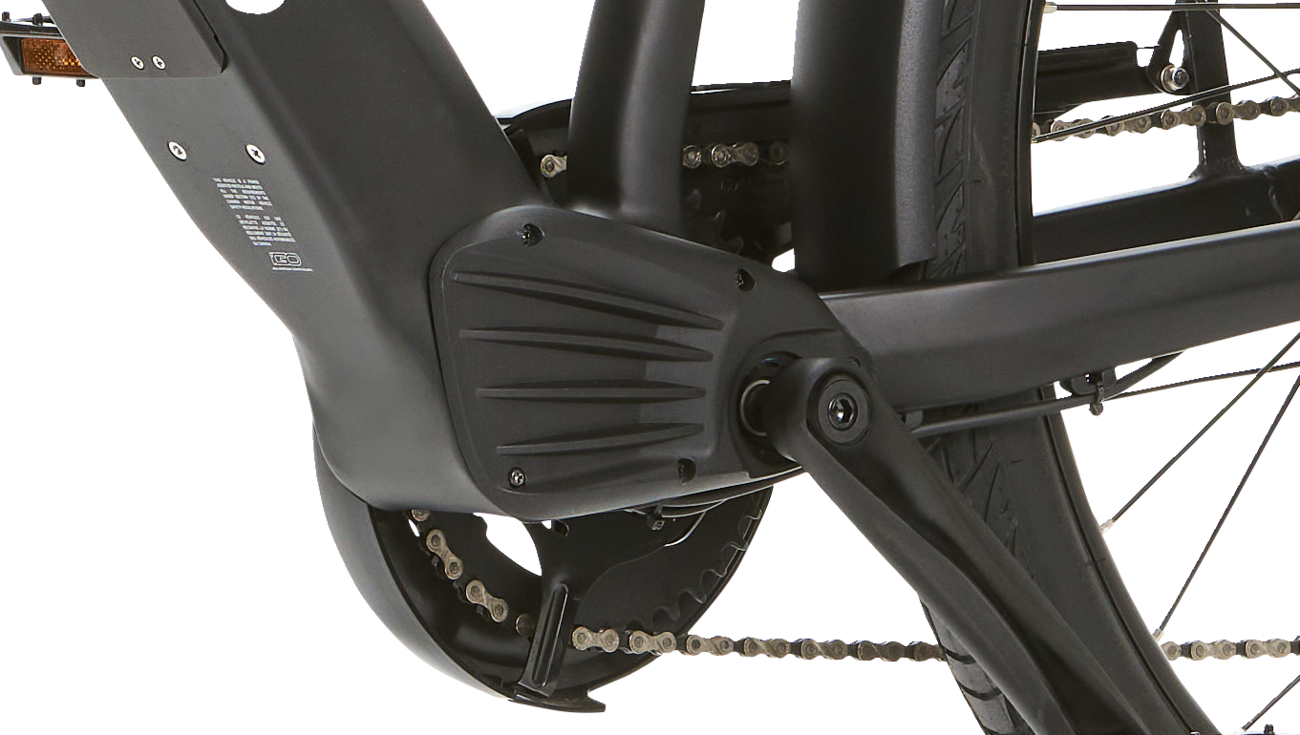

Sensor — Electronic 32 pulse Cadence Sensor integrated into the bottom bracket

Class — Class 2 Model, configurable to Class 1 or Class 3 capable where permitted**

Accessories Included

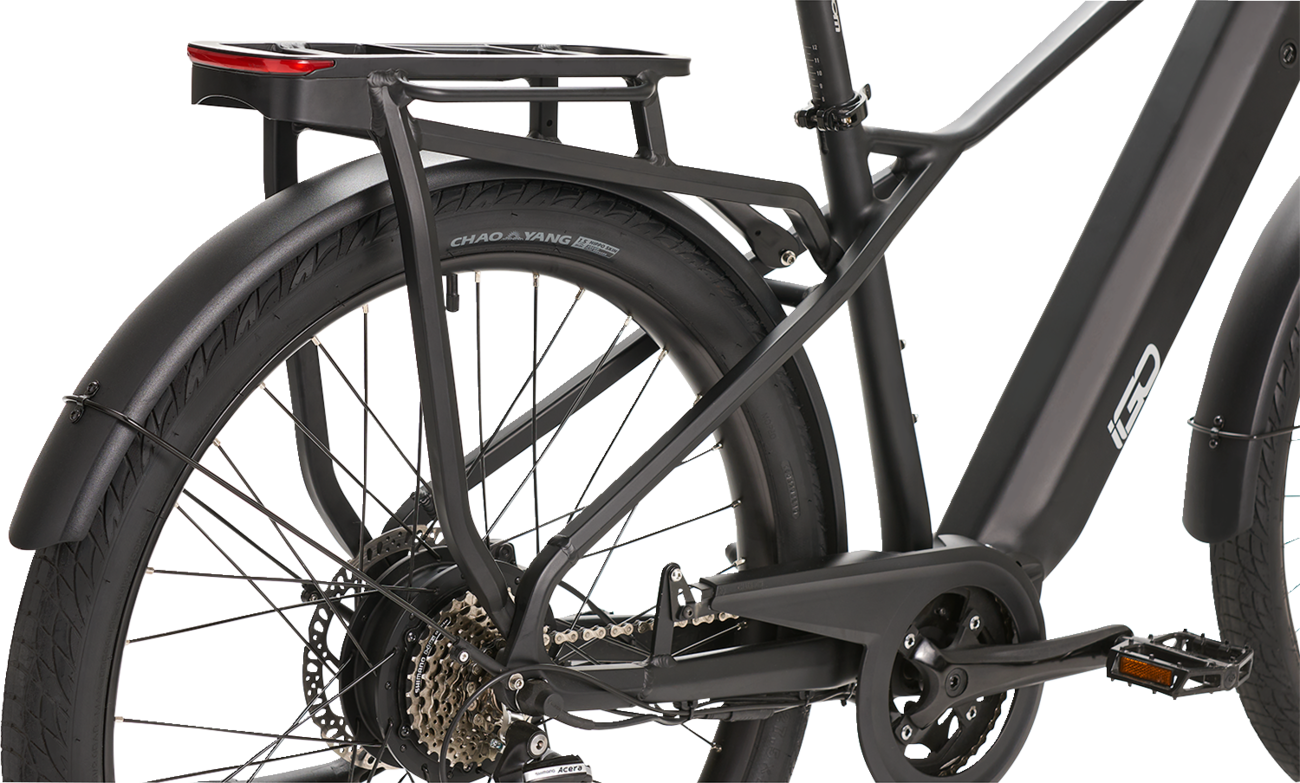

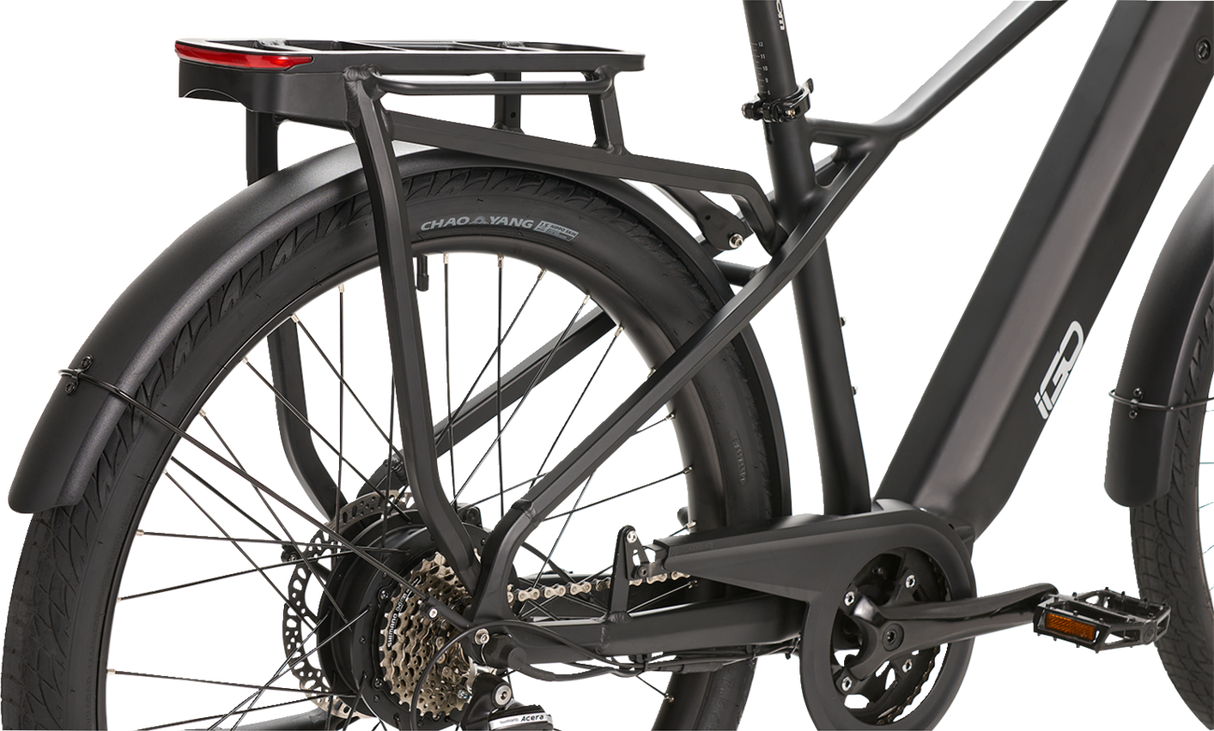

Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear, Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger

Notes

Battery Weight — 7.7 lb

Weight Capacity — 275 lb

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. Specifications subject to change.

**Class Regulations: Class 1 (Pedal assist motor with maximum assisted speed 20 mph, Class 2 (Pedal assist motor and throttle with maximum assisted speed 20 mph), Class 3 (Pedal assist motor with maximum assisted speed 28 mph. Throttle will work up to 20 mph).
