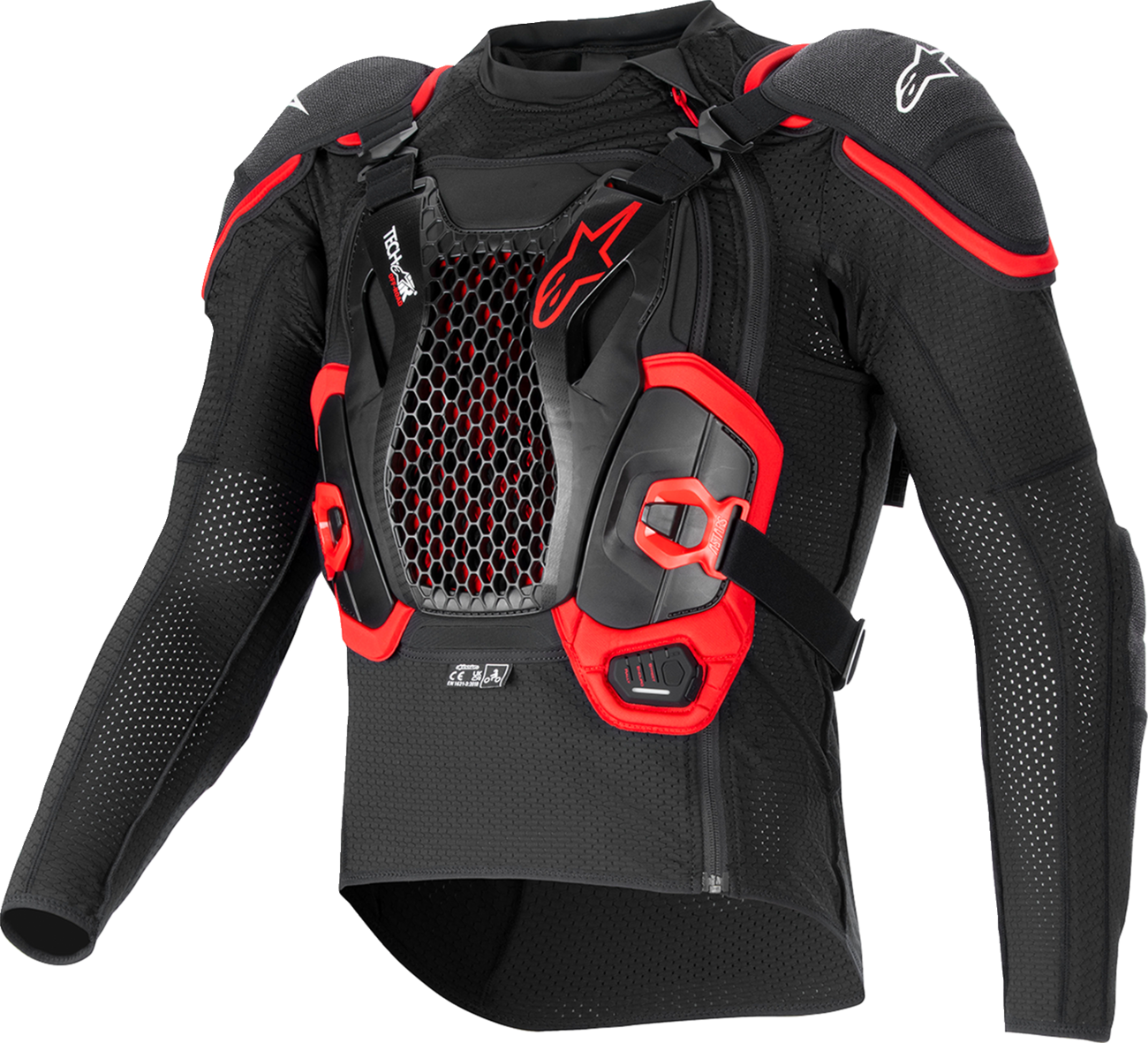

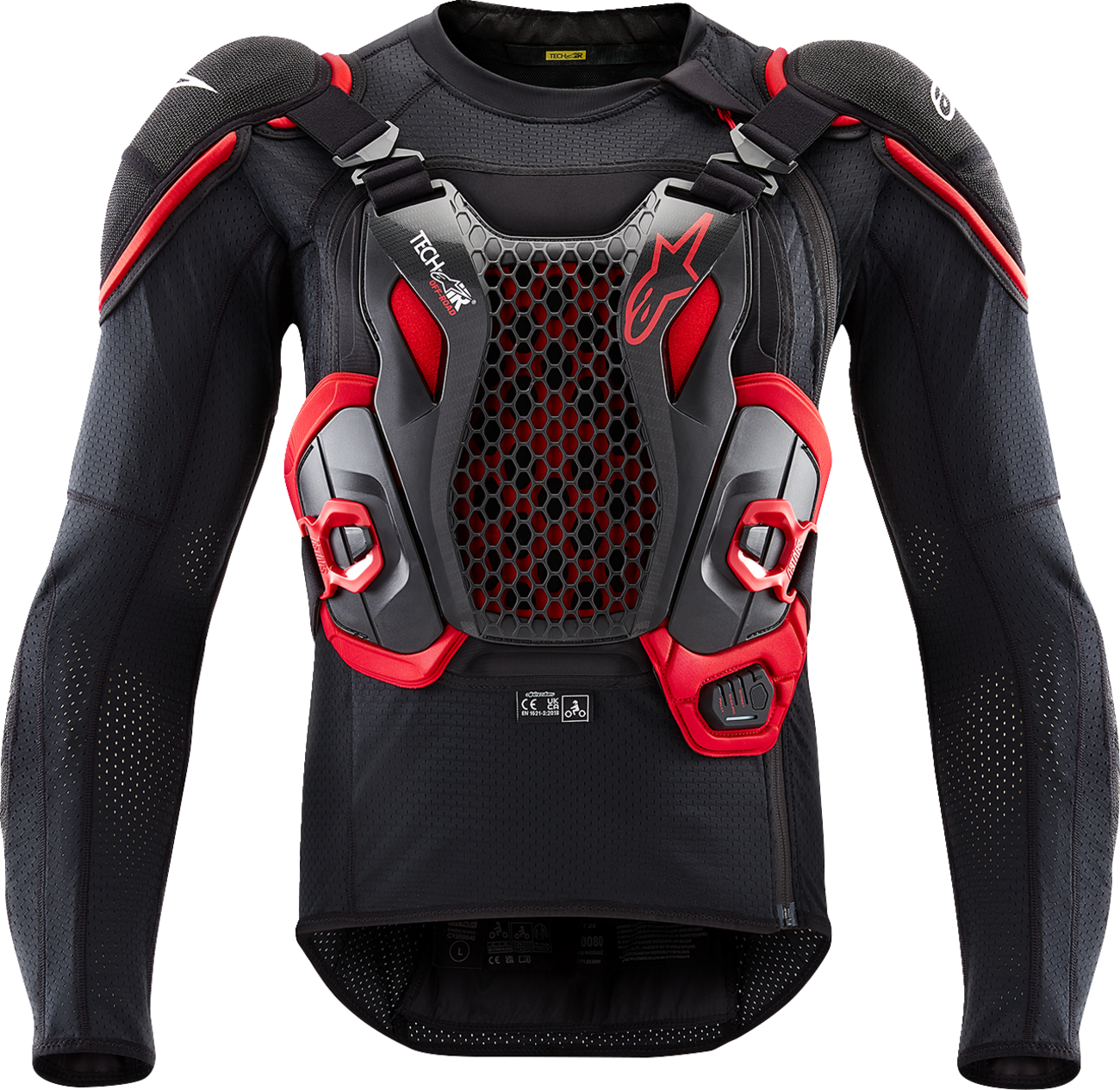

Tech-Air® Off-Road System - Black/Red - Medium

Tech-Air® Off-Road System, with the active airbag inflated, delivers full chest and full back protection, plus coverage to the shoulders, neck, and collarbones in the event of a crash

The system is integrated with an Alpinestars Off-Road Protection Jacket that is equipped with a passive full back and limb protection, integrated protection on the arms, and a passive full chest protector offering riders enhanced roost protection against rocks, debris, and other obstacles they may come into contact with on the trail

Built tough enough to tackle any terrain, the System comes pre-loaded with three Riding Modes: ENDURO, RALLY, and STREET, making it the a great choice for every type of off-road and street riding

Key Features

The Tech-Air® Off-Road System features dual charge capability which means that with two full gas inflators, the System provides two separate airbag deployments, since only one gas inflator will deploy to inflate the entire Airbag System during a crash scenario

A fully self-contained, standalone system; 3 accelerometers (1 triaxial accelerometer) and 3 gyroscopes (1 triaxial gyroscope) are integrated in the Electronic

Control Unit (ECU) to provide the best crash monitoring performance and active airbag protection in a variety of dynamic off-road riding scenarios

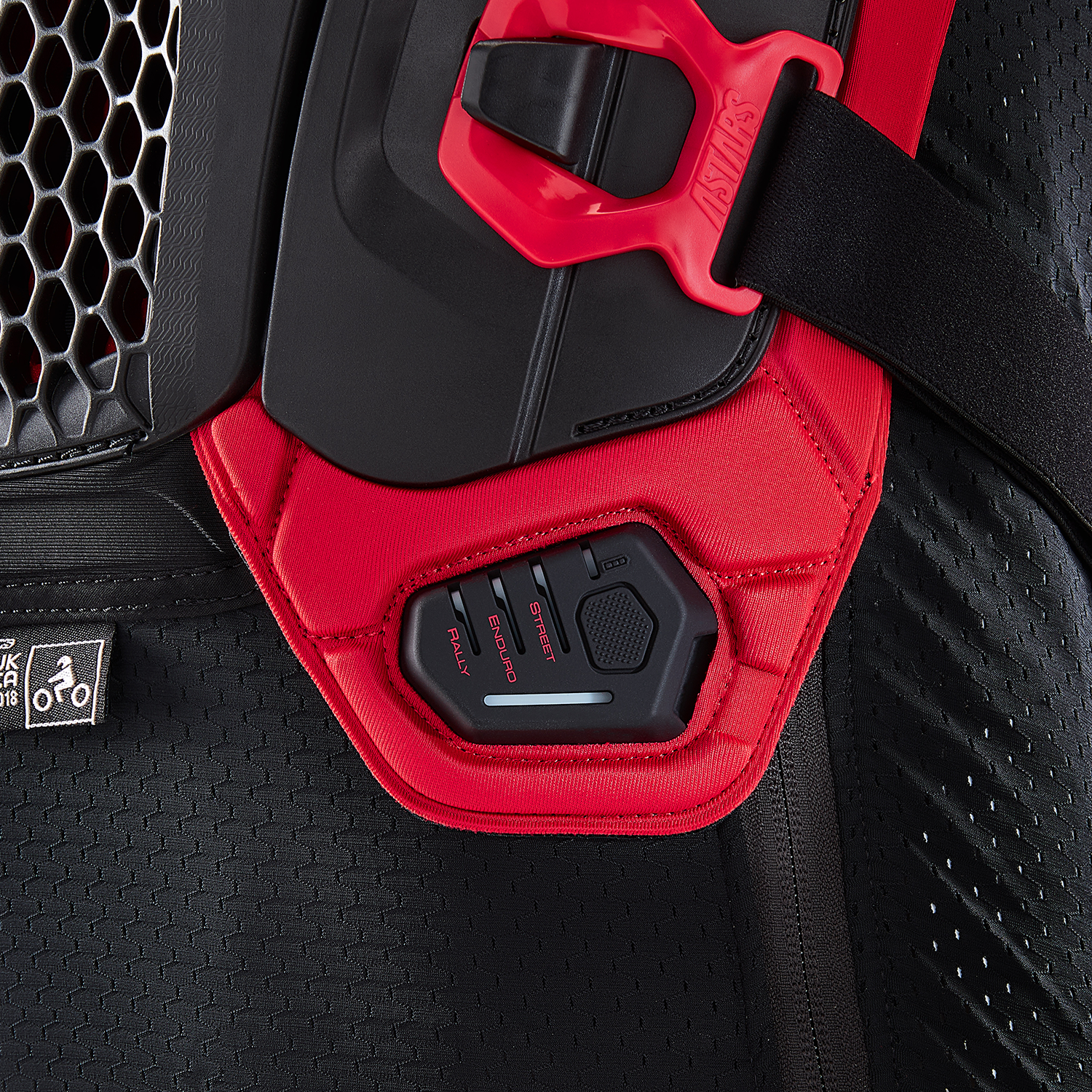

Riding Modes are easy to navigate while on the move via the LED Display located on the front of the System, or via the Tech-Air® App

Quick release cover opening allows for rapid gas inflator replacement by user, only available in countries where gas inflator replacement by individuals is permitted by local regulations

The Tech-Air® Off-Road System uses an integrated, certified lithium-ion battery, with a fully charged battery life of 30 hours and a recharge time of approximately 4 hours; charging the battery for approximately 1 hour will provide approximately 8 hours of riding time use

The LED Display features an integrated charging port for convenient and easy charging of the System; simply plug in the USB-C cable into the Recharge Port on the System’s LED Display and connect it to a power source

To deactivate the airbag, unzip the System and it will automatically turn off

The Tech-Air® Off-Road System’s Electronic Control Unit (ECU) and airbag are completely removable so that the Protection Jacket can be washed separately

Ease of use; to turn on the Tech-Air® Off-Road System, simply zip up the System and it will automatically turn on and activate the Airbag System

Shipping Mode

Only accessible once the Electronic Case on the back protector is removed, the Shipping Mode switch allows the battery to be disconnected from the System during transportation or when the System will not be in use for a prolonged period of time

A dedicated Shipping Mode slide switch is located on the ECU, which when turned on effectively puts the the System into sleep mode

The System is sold with the Shipping Mode turned on, make sure to turn the Shipping Mode off when you open the box and use the Airbag System for the first time

Protection

FIM Cross Country Rally Regulations Homologated for race use

Dual gas inflators deliver two airbag deployments for guaranteed protection

Average inflation time of 52 milliseconds (depending on the size of the airbag)

Airbag coverage on chest, back, shoulders, and neck provides upper body protection

Neck protection is provided by the airbag inflating around the neck in compliance with the FIM regulations

Proven to be more than twice as protective as passive impact protectors

The airbag has been fully certified for up to 4 airbag deployments before having to replace it, providing the airbag hasn’t been damaged in one of the first 3 deployments

Airbag System Tech Specs

Bluetooth connectivity to a Tech-Air® App means the System’s operational status, battery status and My Ride Trip recording can also be easily accessed on a mobile device, subject to network coverage

The Tech-Air® Off-Road System’s ECU is seal-protected within the vest to ensure all-weather performance and the vest and componentry are certified to function between -10°C and 50°C

Robust internal housing located in the built-in Nucleon CELL back protector accommodates the System ECU and gas inflators, allowing the Tech-Air® Off-Road System to be worn with any Alpinestars’ Tech-Air® Ready jacket, or any properly fitting motorcycling jacket

Users can easily update the System’s firmware when improved crash-detection algorithms are released via the Tech-Air® App

Protection Jacket Tech Specs

Constructed from a breathable stretch mesh for ventilation while keeping the protection close to the rider’s body

Premium materials combined with an innovative design and honeycomb Nucleon Cell technology create a passive protector that is ventilated, lightweight, ergonomic, and robust

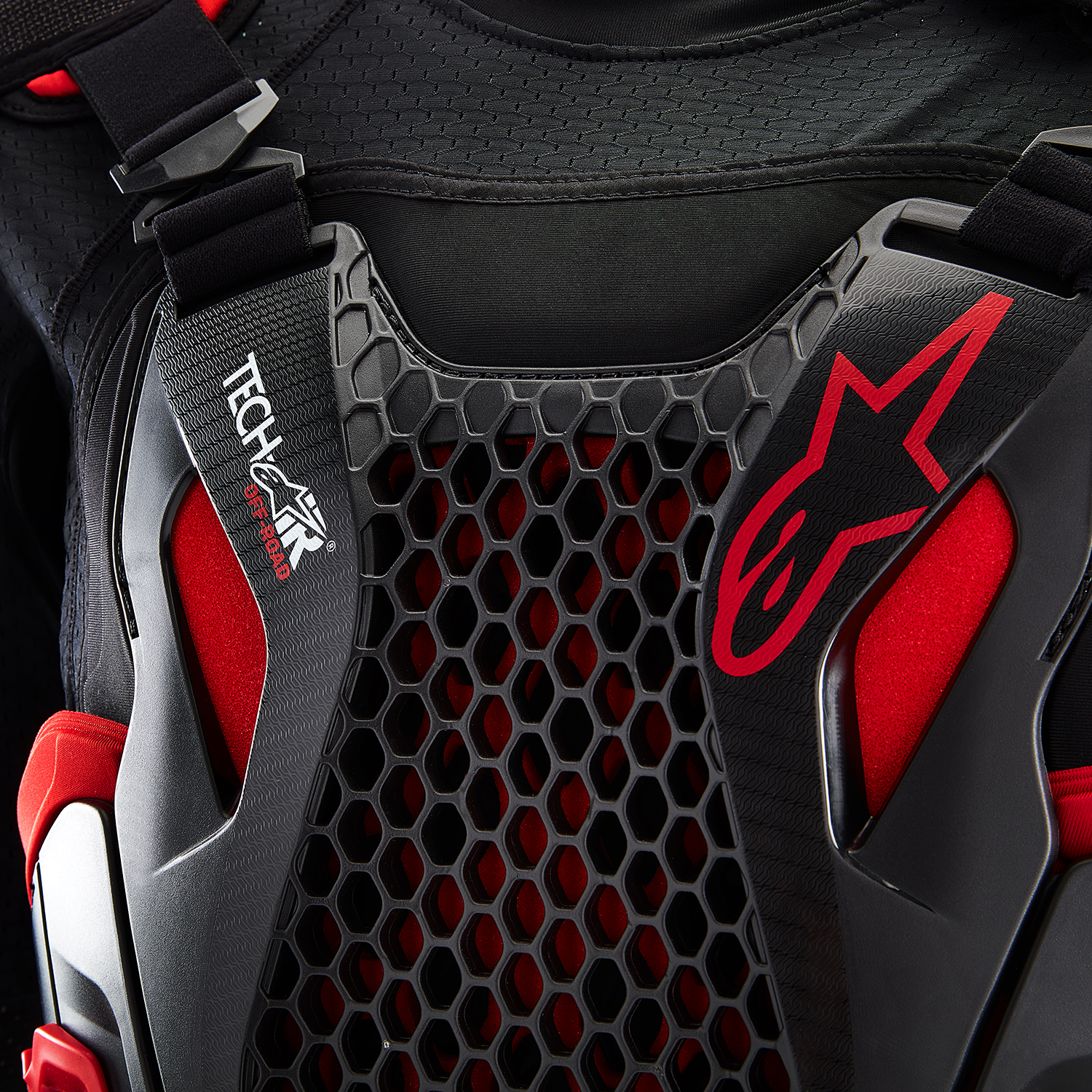

Both the chest and back protectors incorporate Nucleon CELL Technology which is light, flexible and highly ventilated for enhanced performance

Additional front padding on the arms and chest for enhanced roost protection

Slim fit stretchable fabric construction features a floating, ventilated, and flexible thermoformed chest protector for an optimal riding experience

Ergonomic design delivers rider comfort and freedom of movement

Lateral zipper for a better fit and ease of use, and which allows the jacket to provide complete front chest protection

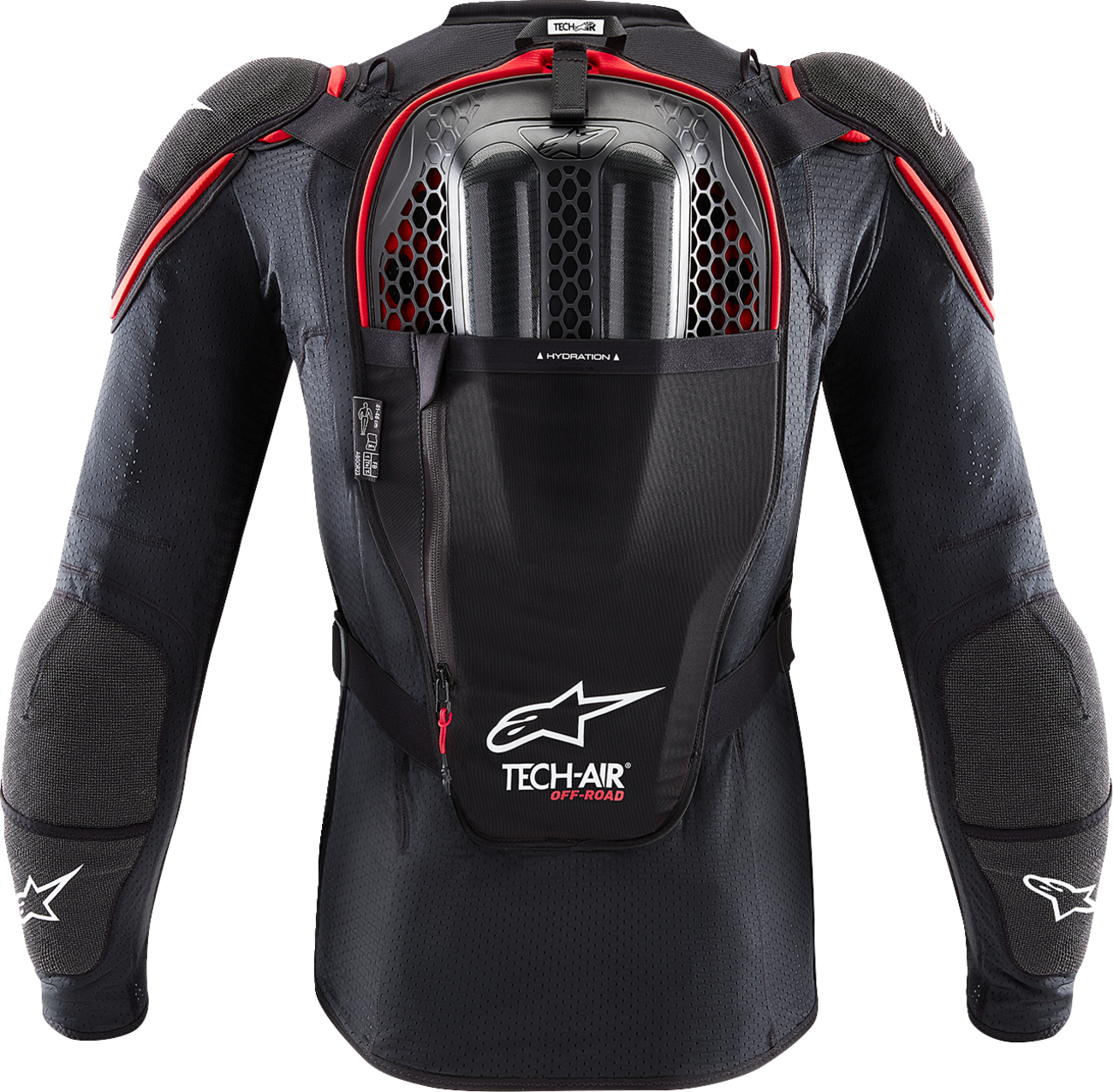

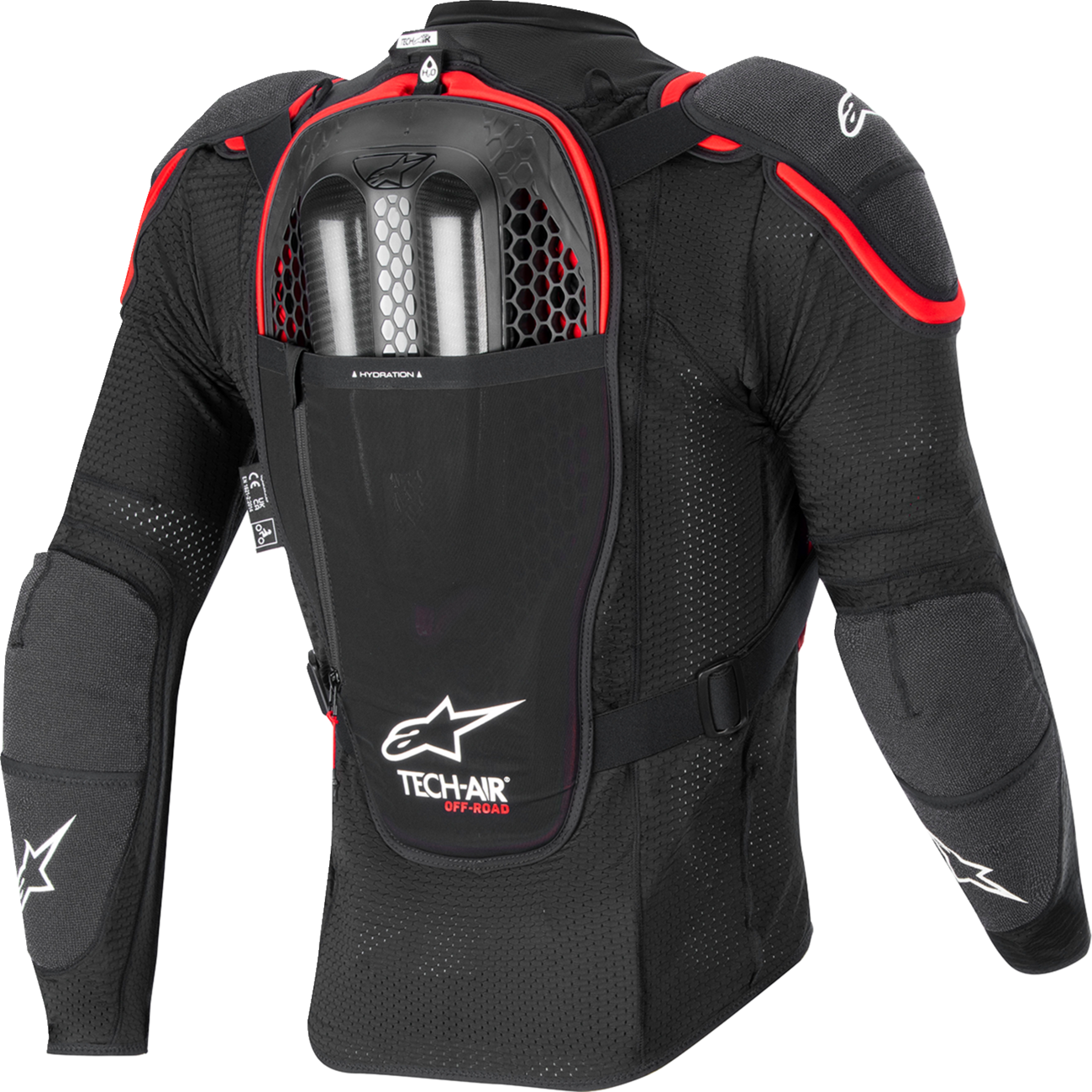

Water bladder compatible: back holder for a Hydration pack with 1.5-3 Liter capacity already included

Elbows protectors and shoulder protectors are replaceable

No external sensors are required for the system to operate.

Neck protectors are NOT compatible with Airbag Systems, accordingly the Tech-Air® Off-Road System is NOT compatible with the use of Alpinestars’ Bionic Neck Support (BNS) nor any other neck protections.
